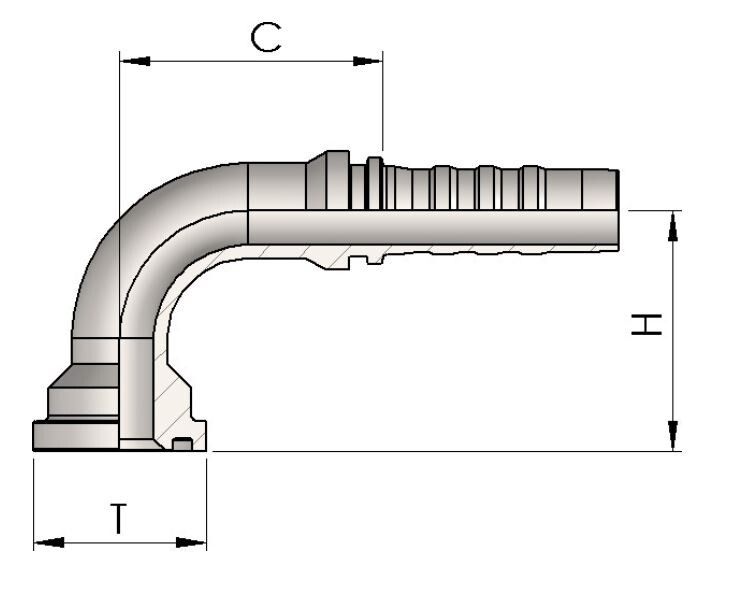

SAE flange 6000 - 90°

SAE flange 6000 - 90°

Vælg variant
VÆLG VARIANT
VÆLG VARIANT
Varenummer Beskrivelse Hose size Angle Hose coupling type
1100N20-16 1" Insert(No-Skive) - 1.1/4" SAE6000 flange - 90°-1100N16-20 1.1/4 " 90 ° For separate ferrule
4691N08-08 1/2" Insert (No-Skive) - 1/2" SAE6000 flange-90°-1100N08-08 1/2 " 90 ° For separate ferrule
4691N12-12 3/4" Insert (No-Skive) - 3/4" SAE6000 flange-90°-1100N12-12 3/4 " 90 ° For separate ferrule
4691N16-12 3/4" Insert (No-Skive) - 1" SAE6000 flange-90°-1100N12-12 3/4 " 90 ° For separate ferrule
4691N16-16 1" Insert (No-Skive) - 1" SAE6000 flange - 90° - 1100N16-16 1 " 90 ° For separate ferrule
4691N20-20 1.1/4" Insert (No-Skive) - 1.1/4" SAE6000 - 90°-1100N20-20 1.1/4 " 90 ° For separate ferrule
4691N24-20 1.1/4" Indstik (No-Skive) - 1.1/2" SAE6000 - 90°-1100N20-24 1.1/2 " 90 ° For separate ferrule
4691N24-24 1.1/2" Insert (No-Skive) - 1.1/2" SAE6000 - 90°-1100N24-24 1.1/2 " 90 ° For separate ferrule
Angle
90
Flange SAE/DIN
6000 PSI
Hose coupling type
For separate ferrule
