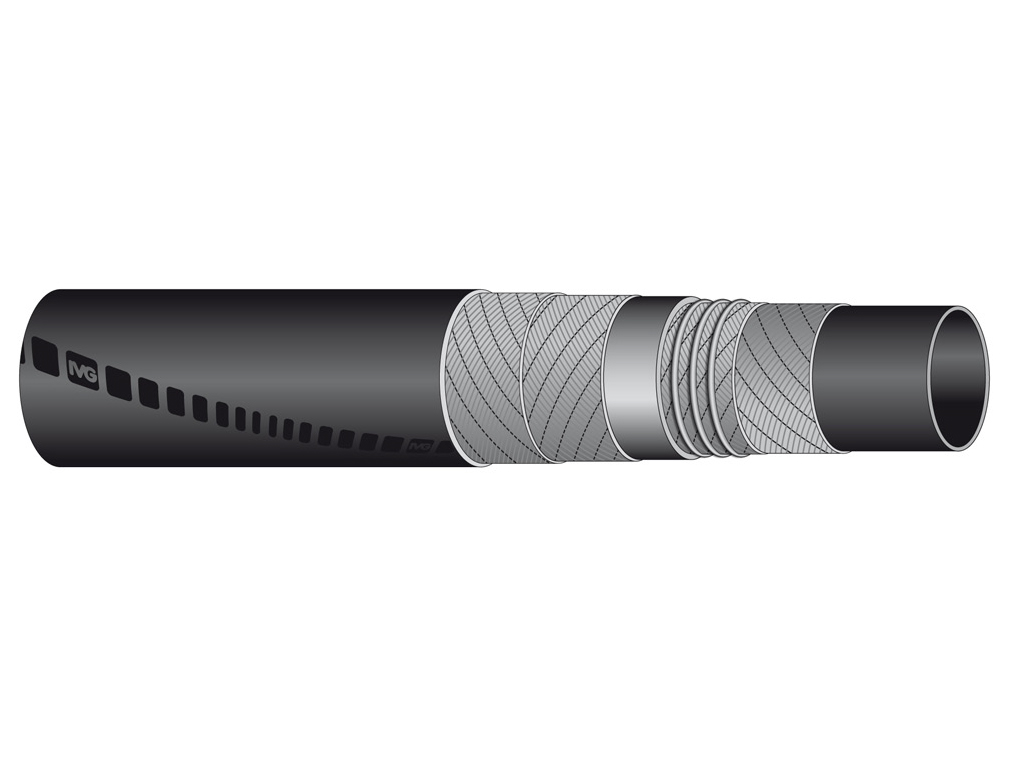

    Suction- and return line hose NBR - 602

    Select variant
    SELECT VARIANT
    SELECT VARIANT
    Partnumber Description Hose size Pressure max. Pressure burst min. Bend radius
    602-12 Suction and returnhose 3/4" - Type 602 WP 21 bar SAE100 R4 3/4 " 21 bar 84 bar 85 mm
    602-16 Sug och Returslang 1'' R4 25/35 1 " 17 bar 69 bar 100 mm
    602-20 Suction and returnhose 1.1/4" - Type 602 WP 14 bar SAE100 R4 1.1/4 " 14 bar 55 bar 130 mm
    602-22X32 Sug och Returslang 22mm' R4 22/32 18 bar 72 bar 100 mm
    602-24 Sug och Returslang 1.1/2'' R4 38/48.5 1.1/2 " 10 bar 41 bar 165 mm
    602-28X38 Suction and return hose 28x38 17 bar 69 bar 190 mm
    602-32 602-32 (diam. 51 x 63,5) (955258) 2 " 7 bar 28 bar 190 mm
    602-35X46 Sug och Returslang 35mm R4 35/46 10 bar 40 bar 165 mm
    602-40 602-40 (diam. 63,5 x 76,5) 2.1/2 " 4 bar 17 bar 355 mm
    602-40X52 Sug och Returslang 40mm R4 40/51 10 bar 40 bar 190 mm
    602-42X53 Sug och Returslang 42mm R4 42/53 8 bar 32 bar 190 mm
    602-45X56 Sug och Returslang 45mm R4 45/56 7 bar 28 bar 190 mm
    602-48 Sug och Returslang 3'' R4 76/89 3 " 4 bar 15 bar 455 mm
    602-58X71 Sug och Returslang 58mm R4 58/71 4 bar 16 bar 335 mm
    Area of use
    Air, Diesel, Grease, Oil, Water
    Brand Name
    Hydraspecma
    Color
    Black
    Reinforcement
    Synthetic fiber and a helical steel wire
    Standard SAE
    SAE 100R4, SAE J517
    Temperature max.
    +100
    Temperature min.
    -40
    Tube
    NBR (Nitrile)
    Vacuum max.
    0.9
