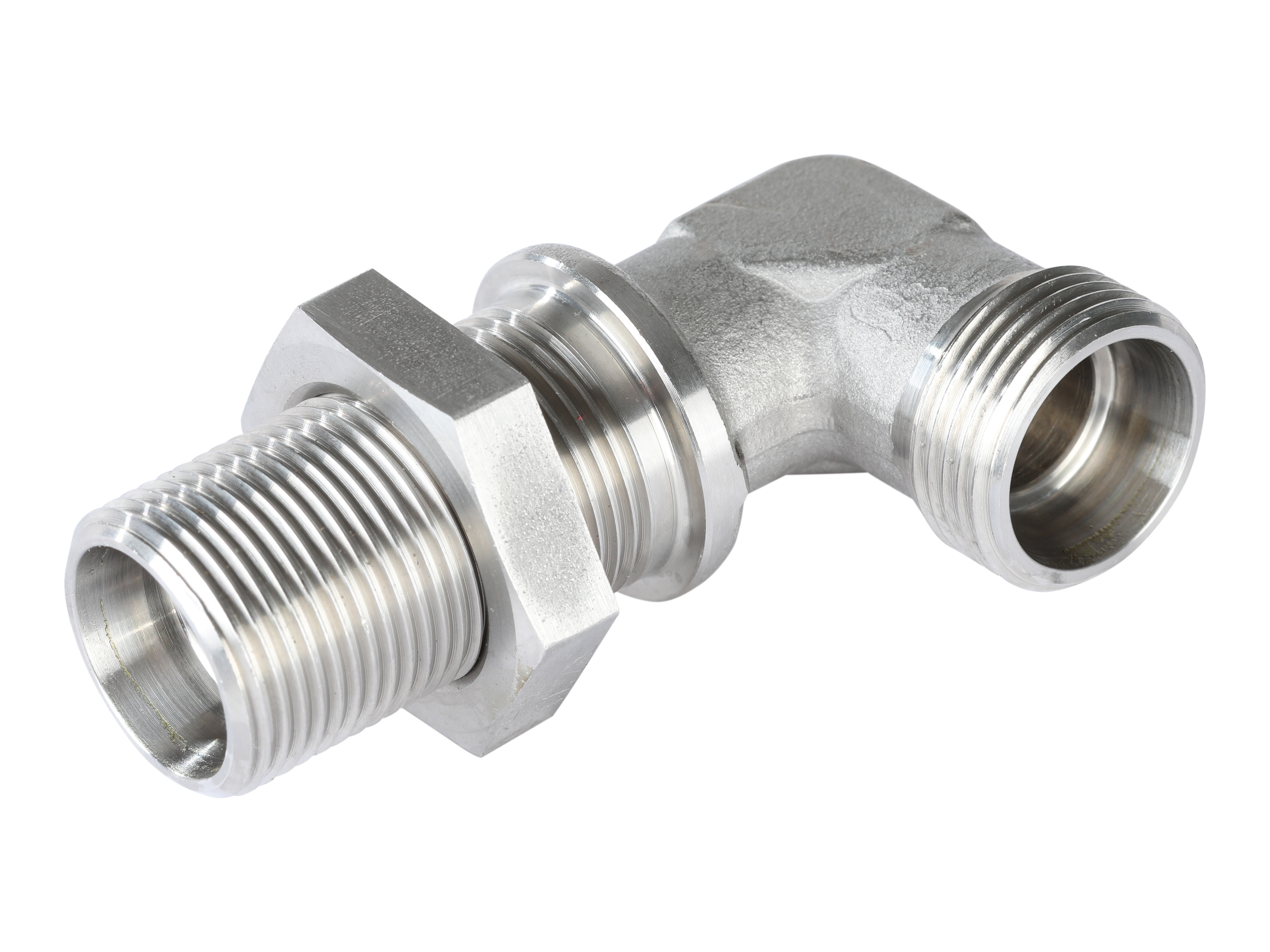

Bulkhead elbow 90° - ø12S - w. counter nut - AISI316
Temperature/Pressure reduction:
-60°C° - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
NOTE! for gas application temperature range is -20°C - +60°C
Partnumber:
XWSV12S-SY
Package size:
1 st
Min. order quantity is:
1 st

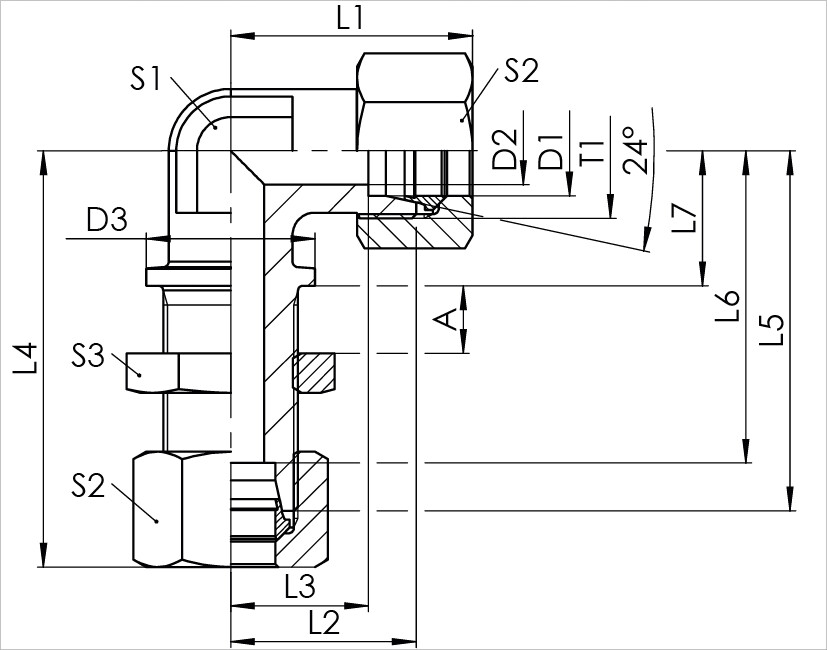

D1
12 mm
D2
8 mm
D3
27 mm
Diameter rör
12 mm
Gevind T
M20x1,5
Gänga 1 metrisk
M20x1,5
Gänga utv. metrisk
M20x1,5
L1
38 mm
L2
29 mm
L3
21,5 mm
L4
68 mm
L5
59 mm
L6
51,5 mm
L7
21 mm
Materialkvalitet
1.4571 / AISI316Ti
Modell kod
XWSV 12S
Märke namn
Volz
PN
630 bar
S1
17 mm
S2
24 mm
S3
27 mm
Serie
S
Säkerhetsfaktor
4
T1
M20x1,5
Temperatur max.
+400 °C
Temperatur min.
-60 °C
Tillverkningsmaterial
Acid-resistant steel
Tryck max.
630 bar
Vinkel
90 °
Ytskiktbehandling
Uncoated
d1
12 mm
d2
8 mm
Package size
1 st
Barcode
365255
Gross weight
Kg
Net weight
Kg
Country of origin
DEU
Intrastat code
73072910
Temperature/Pressure reduction:
-60°C° - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
NOTE! for gas application temperature range is -20°C - +60°C
