Welding elbow fitting - ø8L - AISI316
Temperature/pressure reduction:
-60°C - +20°C = 0%.
+20°C - +50°C = 4.5%.
+50° C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300 °C - +400°C = 33%.
Partnumber:
XAS08L-SY
Package size:
25 st
Min. order quantity is:
1 st
Angle
0 °
Brand Name
Volz
Diameter pipe
8 mm

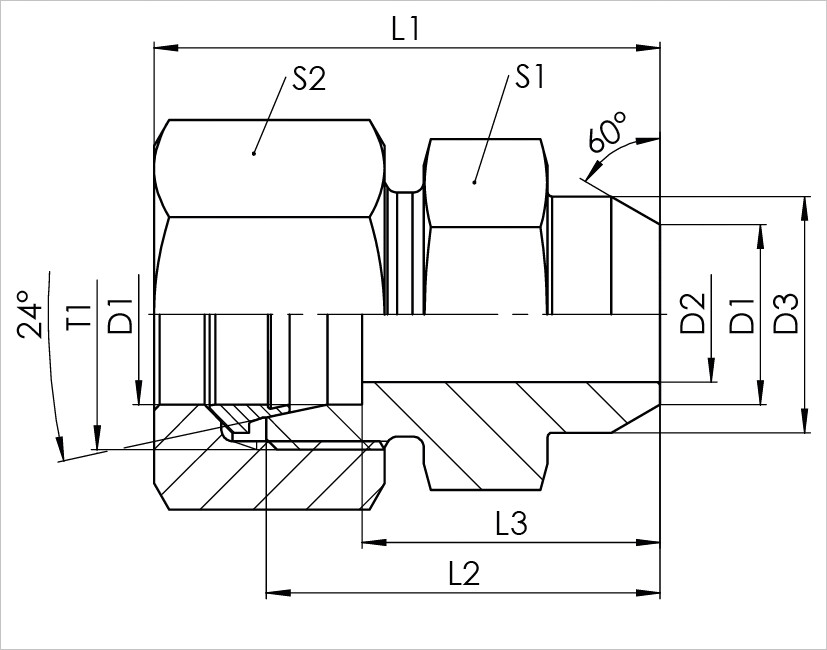

Dimension D1
8 mm
Dimension D2
6 mm
Dimension D3
12 mm
Dimension L1
31 mm
Dimension L2
23 mm
Dimension L3
16 mm
Dimension S1
14 mm
Dimension S2
17 mm
Material
Acid-resistant steel
Material quality
1.4571 / AISI316Ti
Model code
XGASV 08 L
Pressure max.
500 bar
Safety factor
4
Series
L
Temperature max.
+400 °C
Temperature min.
-60 °C
Thread T
M14x1,5
Thread outer metric
M14x1,5
Package size
25 st
Barcode
383528
Gross weight
0,02 Kg
Net weight
0,02 Kg
Country of origin
DEU
Intrastat code
73072910
Temperature/pressure reduction:
-60°C - +20°C = 0%.
+20°C - +50°C = 4.5%.
+50° C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300 °C - +400°C = 33%.
Note: Opening 3D files requires a program that supports the file format
