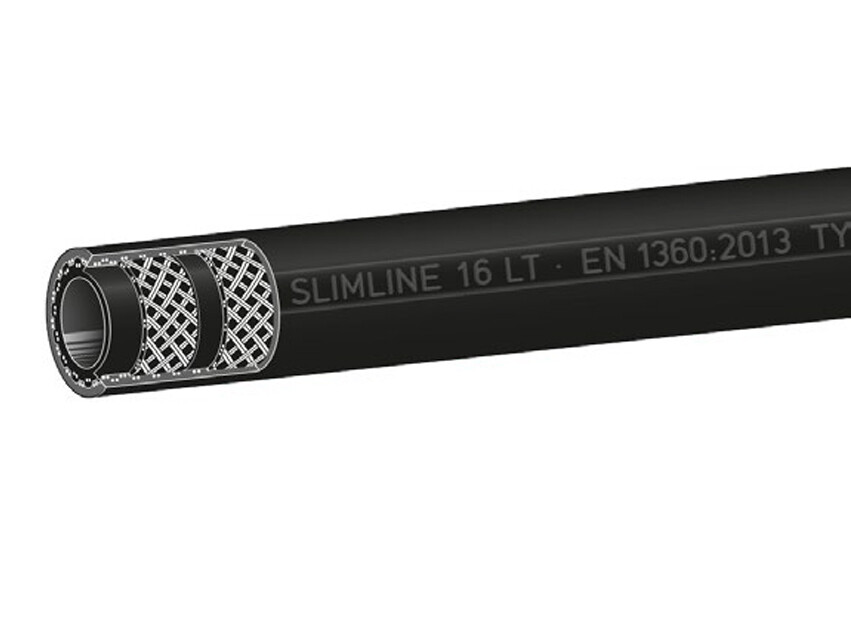

Bränslepumpslang 3/4'' Lågtemperatur 19/31

Bränslepumpslang 3/4'' Lågtemperatur 19/31, 19X6

Varenummer:

SL19LT

Pakke str.:

40 m

Min. bestillingsenhed er:

1 m

Tilbehør (6)

Elaflex brass coupling type M.

Artikelnummer: 0206080016

Elaflex brass coupling type M. Dim. M 19 - 1"

Artikelnummer: 0206080018

Elaflex brass coupling type V. Dim. V 19 - 3/4"

Artikelnummer: 0206120014

0206120018 - Bränslekoppling Utv-G1'' - Slang 19/31

Artikelnummer: 0206120018

4007-12 - Presshylsa 4007 3/4'', Skalfri

Artikelnummer: 4007-12

BA-033 - Hylsa i stål ID=33.5

Artikelnummer: BA-033

Specifikationer
Dimensioner och frakt

Area of use

Biodiesel 30% B30, Diesel, Ethanol E85, Gasoline

Bend radius

90 mm

Brand Name

Elaflex

Color

Black

Diameter inner

19 mm

Diameter outer

30 mm

Electrically conductive

R < 10^6 Ohm

Hose size

3/4 "

Material

NBR

Pressure max.

16 bar

Pressure test

25 bar

Standard EN

EN 13483, EN 1360 Type 1

Temperature max.

+80 °C

Temperature min.

-40 °C

Förpackningsstorlek

40 m

Streckkod

296582

Bruttovikt

Nettovikt

Ursprungsland

swe

Produktinformation

Bränslepumpslang 3/4'' Lågtemperatur 19/31, 19X6
