PLP20.8S0-95B6-LBE/BC-N-EL Polaris pump, Casappa

Casappa Polaris gr.2 gear wheel pump with flange and shaft for mounting as rear pump in multipump setup or on appropiate mounting flange.

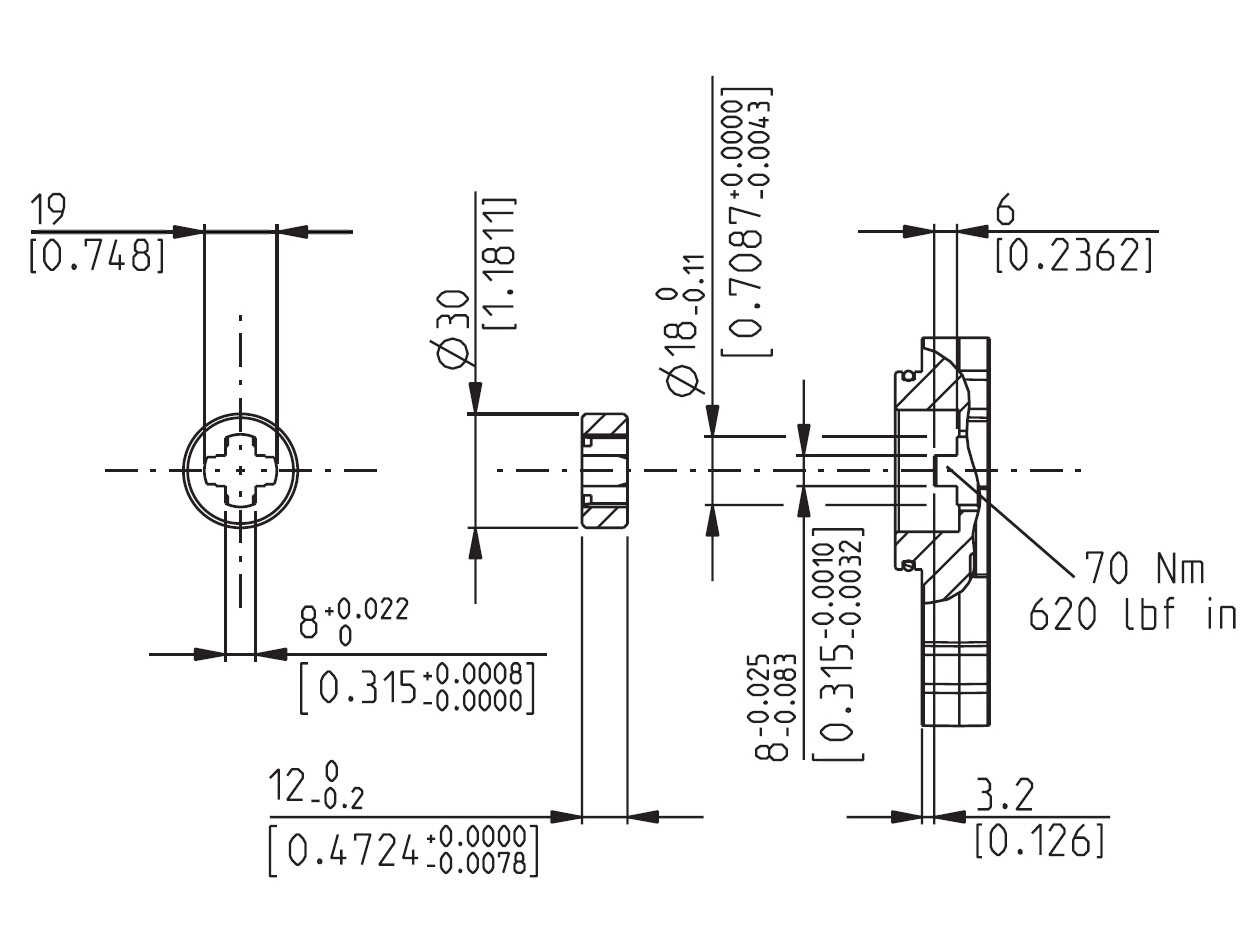

Shaft: Tang shaft, 8 x 19 mm.

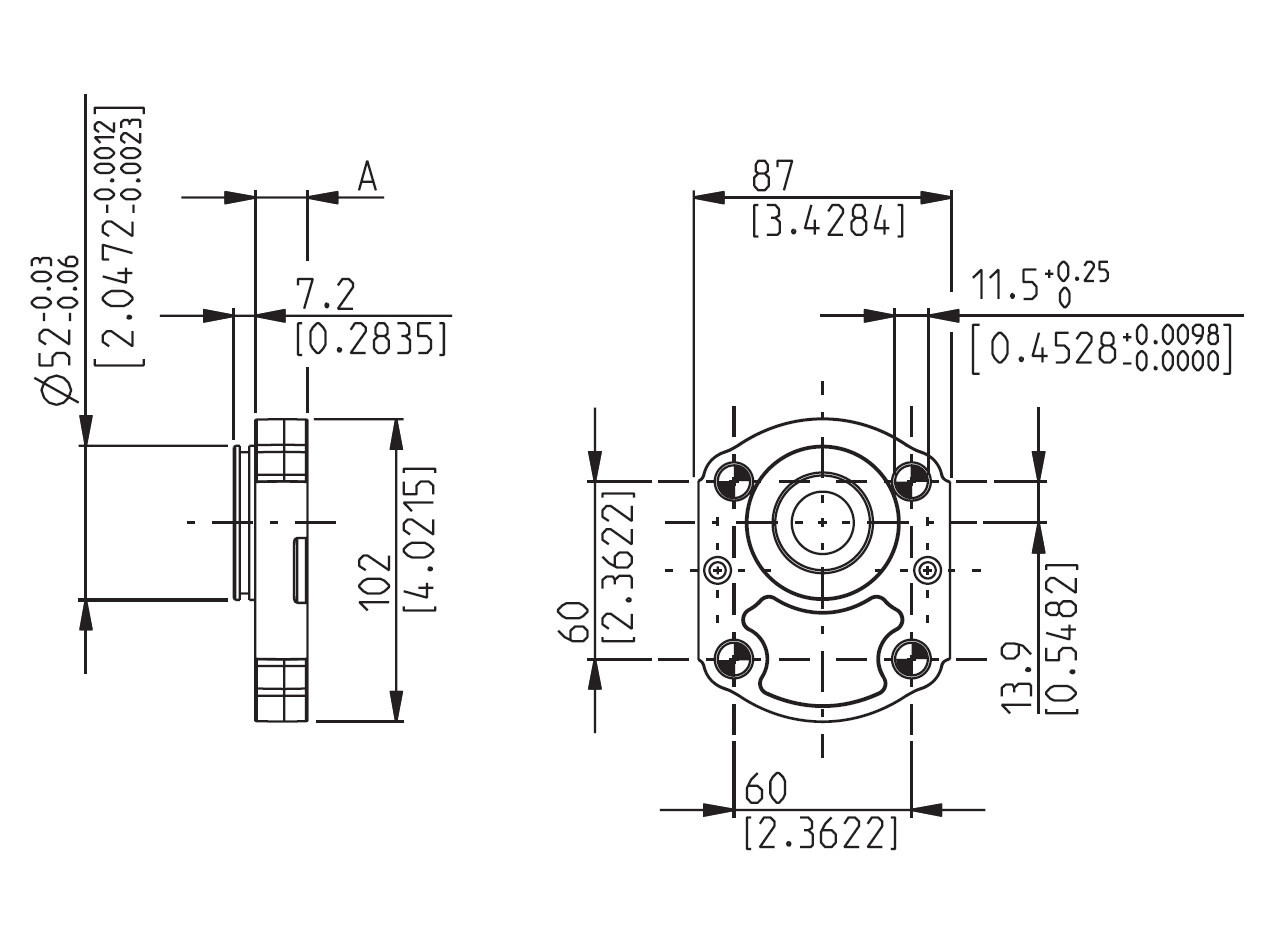

Flange (B6): German standard with O-ring. Mounting bolts dist.: 60 x 60 mm. Mounting bolts are supplied with the pump.

Connections: Side ports. Connection flanges must be ordered separately.

Partnumber:
PLP20.8S0-95B6-LBE/BC-N-EL

Package size:
1 st

Min. order quantity is:
1 st
F2-012-M
Partnumber: F2M
Brand Name
Casappa

Contamination level max.
19/17/14 - ISO 4406

Displacement
8.26 cm3

Model code
PLP20.8S0-95B6-LBE/BC-N-EL

Mounting flange
GER50-4

Number of mounting holes
4

Oil viscocity recommended
12 - 100 cSt

Port inlet
GE40

Port outlet
GE35

Pressure continous max.
250 bar

Pressure intermittent max.
280 bar

Pump group
2

Recess
50,0 mm

Rotation direction
Left (CCW)

Rotational speed max.
3500 rpm

Shaft type
Tang

Torque input
7 daNm
Package size
1 st

Barcode
238655

Gross weight
2,33 Kg

Net weight
2,33 Kg

Country of origin
ITA

Intrastat code
84136031

Casappa Polaris gr.2 gear wheel pump with flange and shaft for mounting as rear pump in multipump setup or on appropiate mounting flange.

Shaft: Tang shaft, 8 x 19 mm.

Flange (B6): German standard with O-ring. Mounting bolts dist.: 60 x 60 mm. Mounting bolts are supplied with the pump.

Connections: Side ports. Connection flanges must be ordered separately.
