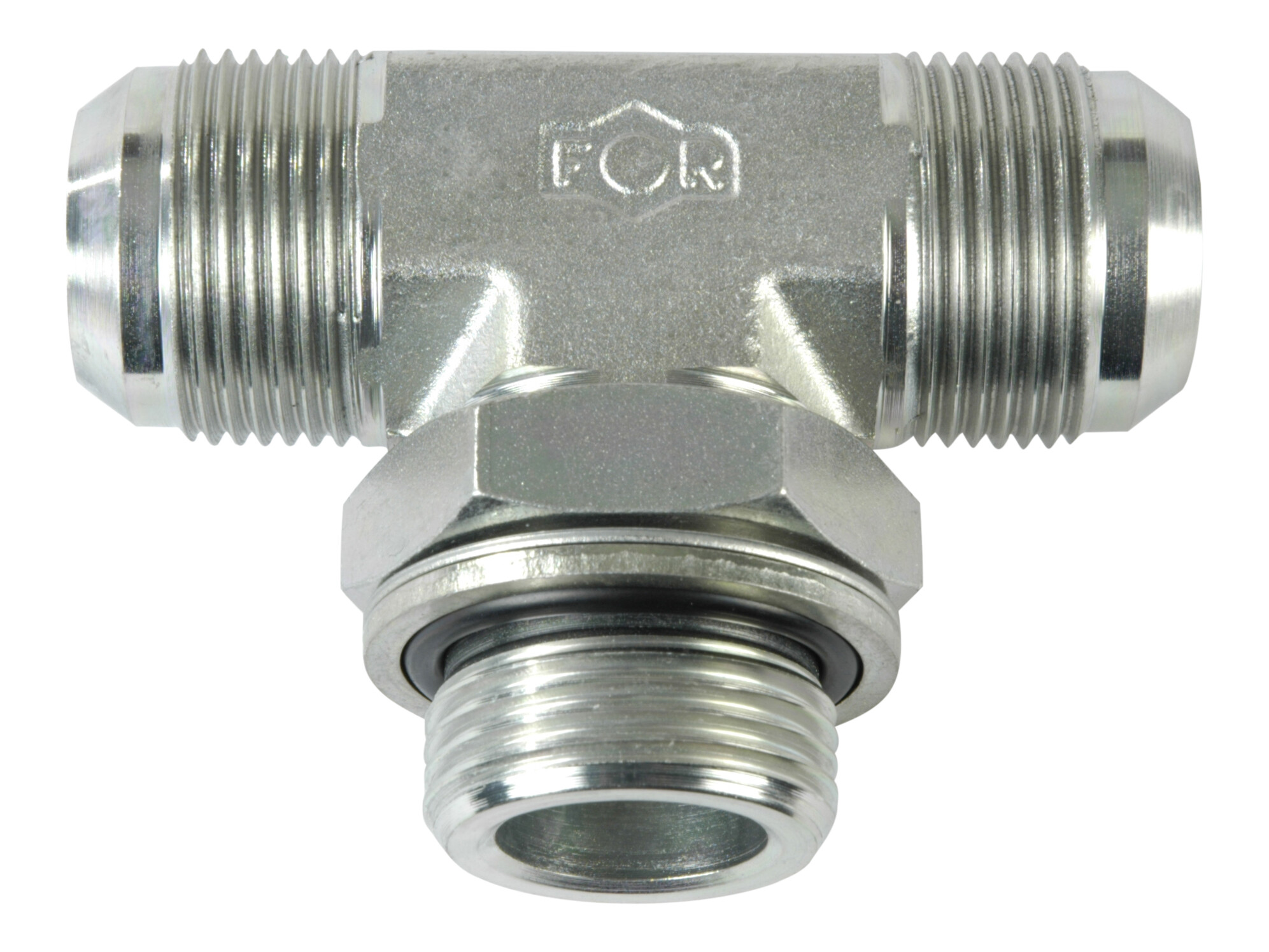

S610-25-33G Tee BSP
S610-25-33G Tee BSP
Partnumber:
JTEE-16-16
Package size:
5 st
Min. order quantity is:
1 st
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
25 mm
Dimension B
46 mm
Dimension B1
46 mm
Dimension C
52 mm
Dimension CH
41 mm
Dimension F
G 1 BSP
Dimension J
1.5/16-12 JIC
Dimension J1
1.5/16-12 JIC
Dimension T
25 mm
Dimension T1
25 mm
Material
Steel
Pressure max.
290 bar
Surface treatment
Electro-galvanized / White chromatized
Thread outer
1.5/16-12 JIC
Thread outer
G 1 BSP
Package size
5 st
Barcode
144137
Gross weight
0,50 Kg
Net weight
0,50 Kg
Country of origin
ITA
Intrastat code
73071110
S610-25-33G Tee BSP
Note: Opening 3D files requires a program that supports the file format
