Fitting
\ufeff
-

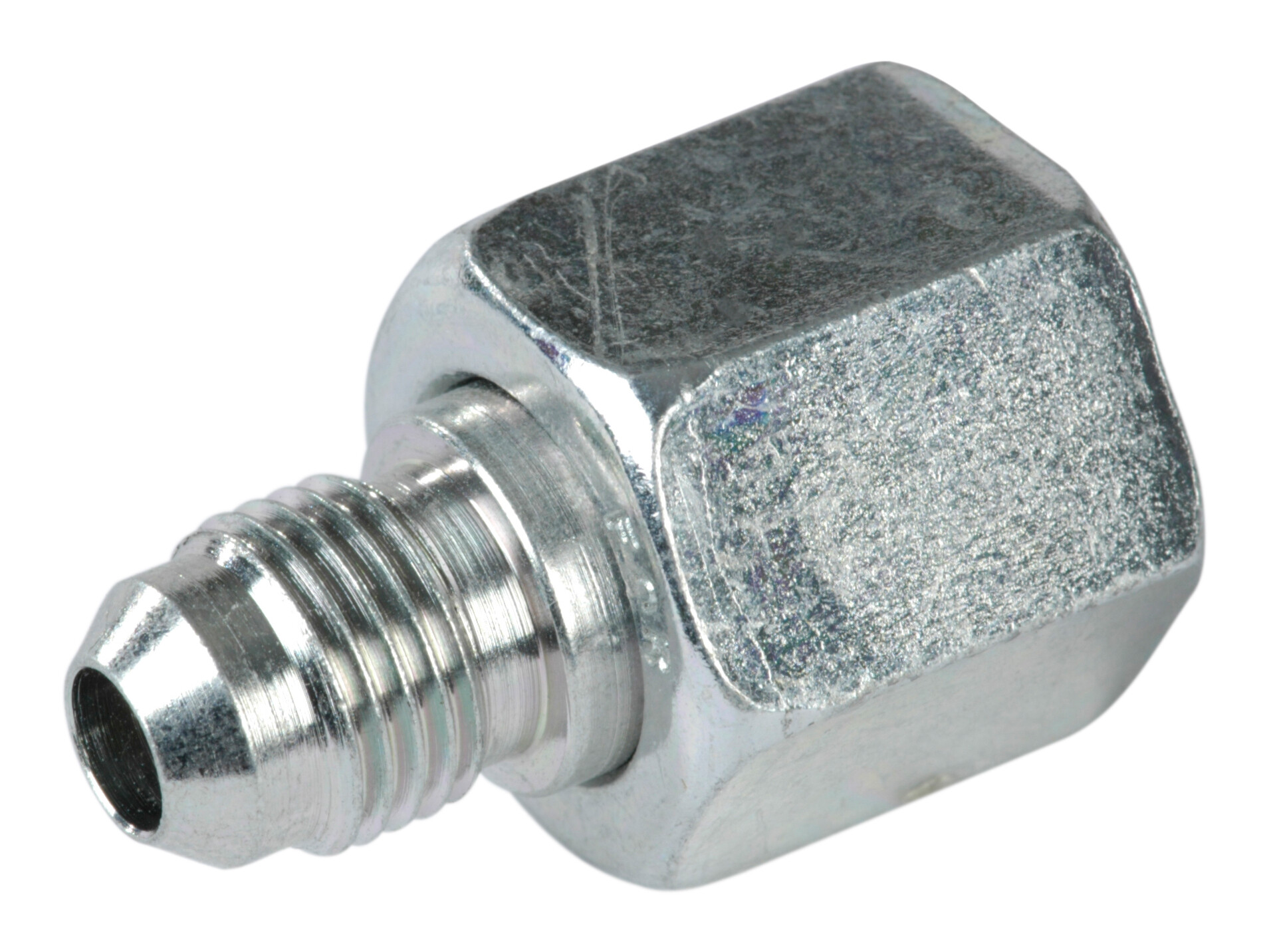

JIC 37° straight conversion connector
- One end JIC 37° external thread
- Other end JIC 37° internal thread
Partnumber:
JKOR-08-05
Package size:
20 st
Min. order quantity is:
1 st
A1
25,5 mm
Angle
0 °
Brand Name
FOR
CH
22 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
8 mm
Dimension J1
1/2-20 JIC
Hexagon
22 mm
J
3/4-16 JIC
Material
Steel
Pressure max.
350 bar
Surface treatment
Electro-galvanized / White chromatized
T
12 mm
Thread inner
3/4-16 JIC
Thread outer
1/2-20 JIC
Package size
20 st
Barcode
144019
Gross weight
0,05 Kg
Net weight
0,05 Kg
Country of origin
ITA
Intrastat code
73071110
\ufeff
-
JIC 37° straight conversion connector
- One end JIC 37° external thread
- Other end JIC 37° internal thread
