Riktningsv. Duplomatc NG6 4/2 el + spak PoAcBcTo

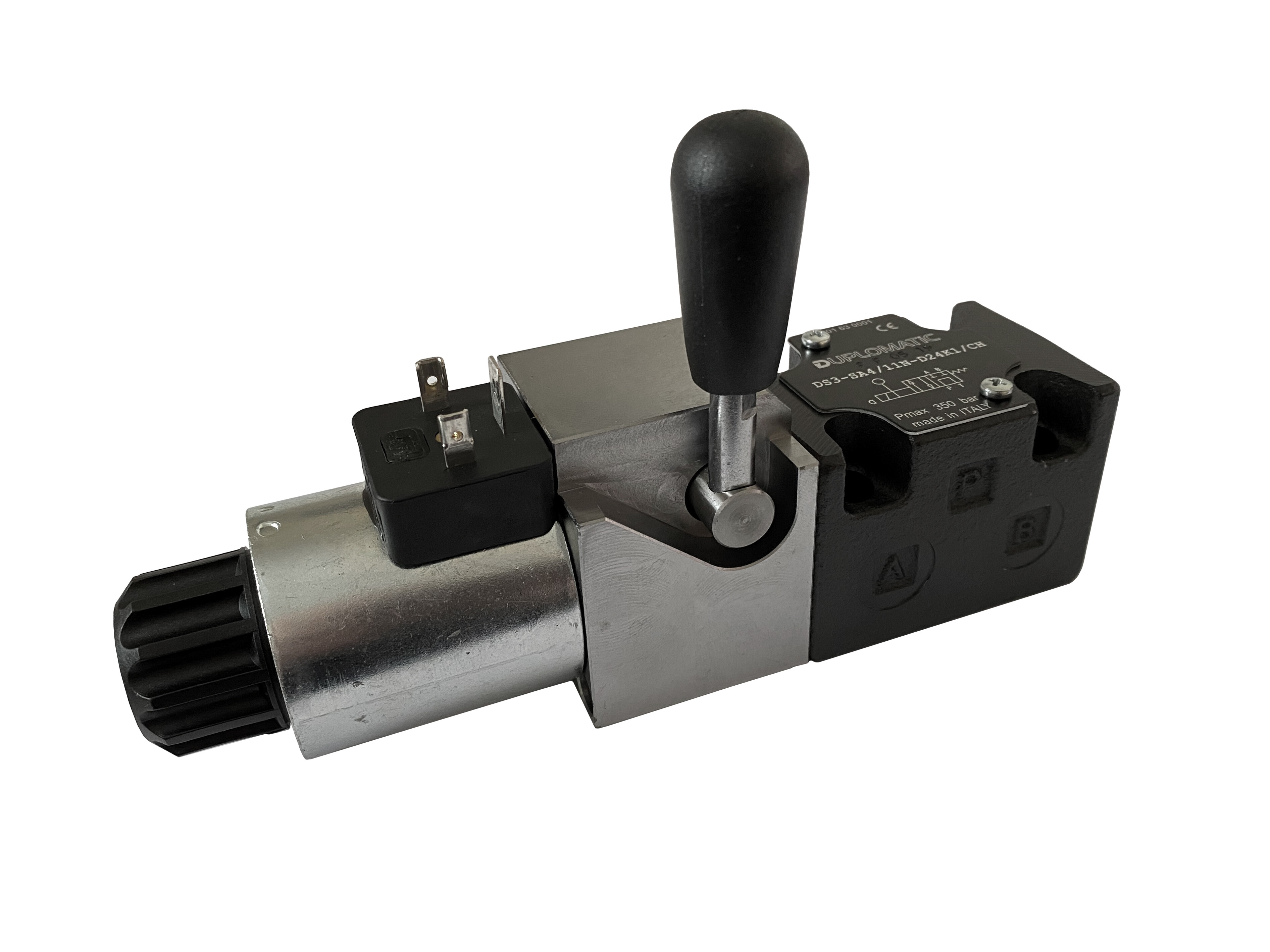

Riktningsventil Duplomatic NG6

Partnumber:
DS3-SA4/11N-D24K1/CH

Package size:
1 st

Min. order quantity is:
1 st
Spole Duplomatic DS3 24VDC DIN kontakt
Partnumber: C22S3-D24K1/11
Spole Duplomatic DS3 24VDC AMP junior
Partnumber: C22S3-D24K2/11
Activation
Manual, Solenoid

Brand Name
Duplomatic

Contamination level max.
20/18/15 - ISO 4406

Current type
DC

Flow rate nominal LMin
60 lpm

Model code
DS3-SA4/11N-D24K1/CH

NG ISO-size
NG06

Number of ways/positions
4/2

Oil viscocity recommended
25 cSt

Plug type
DIN 43650 Form A, DIN EN 175301-803 Form A

Pressure T max.
160 bar

Pressure max.
350 bar

Temperature max.
+80 °C

Temperature min.
-20 °C

Torque tightening
4,5-5,5 Nm

Voltage
24 V
Package size
1 st

Barcode
328750

Gross weight
Kg

Net weight
Kg

Country of origin
ita

Riktningsventil Duplomatic NG6
