Swivel male elbow 14mm BSPP 3/8" thread nickel-plated

Varenummer:

C02471438

Pakke str.:

5 st

Min. bestillingsenhed er:

1 st

Specifications
Dimensions and shipping

Angle

90 °

Area of use

Compressed air, Vacuum

Brand Name

Tierre

Dimension A

6.8 mm

Dimension CH

21 mm

Dimension L1

39.8 mm

Dimension L2

31.7 mm

Dimension T

G 3/8 BSP

Dimension ØD

14 mm

Dimension ØP

23.2 mm

Material

Brass, PBT-plast, POM(Acetal), Stainless steel, Zinc

Model code

WTRL14G03

Pressure max.

16 bar

Sealing material

NBR

Series

WTR

Temperature max.

+80 °C

Temperature min.

-20 °C

Thread outer

G 3/8 BSP

Torque tightening

25 Nm

Tube Insertion Depth

22.9 mm

Tube Tollerance

± 0,15 mm

Vacuum max.

-0.9 bar

Package size

5 st

Barcode

457636

Gross weight

Net weight

Country of origin

ita

Intrastat code

11111111

Product information

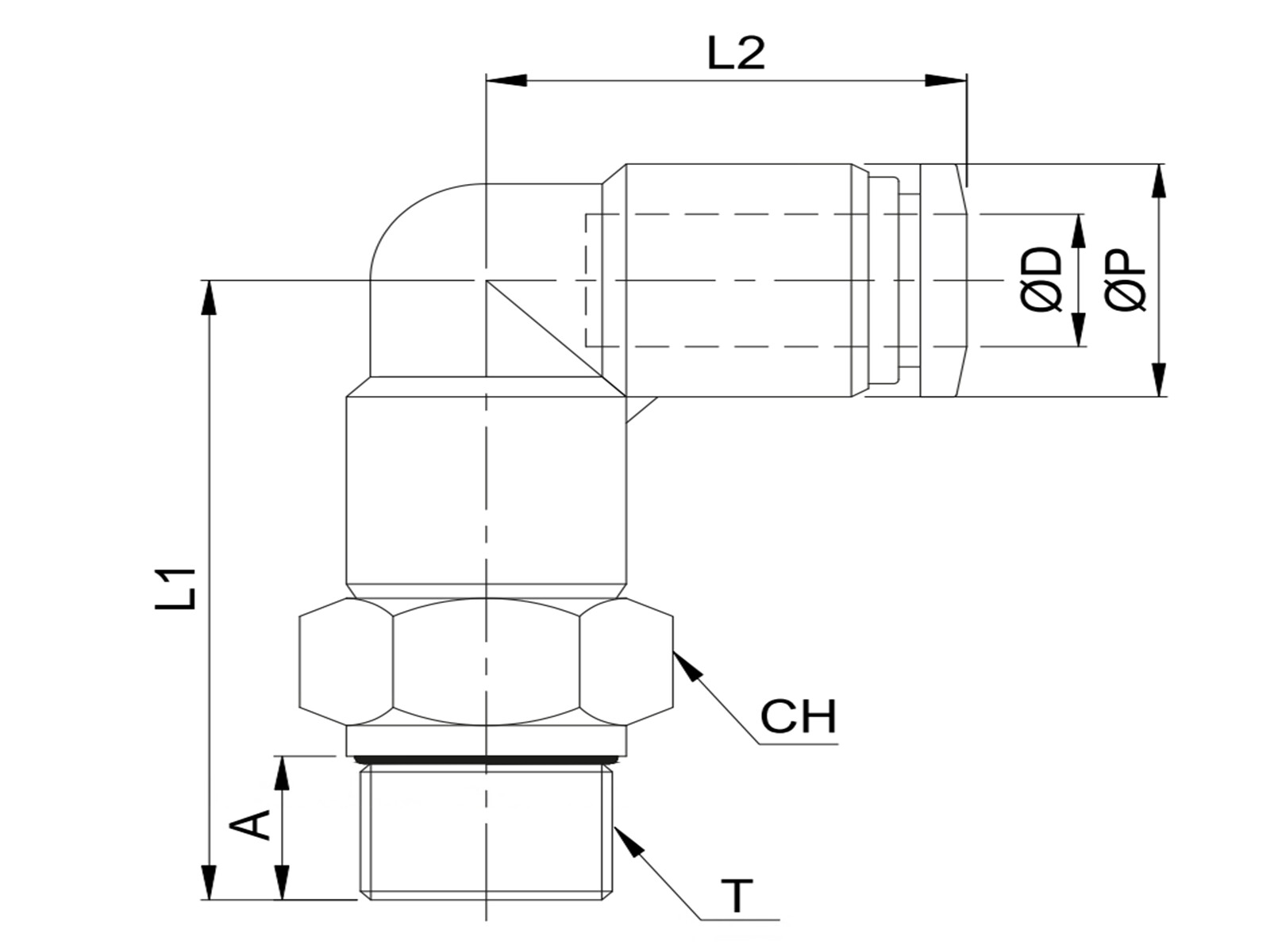

Measure sketch

Swivel male elbow 14mm BSPP 3/8" thread nickel-plated
