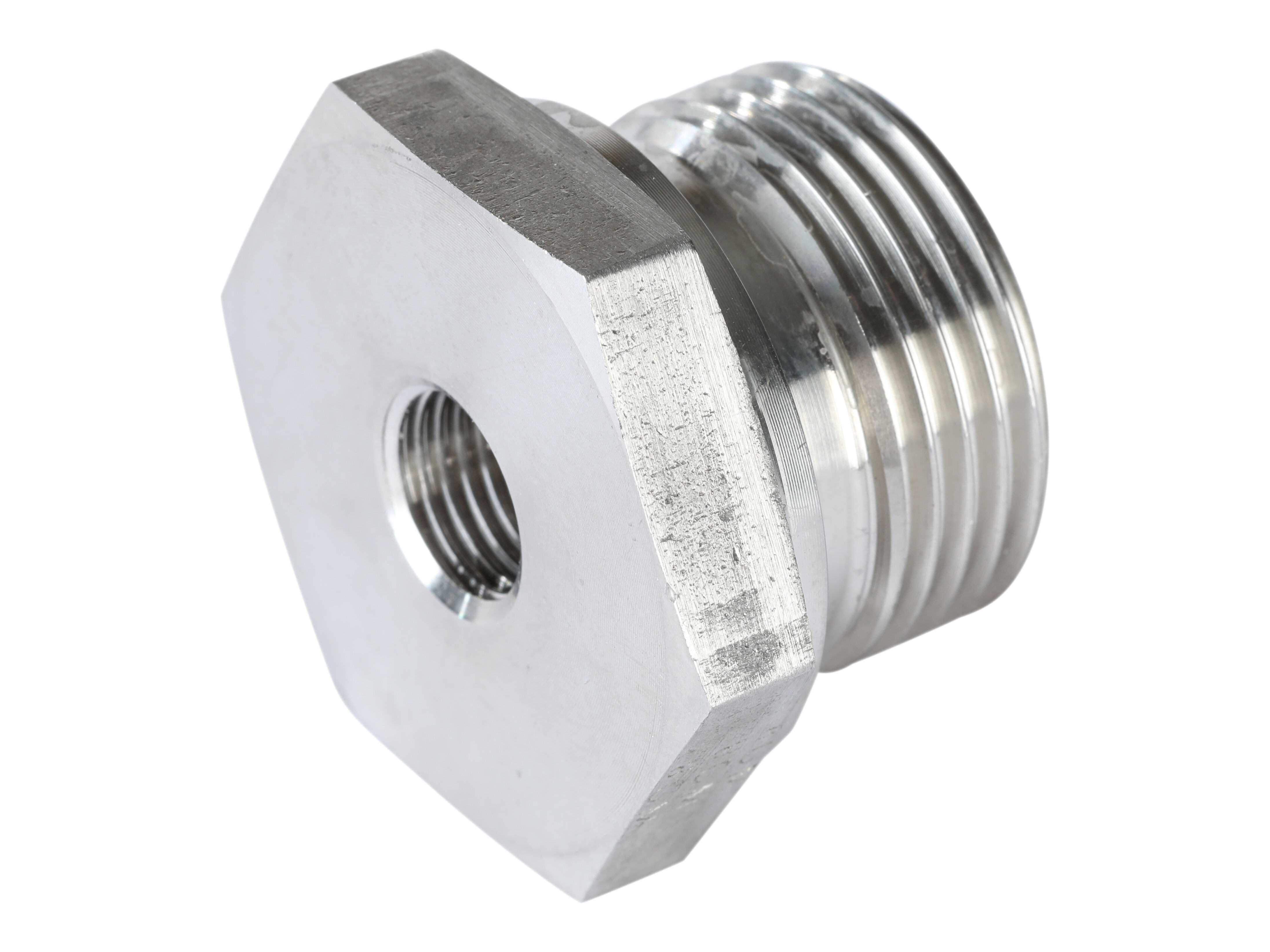

Adapter Rak, Utv-G 1'', Inv-G 1/4'', Syrafast
Temperature/Pressure reductions:
-60°C° - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
Partnumber:
948-16-04-SY
Package size:
1 st
Min. order quantity is:
1 st
Angle
0 °
Brand Name
Hydraspecma
Dimension L1
29 mm
Dimension L2
12 mm
Dimension S1
41 mm
Dimension i
18 mm
Material
Stainless steel
Material quality
1.4571 / AISI316Ti
Pressure max.
400 bar
Temperature max.
+400 °C
Temperature min.
-60 °C
Thread T1
G 1 BSP
Thread T2
G 1/4 BSP
Thread inner
G 1/4 BSP
Thread outer
G 1 BSP
Package size
1 st
Barcode
307975
Gross weight
Kg
Net weight
Kg
Country of origin
deu
Temperature/Pressure reductions:
-60°C° - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
