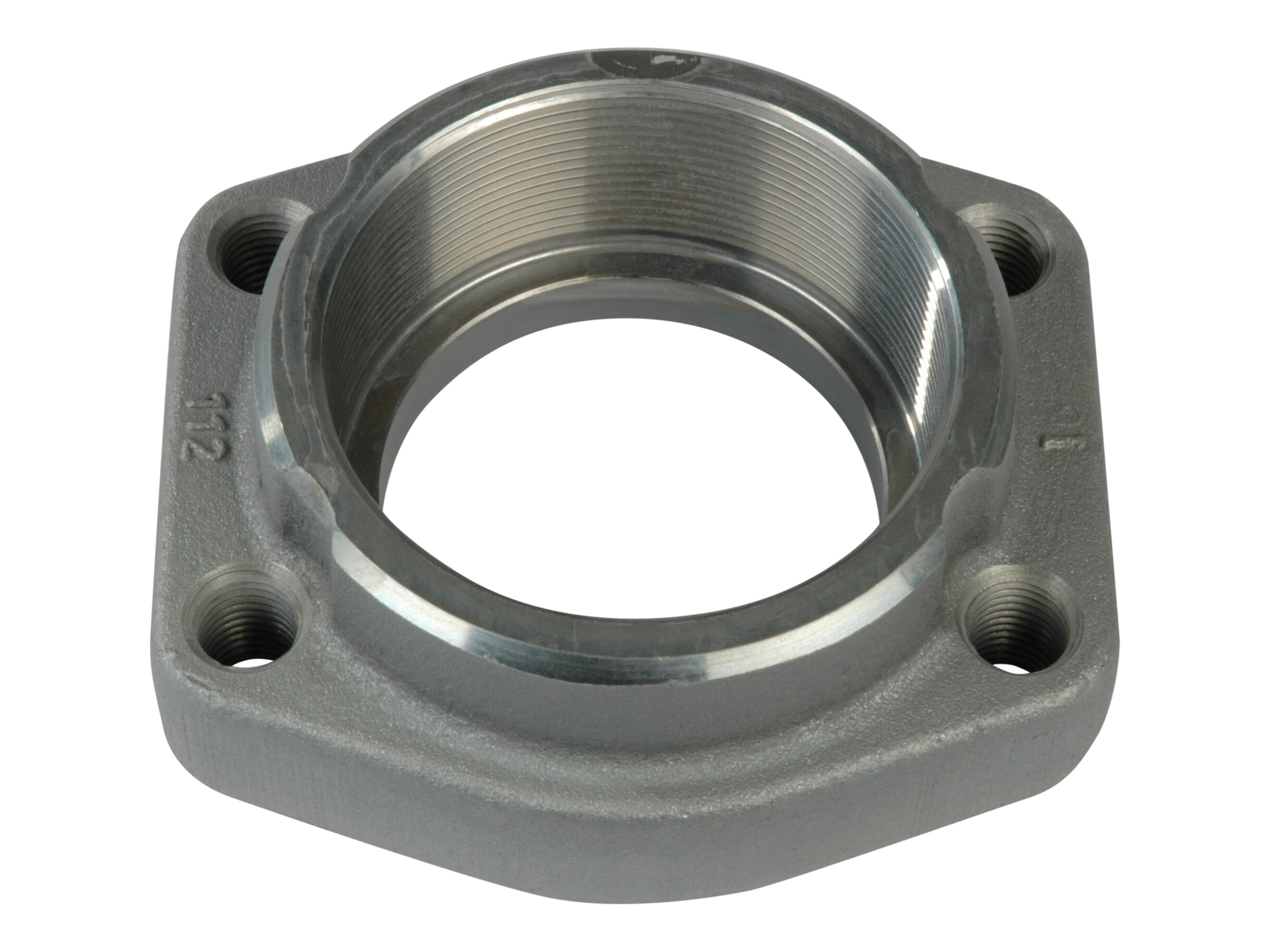

Threaded flange 3" SAE3000 x 3" BSP
Threaded flange 3" SAE3000 x 3" BSP
Partnumber:
8315-48-48
Package size:
1 st
Min. order quantity is:
1 st
Angle
0 °
Brand Name
Havit
Corrosion resistance
480 hours salt spray DIN EN 9227
Diameter flange
101.6 mm
Dimension C
106.4 mm
Dimension E
61.9 mm
Flange
3 "
Flange SAE/DIN
3000 PSI
Material
Steel
O-ring
85.32X3.53 mm
Pressure max.
160 bar
Shore
90
Standard ISO
ISO 6162-1
Standard SAE
SAE J518 Code 61
Surface treatment
Zinc-Nickel plated
Temperature max.
+90 °C
Temperature min.
-40 °C
Thread inner
G 3 BSP
Thread of bolt metric
M16
Package size
1 st
Barcode
448663
Gross weight
2,15 Kg
Net weight
2,15 Kg
Country of origin
DEU
Intrastat code
73079100
Threaded flange 3" SAE3000 x 3" BSP
