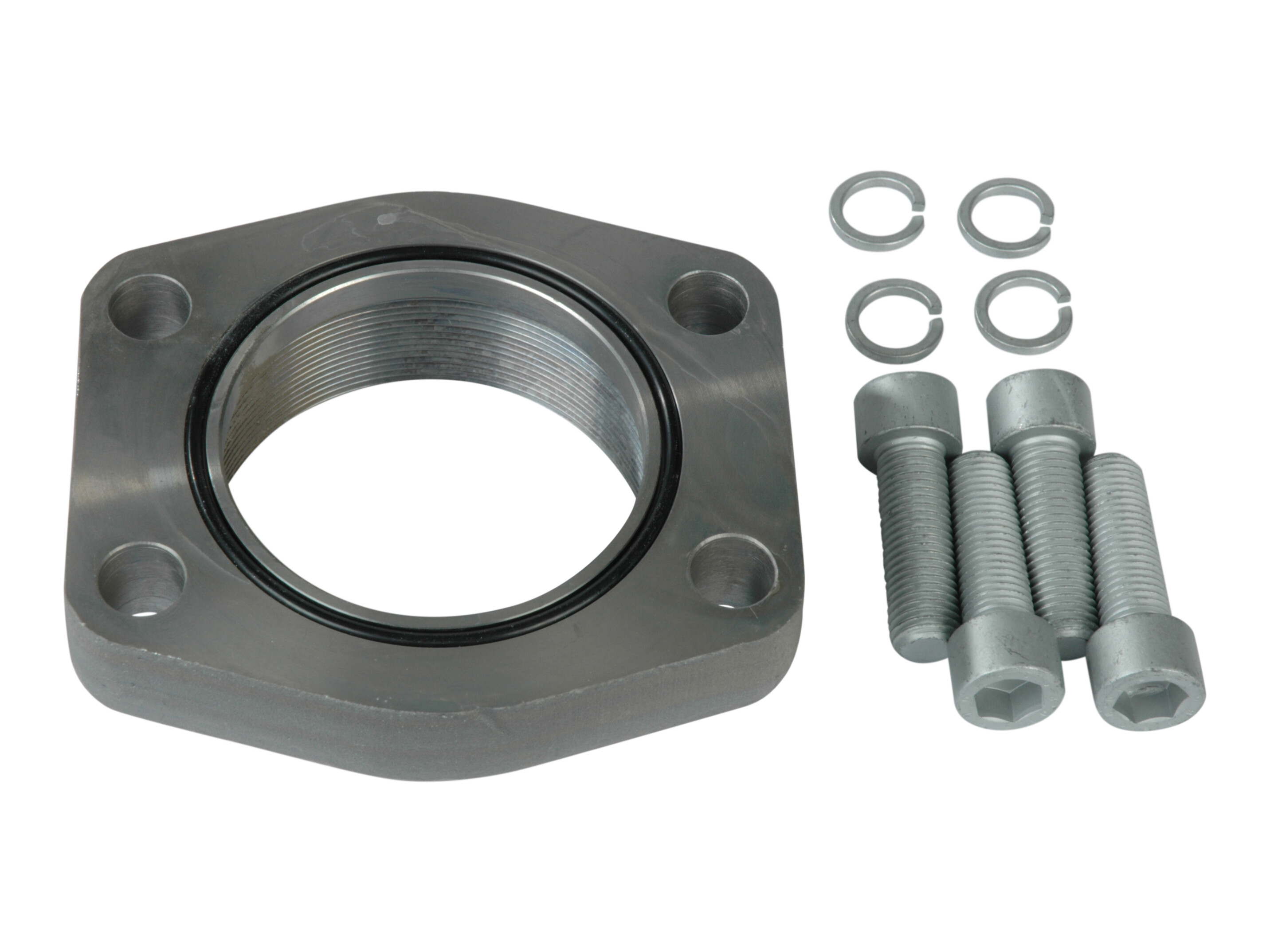

Threaded flange 3.1/2" SAE3000 x 3.1/2" BSP - complete
Threaded flange 3.1/2" SAE3000 x 3.1/2" BSP - complete
Artikelnummer:
8310-56-56-KM
Förpackningsstorlek:
1 set
Minsta beställningskvantitet:
1 set
Angle
0 °
Bolt dimension
M16x50 mm
Brand Name
Havit
Corrosion resistance
480 hours salt spray DIN EN 9227
Diameter flange
114.3 mm
Dimension C
120.7 mm
Dimension E
69.9 mm
Flange
3.1/2 "
Flange SAE/DIN
3000 PSI
Material
Steel
Number of bolts
4
O-ring
98.02X3.53 mm
Pressure max.
35 bar
Sealing material
NBR
Shore
90
Standard ISO
ISO 6162-1
Standard SAE
SAE J518 Code 61
Surface treatment
Zinc-Nickel plated
Temperature max.
+90 °C
Temperature min.
-40 °C
Thread inner
G 3.1/2 BSP
Förpackningsstorlek
1 set
Streckkod
110374
Bruttovikt
2,42 Kg
Nettovikt
2,42 Kg
Ursprungsland
DEU
Intrastat artikelkod
73079100
Threaded flange 3.1/2" SAE3000 x 3.1/2" BSP - complete
