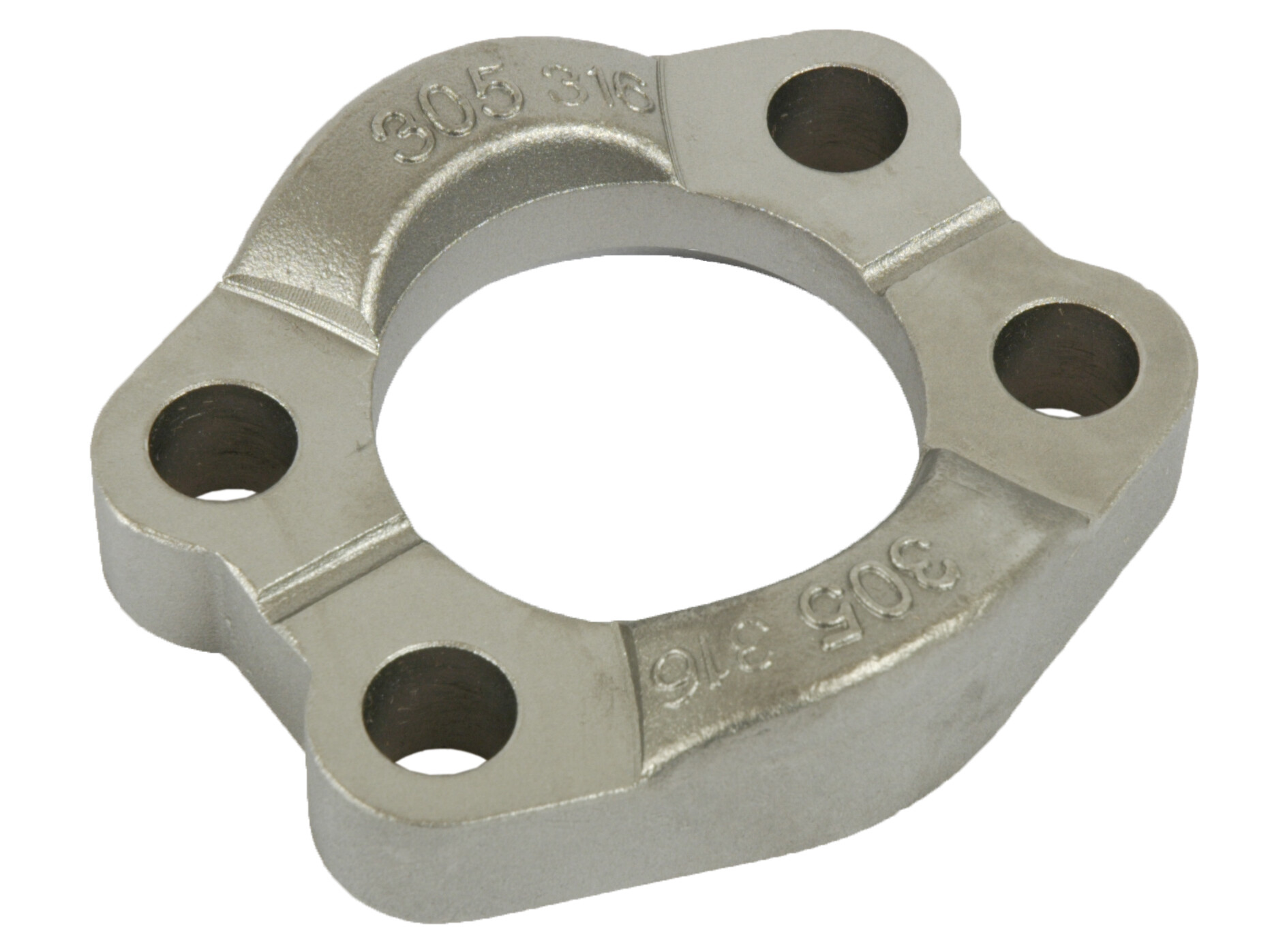

Helfläns SAE3000- 1'' Syrafast
Temperature/pressure reduction:
_x000D_
-60°C to +20°C = 0%.
+20°C to +50°C = 5%.
+50°C to +100°C = 11%.
+100°C to +200°C = 20%.
+200°C to +300°C = 29%.
+300°C to +400°C = 33%.
Varenummer:
8301-16-SY
Pakke str.:
1 st
Min. bestillingsenhed er:
1 st
Bolt dimension
M10x35 mm
Brand Name
Hydraspecma
Diameter flange
44.5 mm
Dimension C
52.4 mm
Dimension E
26.2 mm
Flange
1 "
Flange SAE/DIN
3000 PSI
Material
Stainless steel
Material quality
1.4571 / AISI316Ti
Model code
VF-3-1“
Number of bolts
4
O-ring
32.93X3.53 mm
Pressure max.
345 bar
Shore
90
Standard ISO
ISO 6162-1
Standard SAE
SAE J518 Code 61
Temperature max.
+400 °C
Temperature min.
-60 °C
Förpackningsstorlek
1 st
Streckkod
303470
Bruttovikt
Kg
Nettovikt
Kg
Ursprungsland
deu
Temperature/pressure reduction:
_x000D_
-60°C to +20°C = 0%.
+20°C to +50°C = 5%.
+50°C to +100°C = 11%.
+100°C to +200°C = 20%.
+200°C to +300°C = 29%.
+300°C to +400°C = 33%.
