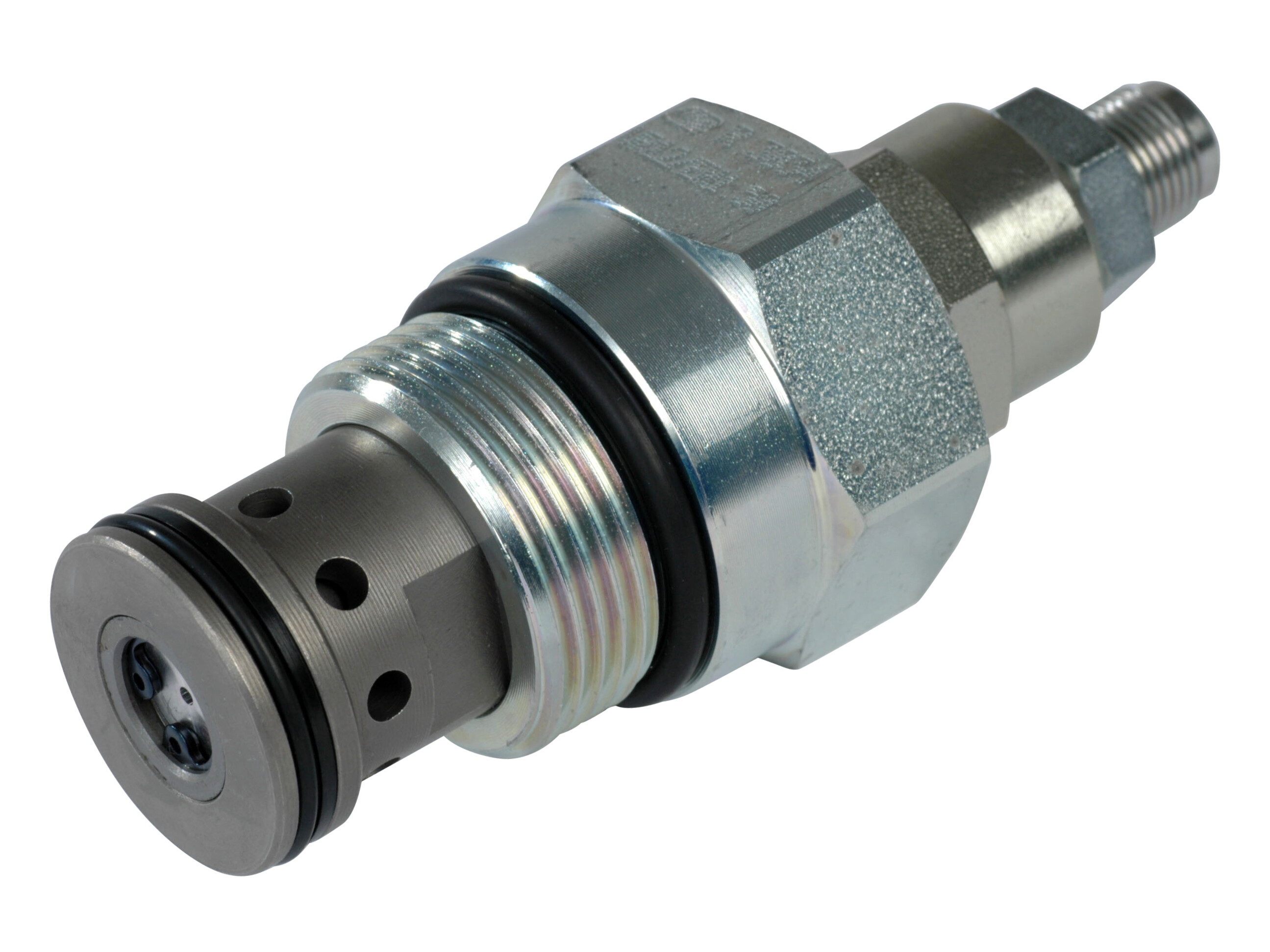

Press.comp Flow Cont. valve 60l/m (2.5-6.5l/m) VR 12-EN-1.50

This valve is a limited adjustment, pressure compensated, restrictive-type ­flow control valve. To increase the fl­ow, turn the adjustment screw clockwise. To decrease the ­flow, turn the adjustment screw counter-clockwise.

Partnumber:
820197519

Package size:
1 st

Min. order quantity is:
1 st
Brand Name
Danfoss

Cavity
NCS12/2

Contamination level max.
20/18/14 - ISO 4406

Flow max. regulated
6.5 lpm

Flow min. regulated
2.5 lpm

Flow rate nominal LMin
60 lpm

Model code
VR12-EN-1.50-00

Oil viscocity recommended
12 - 54 cSt

Pressure compensated
Yes

Pressure max.
315 bar

Temperature max.
+100 °C

Temperature min.
-40 °C

Torque tightening
65 - 70 Nm
Package size
1 st

Barcode
374728

Gross weight
0,40 Kg

Net weight
0,40 Kg

Country of origin
ITA

Intrastat code
84812010

This valve is a limited adjustment, pressure compensated, restrictive-type ­flow control valve. To increase the fl­ow, turn the adjustment screw clockwise. To decrease the ­flow, turn the adjustment screw counter-clockwise.
