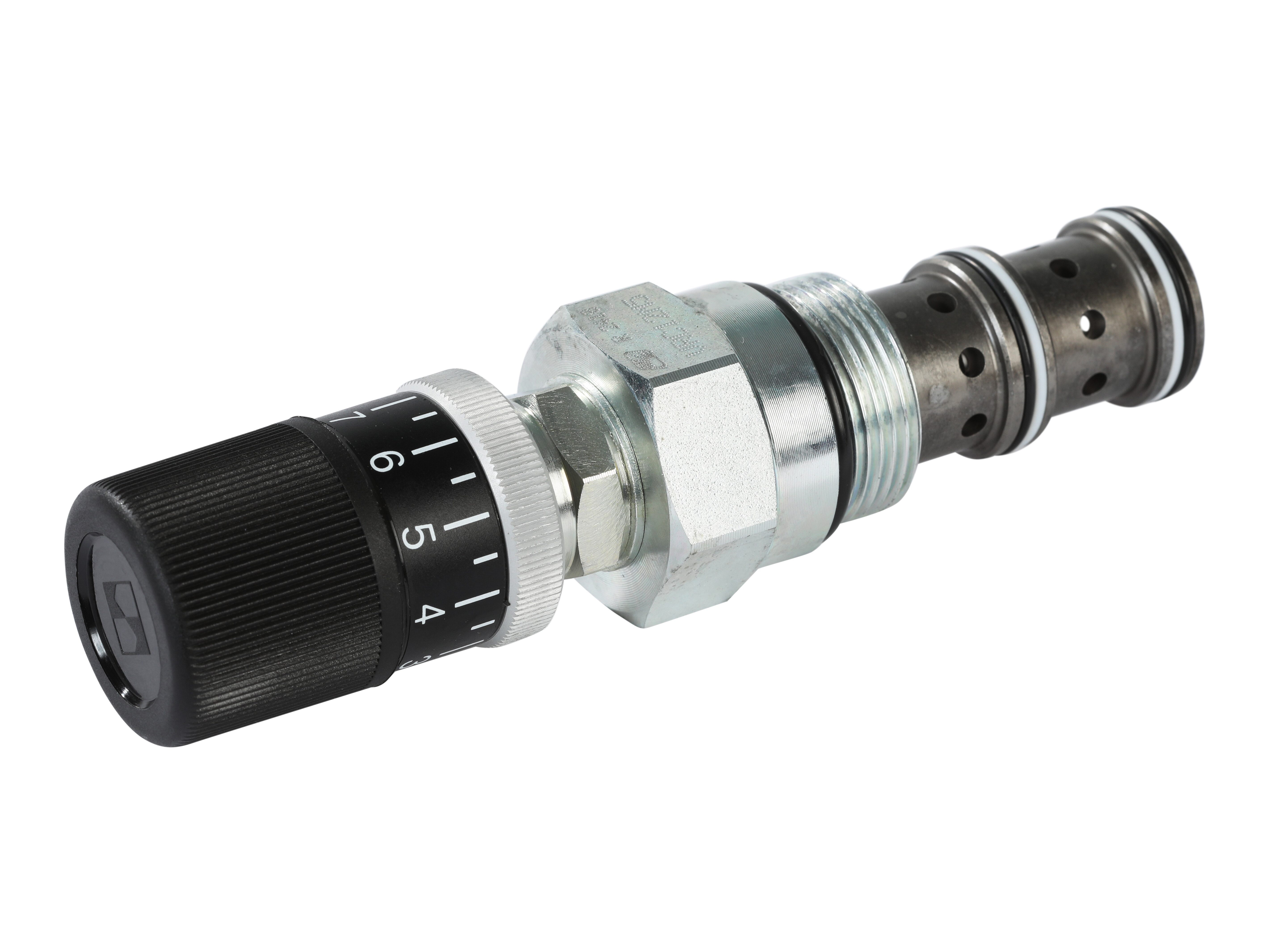

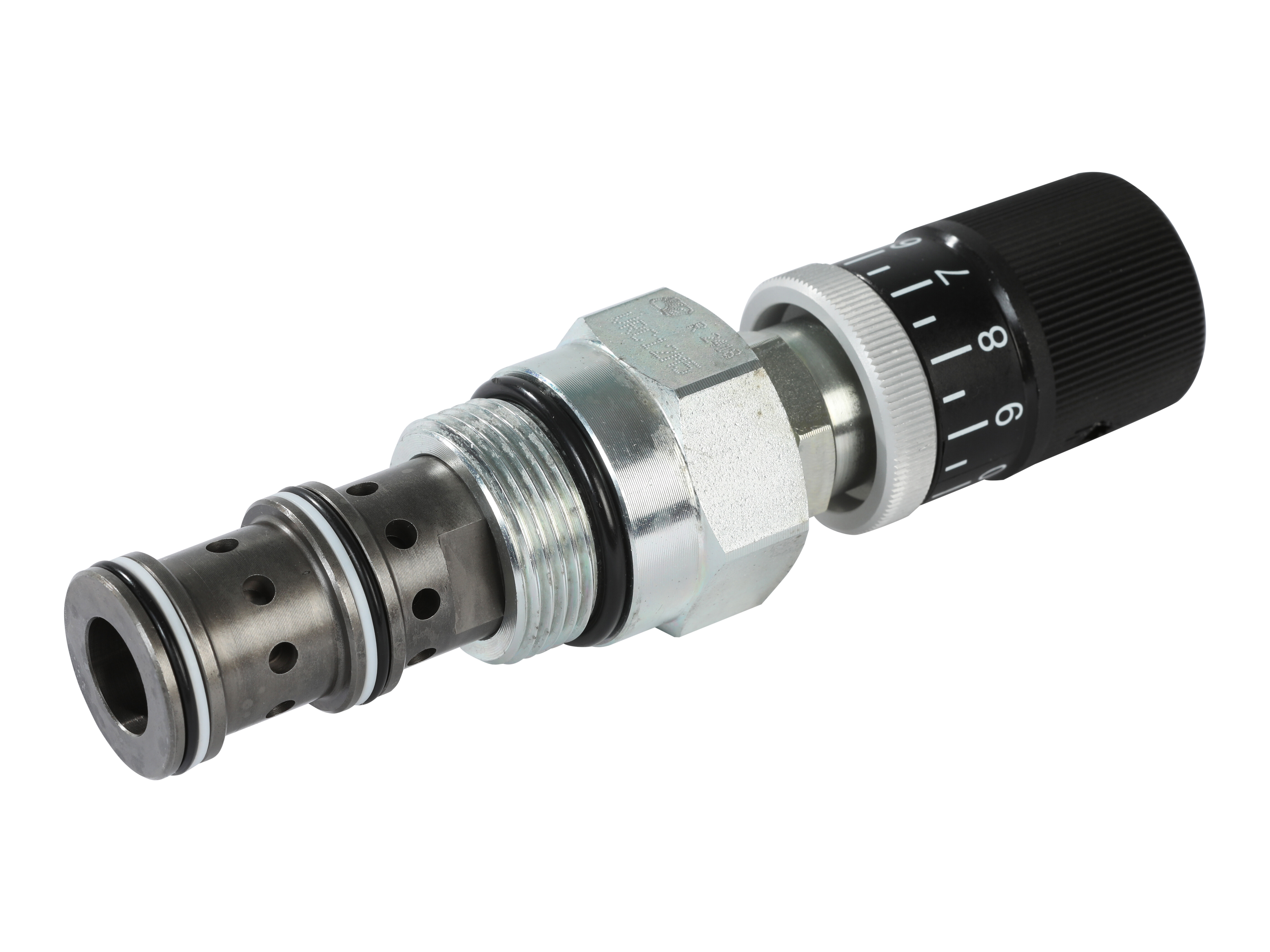

Press.comp Flow Cont. valve 100l/m (25-60l/m) VRC 12-M-5.00-
This is a partially adjustable, priority type, pressure compensated flow control valve, where the flow from port 3 will remain constant regardless of the pressure difference across the valve, while excess flow passes from port 1 to 2.
Flow enters at port 1 and passes across a fixed orifice in the spool, which creates a pressure drop. This causes the spool to move back against the spring, which then restricts the outlet flow. Port 1 then opens to port 2 to allow excess flow to pass. The regulated flow will always take priority and remains constant if the working pressure is higher in either port 2 or port 3.
Varenummer:
820172219
Pakke str.:
1 st
Min. bestillingsenhed er:
1 st
Flow min. reglerat
25 lpm
Flöde in max.
100 lpm
Flöde max. reglerat
60 l/min
Flödeshastighet nominell LMin
73 lpm
Föroreningsgrad max.
20/18/14 - ISO 4406
Kavitet
NCS12/3
Modell kod
VRC12-M-5.00-00
Märke namn
Danfoss
Oljeviskositet rekommanderad
12 - 54 cSt
Temperatur max.
+100 °C
Temperatur min.
-40 °C
Tryck max.
315 bar
Tryckkompenserad
Yes
Åtdragning moment
65 - 70 Nm
Package size
1 st
Barcode
374725
Gross weight
0,46 Kg
Net weight
0,46 Kg
Country of origin
ITA
Intrastat code
84812010
This is a partially adjustable, priority type, pressure compensated flow control valve, where the flow from port 3 will remain constant regardless of the pressure difference across the valve, while excess flow passes from port 1 to 2.
Flow enters at port 1 and passes across a fixed orifice in the spool, which creates a pressure drop. This causes the spool to move back against the spring, which then restricts the outlet flow. Port 1 then opens to port 2 to allow excess flow to pass. The regulated flow will always take priority and remains constant if the working pressure is higher in either port 2 or port 3.
