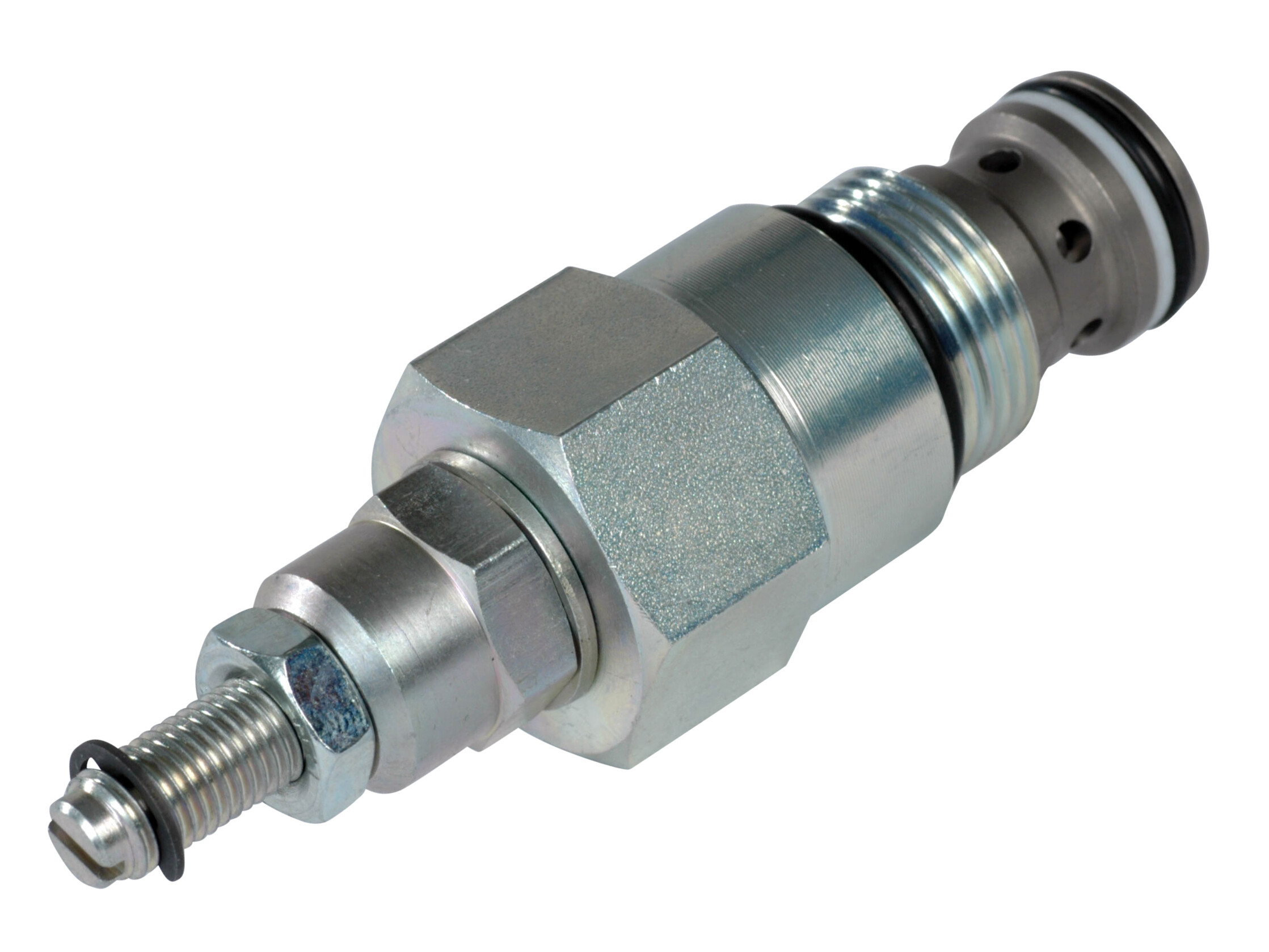

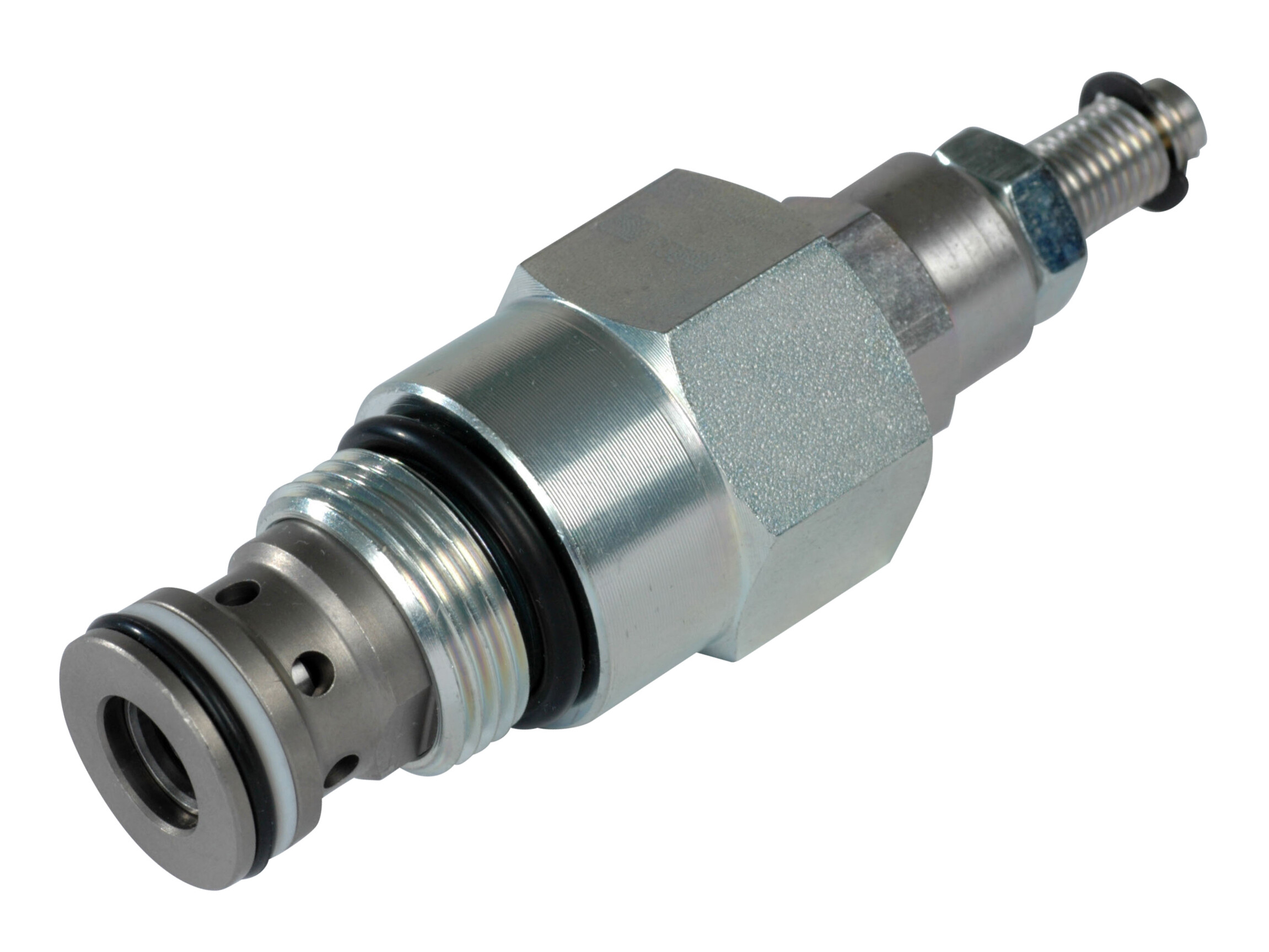

Press.comp Flow Cont. valve 30l/m (6-20l/m) VR 06-EN-3.00-00
This valve is a limited adjustment, pressure compensated, restrictive-type flow control valve. To increase the flow, turn the adjustment screw clockwise. To decrease the flow, turn the adjustment screw counter-clockwise.
Partnumber:
820171919
Package size:
1 st
Min. order quantity is:
1 st
Brand Name
Danfoss
Cavity
NCS06/2
Contamination level max.
20/18/14 - ISO 4406
Flow max. regulated
18 lpm
Flow min. regulated
6 lpm
Flow rate nominal LMin
30 lpm
Model code
VR06-EN-3.00-00
Oil viscocity recommended
12 - 54 cSt
Pressure compensated
Yes
Pressure max.
315 bar
Temperature max.
+100 °C
Temperature min.
-40 °C
Torque tightening
45 - 50 Nm
Pakke str.
1 st
Stregkode
374723
Brutto vægt
0,20 Kg
Netto vægt
0,20 Kg
Oprindelsesland
ITA
Intrastat varekode
84812010
This valve is a limited adjustment, pressure compensated, restrictive-type flow control valve. To increase the flow, turn the adjustment screw clockwise. To decrease the flow, turn the adjustment screw counter-clockwise.
