Insert 3/8" - 11/16"-16 ORFS nut with backnut

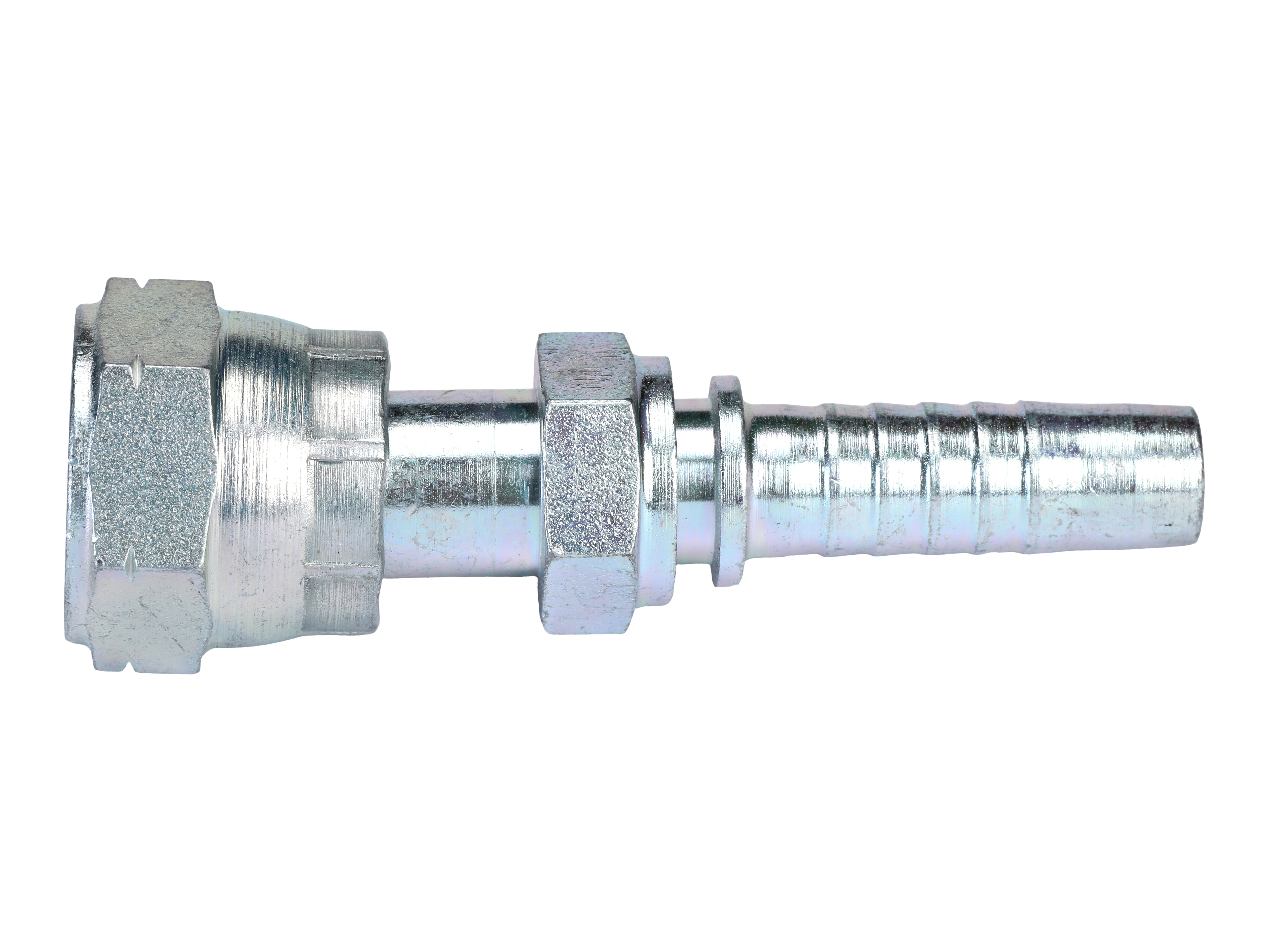

ORFS female hose insert for assembling a hydraulic hose connection with a separate ferrule. The fitting provides an ORFS interface with 11/16-16 inner thread and is intended for 3/8 in (9.5 mm) hose I.D.

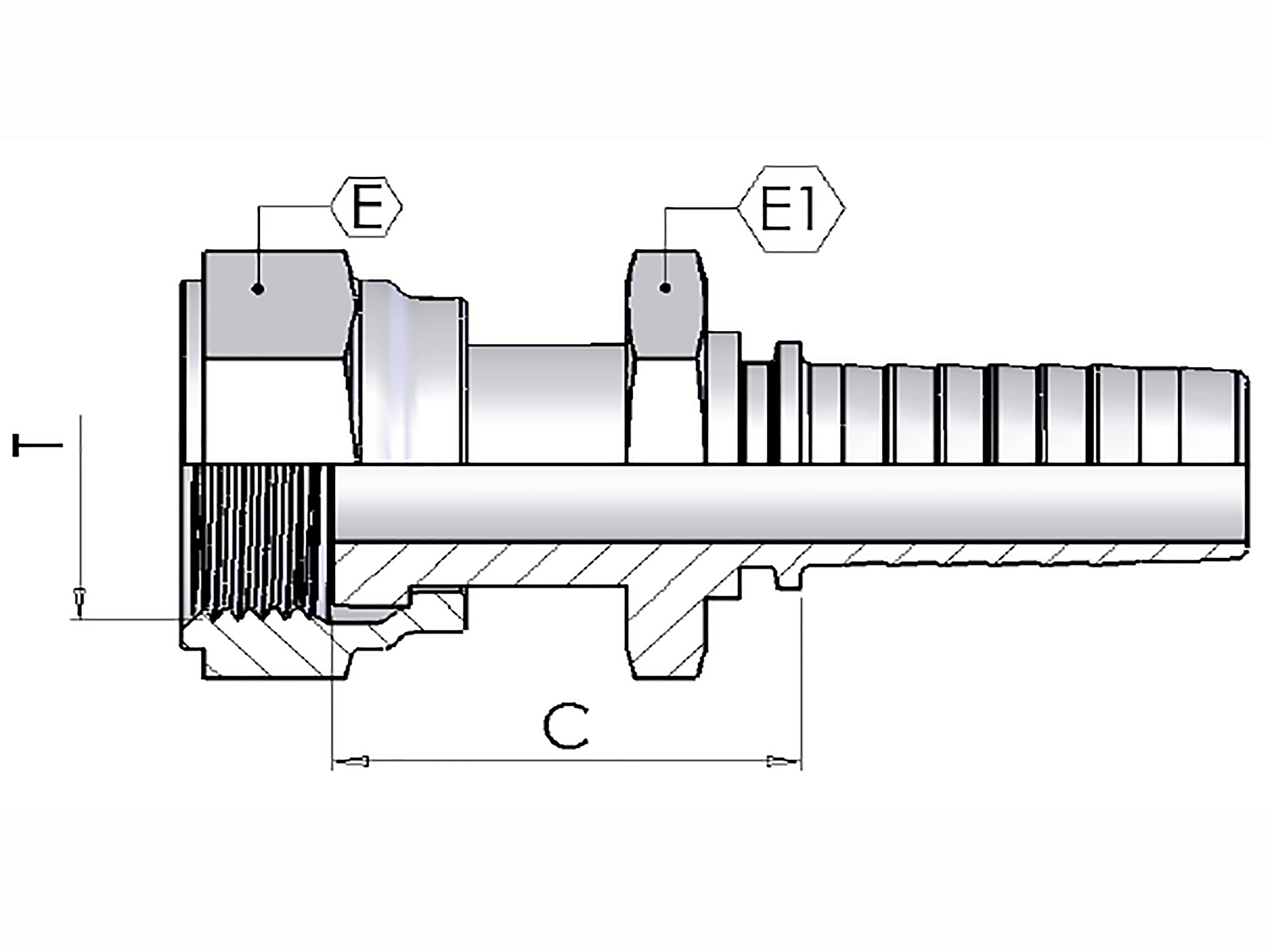

The design includes a nut with backnut and a back-hexagon form to support secure handling during assembly. For dimensional checks and installation space, the fitting has cut-off length C 34 mm and wrench dimensions E 22 mm and E1 17 mm. Zinc-plated surface treatment.
Typical Applications
- Hydraulic hose assemblies using ORFS connections
- Service and replacement of hose-end fittings where a separate ferrule is used
Partnumber:
4224-06-06-L
Package size:
125 pcs
Min. order quantity is:
1 pcs
Angle
0 °
Brand Name
I.M.M Hydraulics
C
34 mm
E
22 mm
E1
17 mm
Hose coupling type
For separate ferrule
Hose size
3/8 "
Model code
S05T-06-09
Surface treatment
Zinc-plated
T
11/16-16 ORFS
Package size
125 pcs
Barcode
142472
Gross weight
0,05 Kg
Net weight
0,05 Kg
Country of origin
ITA
Intrastat code
73269098
ORFS female hose insert for assembling a hydraulic hose connection with a separate ferrule. The fitting provides an ORFS interface with 11/16-16 inner thread and is intended for 3/8 in (9.5 mm) hose I.D.
The design includes a nut with backnut and a back-hexagon form to support secure handling during assembly. For dimensional checks and installation space, the fitting has cut-off length C 34 mm and wrench dimensions E 22 mm and E1 17 mm. Zinc-plated surface treatment.
Typical Applications
- Hydraulic hose assemblies using ORFS connections
- Service and replacement of hose-end fittings where a separate ferrule is used
