Multipikaliitin x5 Mobile

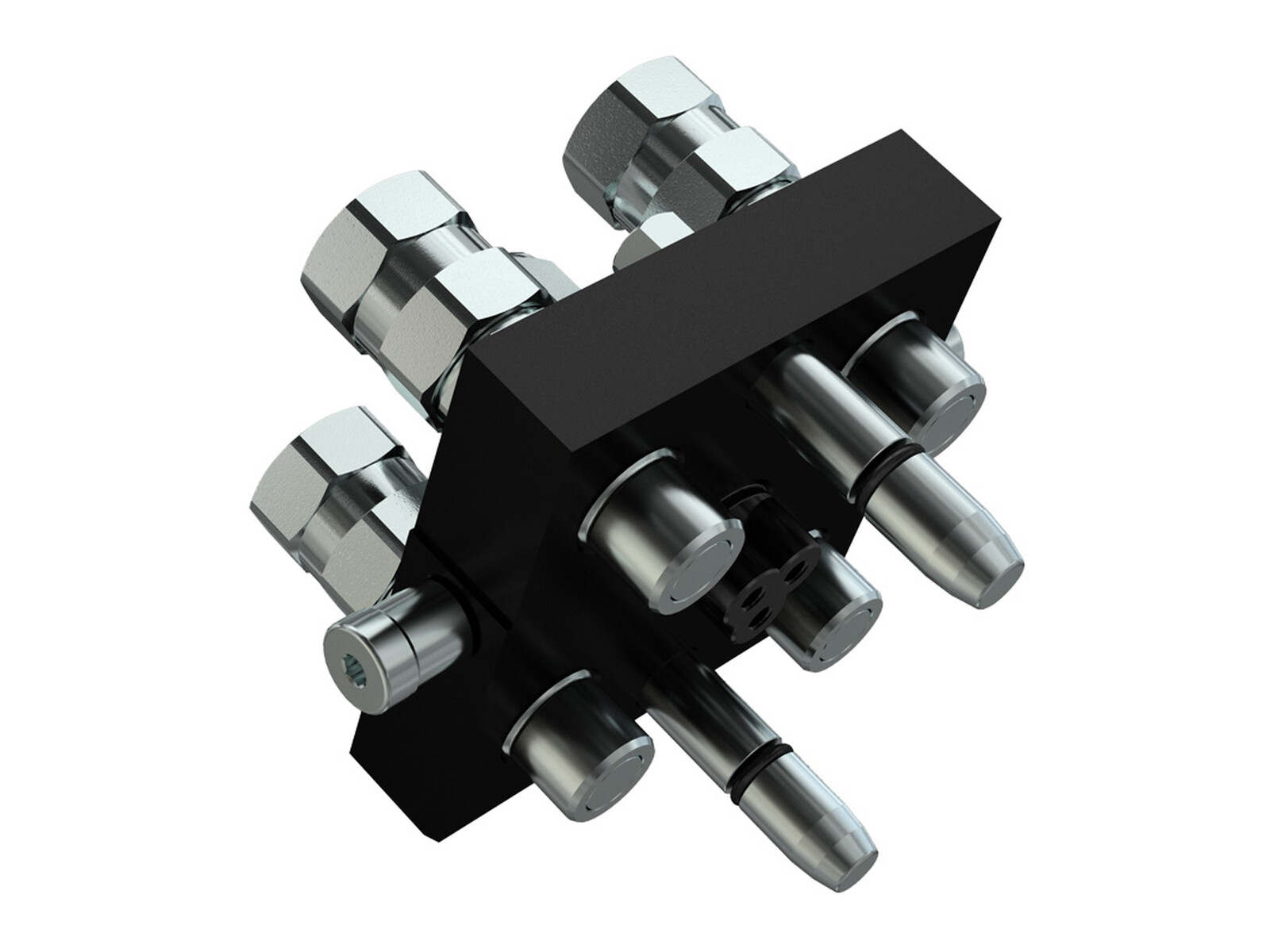

MultiFaster quick coupler for fast connection.

A quick disconnect and connect multi-fastener system for connecting multiple hydraulic and electrical lines with a single action. No liquid or air leakage during connection and disconnection of the MultiFaster quick connector.

Both the 2P... and 3P... series are equipped with flat-face connectors.
The mobile part of the 3P... series is equipped with flat-face male connectors type K3FNP to achieve effortless connection and disconnection at maximum working pressure.

Osanumero:
3P506-A-4-38GMC

Pakkauskoko:
1 fl

Pienin tilausmäärä on:
1 fl
Huomautus
7 pins electric connector

Kierre
G 3/8 BSP

Koko
3/8 "

Korroosionkestävyys
500 hours salt spray ISO 9227

Liitosten määrä
4

Lämpötila max.
+100 °C

Lämpötila min.
-25 °C

Malli
3P506-x

Mallikoodi
3P506-A-4-38GMC

Paine max.
250 bar

Pinta
Zinc coating (CR III)

Räjähdyspaine min.
1000 bar

Sarja
P506-x

Tiivistysmateriaali
NBR, Polyurethane

Tilavuusvirta nimellinen l/min
40 lpm

Tuotemerkit
Faster
Package size
1 fl

Barcode
491035

Gross weight
1,804 Kg

Net weight
1,804 Kg

Country of origin
IT

MultiFaster quick coupler for fast connection.

A quick disconnect and connect multi-fastener system for connecting multiple hydraulic and electrical lines with a single action. No liquid or air leakage during connection and disconnection of the MultiFaster quick connector.

Both the 2P... and 3P... series are equipped with flat-face connectors.
The mobile part of the 3P... series is equipped with flat-face male connectors type K3FNP to achieve effortless connection and disconnection at maximum working pressure.
