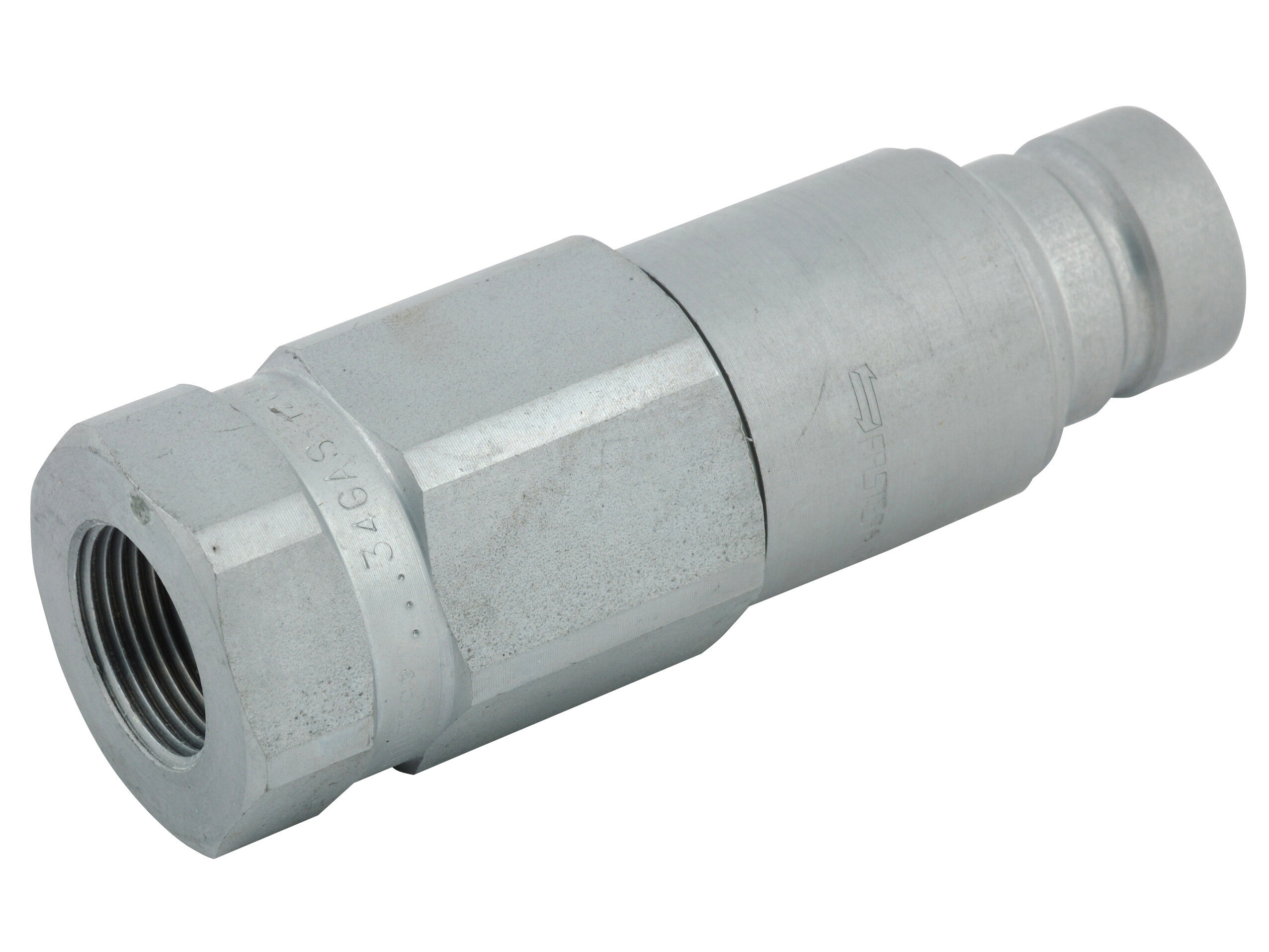

Coupling male flatface 3FFH (ISO16028) - DN20 - 3/4"BSP

Faster Flat-face quick coupling.

No oil spillage during assembly and disassembly.

The seals are easy to change.

Assembly: Press the trade.

Disassembly: Pull the outer ring of the female part back.

Locking system: Flat-sealed valve (double valve trade).

Assembly/Disassembly: Can be done under pressure.

Varenummer:
3FFH1234GASM

Pakke str.:
1 st

Min. bestillingsenhed er:
1 st
Pvchætte Orange t/FFH12 Han ISO 16028 FASTER
Partnumber: TFF12
Anvendelsesområde
Hydraulic oil

DN
19 mm

Dimension C
128 mm

Dimension E
G 3/4 BSP

Dimension H
29.9 mm

Dimension Y
42 mm

Flow Nominel
115 lpm

Gevind indvendig
G 3/4 BSP

ISO størrelse
19

Korrosions resistens
1000 hours salt spray UNI ISO 9227

Materiale
Steel

Model kode
3FFH12 34GAS M

Mærke navn
Faster

Overfladebehandling
Zinc-Nickel plated

Pakningsmateriale
NBR, Polyurethane

Standard ISO
ISO 16028

Størrelse
3/4 "

Temperatur maks.
+100 °C

Temperatur min.
-25 °C

Tryk maks.
350 bar

Trykeliminator
Yes
Package size
1 st

Barcode
330920

Gross weight
0,80 Kg

Net weight
0,80 Kg

Country of origin
ITA

Intrastat code
84812010

Faster Flat-face quick coupling.

No oil spillage during assembly and disassembly.

The seals are easy to change.

Assembly: Press the trade.

Disassembly: Pull the outer ring of the female part back.

Locking system: Flat-sealed valve (double valve trade).

Assembly/Disassembly: Can be done under pressure.
