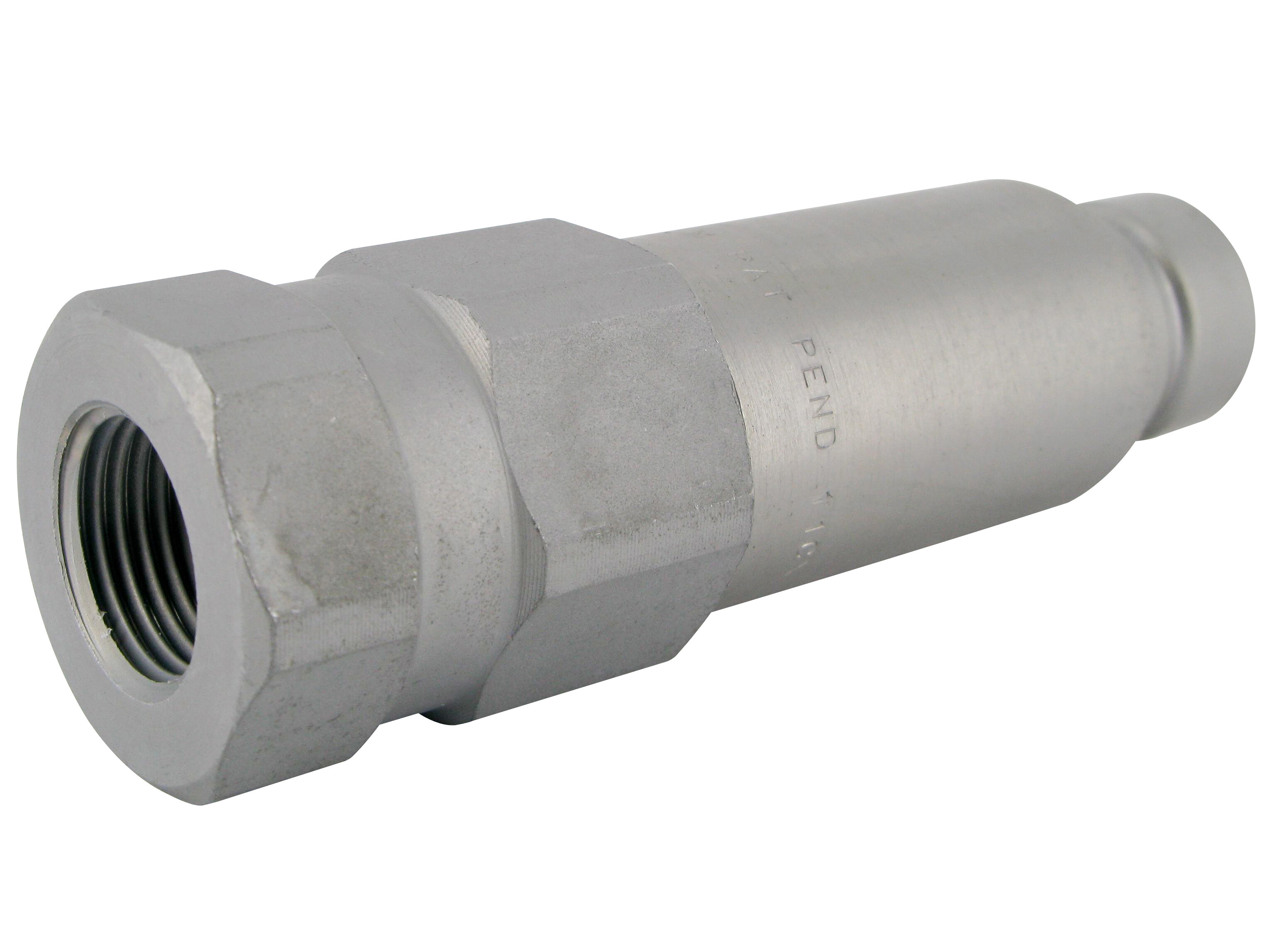

Coupling male flatface 3FFH (ISO16028) - DN12 - 1/2"BSP

Coupling male flatface 3FFH (ISO16028) - DN12 - 1/2"BSP

Faster Flat-face quick coupling.

No oil spillage during assembly and disassembly.

The seals are easy to change.

Assembly: Press the trade.

Disassembly: Pull the outer ring of the female part back.

Locking system: Flat-sealed valve (double valve trade).

Assembly/Disassembly: Can be done under pressure.

Partnumber:

3FFH0812GASM

Package size:

1 pcs

Min. order quantity is:

1 pcs

Specifications
Dimensions and shipping

Användingsområde

Hydraulic oil

Arbetstryck

350 bar

Arbetstryck

35 MPa

115,7 mm

12.5 mm

G 1/2 BSP

Flöde

65 lpm

Flödeshastighet nominell LMin

65 lpm

Gänga inv.

G 1/2 BSP

24,5 mm

ISO storlek

12.5

Koppling under tryck

Allowed

Kraft för anslutning

200 N

Modell kod

3FFH08 12GAS M

Märke namn

Faster

Packningsmaterial

NBR, Polyurethane

Rostbeständighet

1000 hours salt spray UNI ISO 9227

Sexkant

34 mm

Spill

0,01 ml

Standard ISO

ISO 16028

Storlek

12.5 mm

Storlek

1/2 "

Störrelse nominella

Temperatur max.

+100 °C

Temperatur min.

-25 °C

Tillverkningsmaterial

Steel

Tryck max.

350 bar

Tryck spräng min.

1400 bar

Tryckeliminator

Yes

Ventiltyp

Flat-face

34 mm

Ytskiktbehandling

MATE 500 (CrIII)

Package size

1 pcs

Barcode

330912

Gross weight

0,45 Kg

Net weight

0,45 Kg

Country of origin

ITA

Intrastat code

84812010

Product information
Measure sketch

Faster Flat-face quick coupling.

No oil spillage during assembly and disassembly.

The seals are easy to change.

Assembly: Press the trade.

Disassembly: Pull the outer ring of the female part back.

Locking system: Flat-sealed valve (double valve trade).

Assembly/Disassembly: Can be done under pressure.

Note: Opening 3D files requires a program that supports the file format
