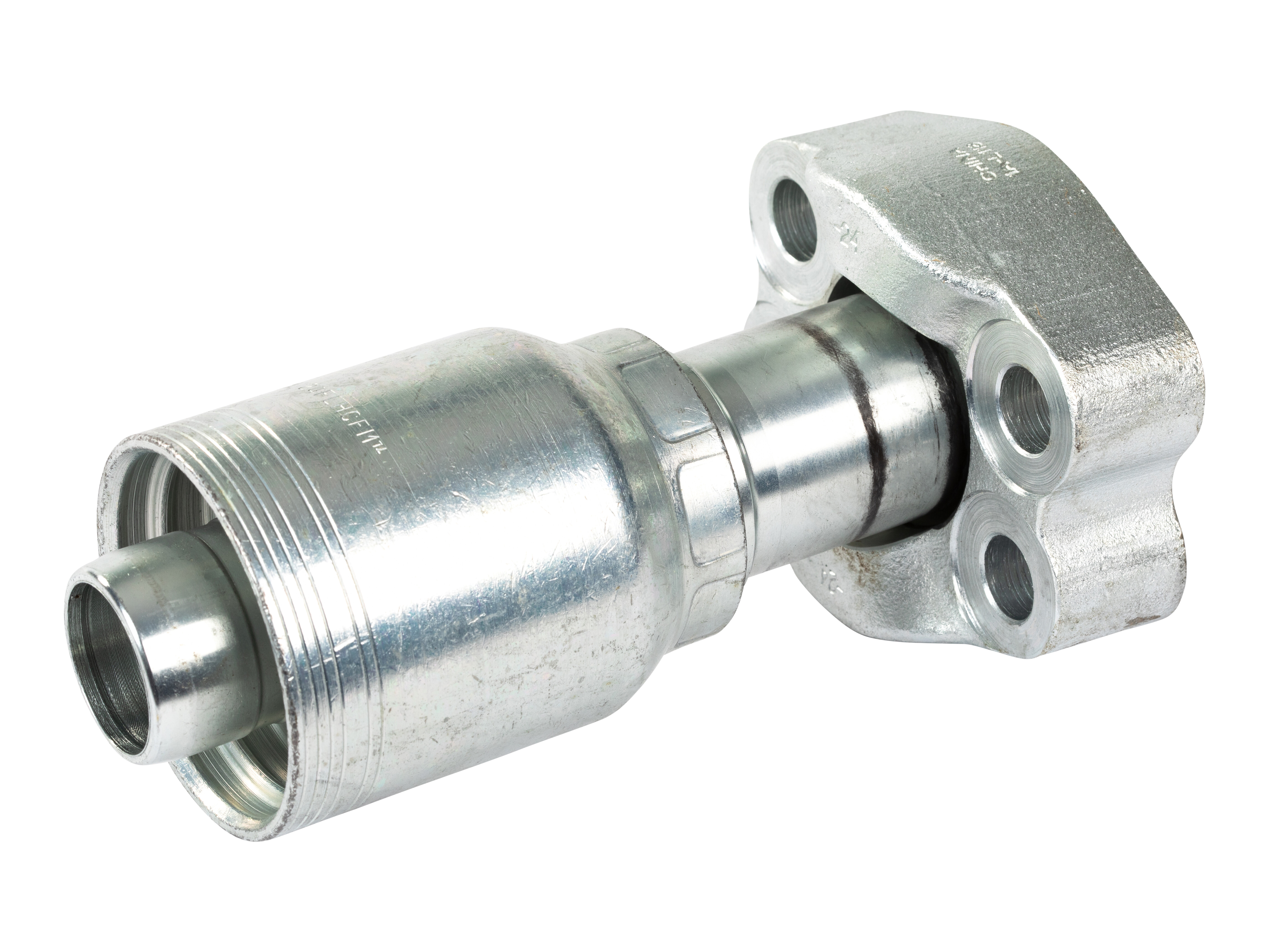

1.1/2" Coupling - 1.1/2" SAE6000 full flange

1.1/2" Coupling - 1.1/2" SAE6000 full flange

1.1/2" Coupling - 1.1/2" SAE6000 full flange

1.1/2" Coupling - 1.1/2" SAE6000 full flange

1.1/2" Coupling - 1.1/2" SAE6000 full flange

Connector description: SAE flanged hose connector with flange bracket included.

Artikelnummer:

24GSM24FLHCFM

Förpackningsstorlek:

1 st

Minsta beställningskvantitet:

1 st

Specifikationer
Dimensioner og forsendelse

Angle

0 °

Brand Name

Gates

Corrosion resistance

500 hours salt spray ASTM B-117

Diameter flange

63.5 mm

Dimension A

200 mm

Dimension B

105 mm

Dimension D

1.1/2 "

Dimension K

63.5 mm

Flange

1.1/2 "

Flange SAE/DIN

6000 PSI

Hose coupling type

With fixed ferrule

Hose size

1.1/2 "

Material

Steel

Model code

24GSM-24FLHCFM

O-ring

47,22X3,53 mm

Pressure max.

420 bar

REACH compliant

Yes

RoHs compliant

Yes

Shore

90

Standard ISO

ISO 6162-2

Standard SAE

SAE J518 Code 62

Surface treatment

TuffCoat™

Torque tightening

158 - 181 Nm

Pakke str.

1 st

Stregkode

297550

Brutto vægt

3,30 Kg

Netto vægt

3,30 Kg

Oprindelsesland

USA

Intrastat varekode

73269098

Produkt information

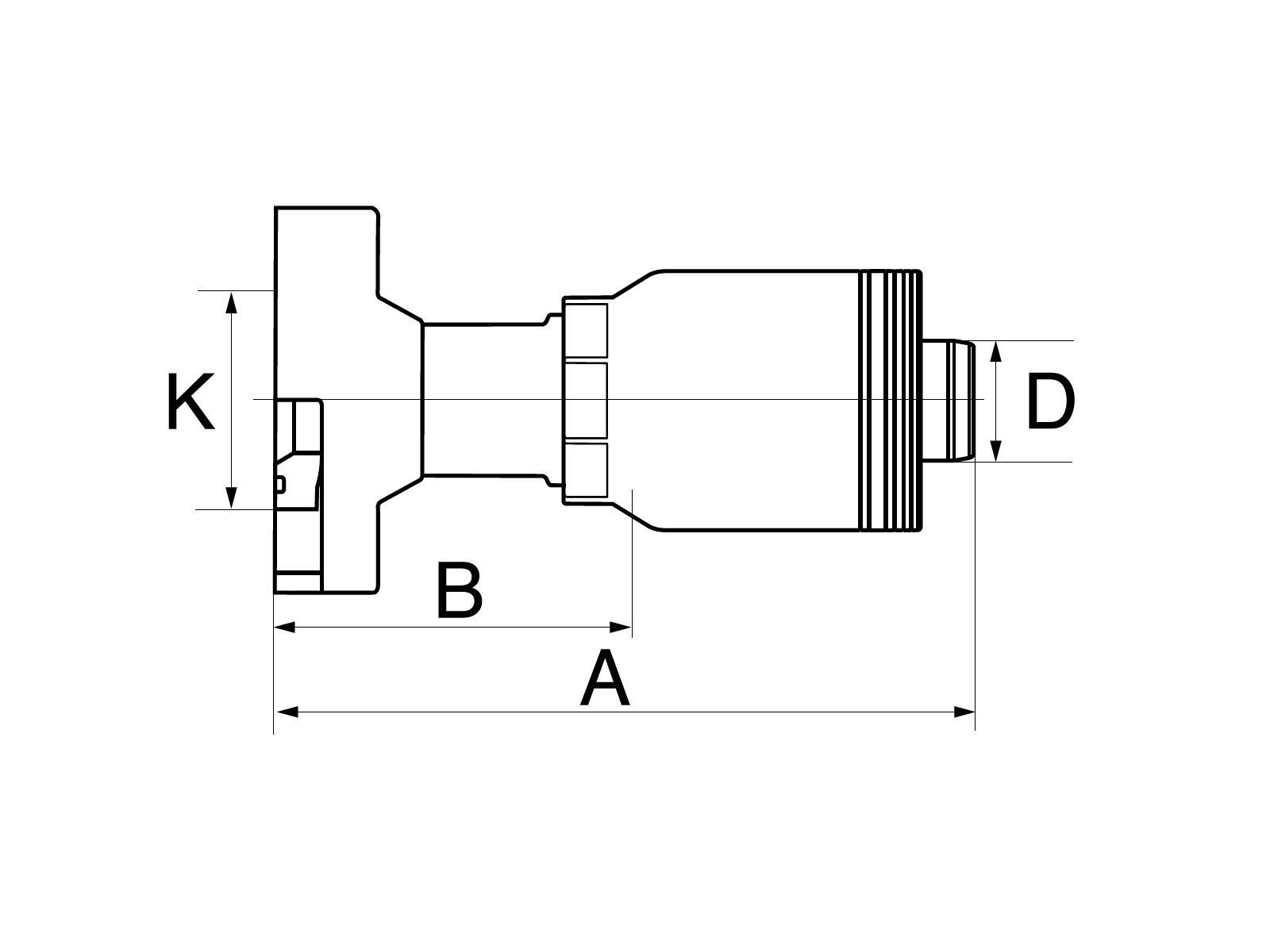

Målskitse

Connector description: SAE flanged hose connector with flange bracket included.

1.1/2" Coupling - 1.1/2" SAE6000 full flange
