Press. Reducing valve 40l/m 7-97bar CP230-2-B-0-E-C-XXX

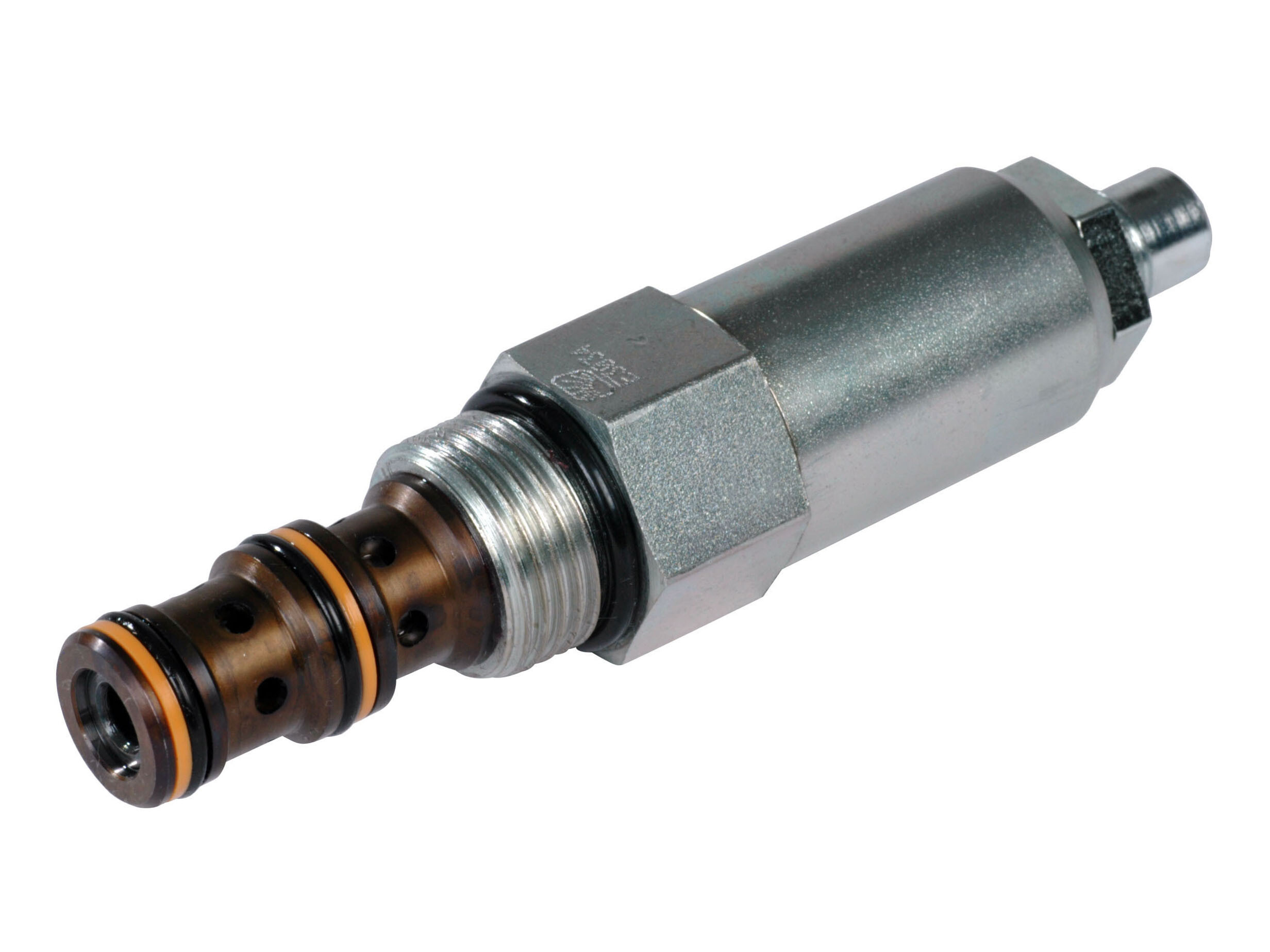

CP230-2, Pressure Reducing Valve, Non-Relieving, Direct Acting
This is a normally open, direct acting pressure reducing valve. Port 2 is open to port 1 until the setting is reached at which time the valve throttles the outlet flow limiting the pressure. Port 3 is a drain port only, as the valve does not contain a relief function. This valve is ideal for stable and precise control of a secondary pressure within a circuit.
Varenummer:
132364.000
Pakke str.:
1 st
Min. bestillingsenhed er:
1 st
Brand Name
Danfoss
Cavity
SDC10-3
Contamination level max.
20/18/14 - ISO 4406
Flow rate nominal LMin
40 lpm
Key size
25.4 mm
Material
Steel
Model code
CP230-2-B-0-E-C-XXX
Oil viscocity recommended
12 - 54 cSt
Pressure max.
210 bar
Pressure setting max.
97 bar
Pressure setting min.
7 bar
Sealing material
NBR
Torque tightening
41 - 47 Nm
Pakke str.
1 st
Stregkode
374689
Brutto vægt
0,25 Kg
Netto vægt
0,25 Kg
Oprindelsesland
ITA
Intrastat varekode
84812010
CP230-2, Pressure Reducing Valve, Non-Relieving, Direct Acting
This is a normally open, direct acting pressure reducing valve. Port 2 is open to port 1 until the setting is reached at which time the valve throttles the outlet flow limiting the pressure. Port 3 is a drain port only, as the valve does not contain a relief function. This valve is ideal for stable and precise control of a secondary pressure within a circuit.
