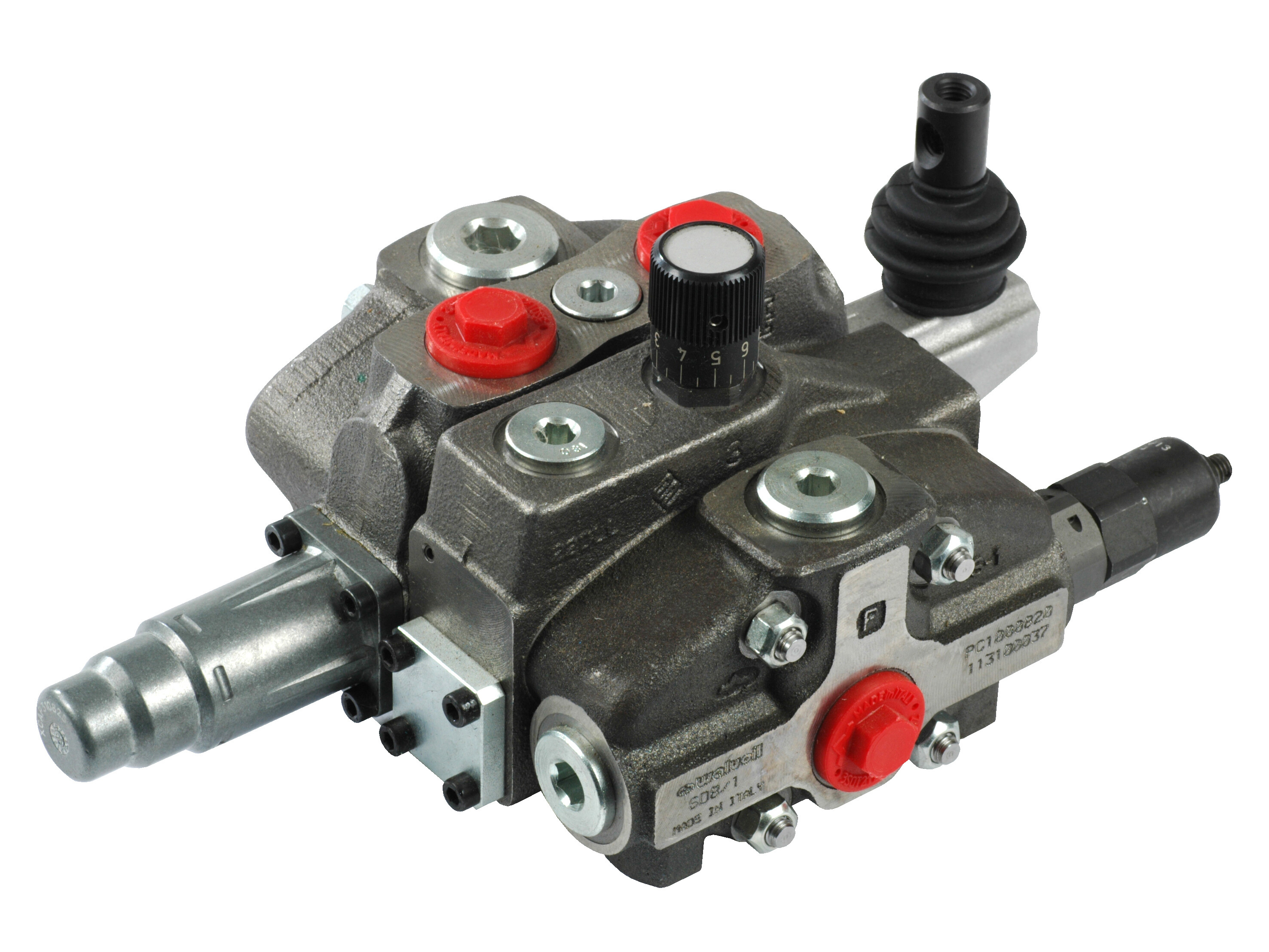

SD8/1/AC(YG3-175)/DFG/Q-111BL/ RC SD8 directional valve
1 section SD8 directional valve. Inlet: P-port in side of valve body. Built-in pressure relief valve.
Intermediate section: Pressure compensated flowcontrol valve with handwheel, adjustable 0 - 80 l/min. Excessive flow goes directly to port T.
Spool function: Double acting , 3 positions, Ports A and B closed in neutral position. Detent in position 1 and 2. Activated
Outlet: T-port in side of valve body (standard).
Artikelnummer:
113100037
Förpackningsstorlek:
1 st
Minsta beställningskvantitet:
1 st
Brand Name
Walvoil
Contamination level max.
-/19/16 - ISO 4406
Flow rate nominal LMin
80 lpm
Lever
Exclusive
Model code
SD8/1/AC(YG3-175)/DFG/Q-111BL/RC
Number of sections
1
Oil viscocity recommended
12 - 400 cSt
Pressure T max.
25 bar
Pressure carry-over
No
Pressure max.
315 bar
Pressure relief valve
Yes
Pressure setting max.
250 bar
Pressure setting min.
125 bar
Förpackningsstorlek
1 st
Streckkod
467862
Bruttovikt
10,55 Kg
Nettovikt
10,55 Kg
Ursprungsland
ITA
Intrastat artikelkod
84812010
1 section SD8 directional valve. Inlet: P-port in side of valve body. Built-in pressure relief valve.
Intermediate section: Pressure compensated flowcontrol valve with handwheel, adjustable 0 - 80 l/min. Excessive flow goes directly to port T.
Spool function: Double acting , 3 positions, Ports A and B closed in neutral position. Detent in position 1 and 2. Activated
Outlet: T-port in side of valve body (standard).
