Level Glass with level indicat Without thermometer l2=254 MM
Level switch closes with low fluid level
Partnumber:
SNK-254-V-C-O-12
Package size:
1 pcs
Min. order quantity is:
1 pcs

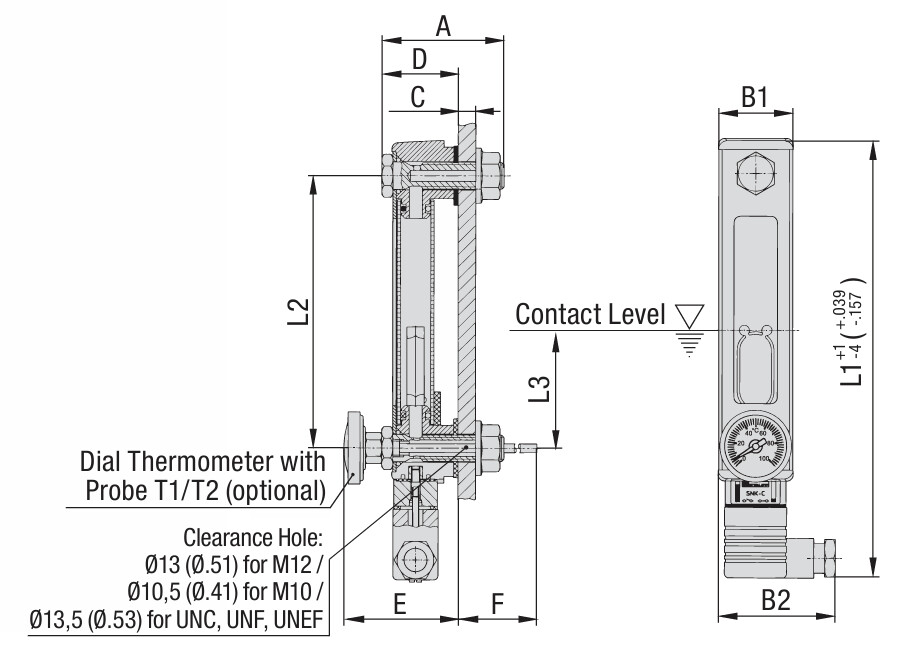

A
56 mm
B1
34,5 mm
B2
50 mm
C
8 mm
Contact Rating
Max. 5W
Contact function
Normally open
D
35,1 mm
E
51,5 mm
Field of application
Mineral and petroleum-based hydraulic fluids
L1
332 mm
L2
254 mm
L3
60 mm
Material
Aluminium, black powder-coated, Polyamide
Mounting holes spacing
254 mm
Pressure max.
2 bar
Protection class
IP 65
Sealing material
FKM/FPM (Viton®)
Switching Current
Max. 0,25 A
Switching Voltage
Max. 50 V AC/DC
Temperature max.
+80 °C
Temperature min.
-30 °C
Thread of bolt metric
M12
Torque tightening
8 Nm
Package size
1 pcs
Barcode
212828
Gross weight
0,35 Kg
Net weight
0,35 Kg
Country of origin
DEU
Intrastat code
84212980
Level switch closes with low fluid level
