Cover 3/4 SAE3000 flange
SAE flange cover for closing off a 3/4" SAE flange connection in a hydraulic line or component. Used to seal an open flange port during assembly, service work, or when a flange interface is not in use.
The cover is specified for SAE 3000 PSI flange series and matches the flange interface standards ISO 6162-1 and SAE J518 Code 61. Selection is primarily based on flange size and pressure series to ensure correct fit to the mating flange connection.
Typical Applications
- Closing unused SAE flange ports on hydraulic components
- Temporary sealing of flange connections during maintenance or assembly
Partnumber:
SAE3-3/4
Package size:
500 pcs
Min. order quantity is:
1 pcs

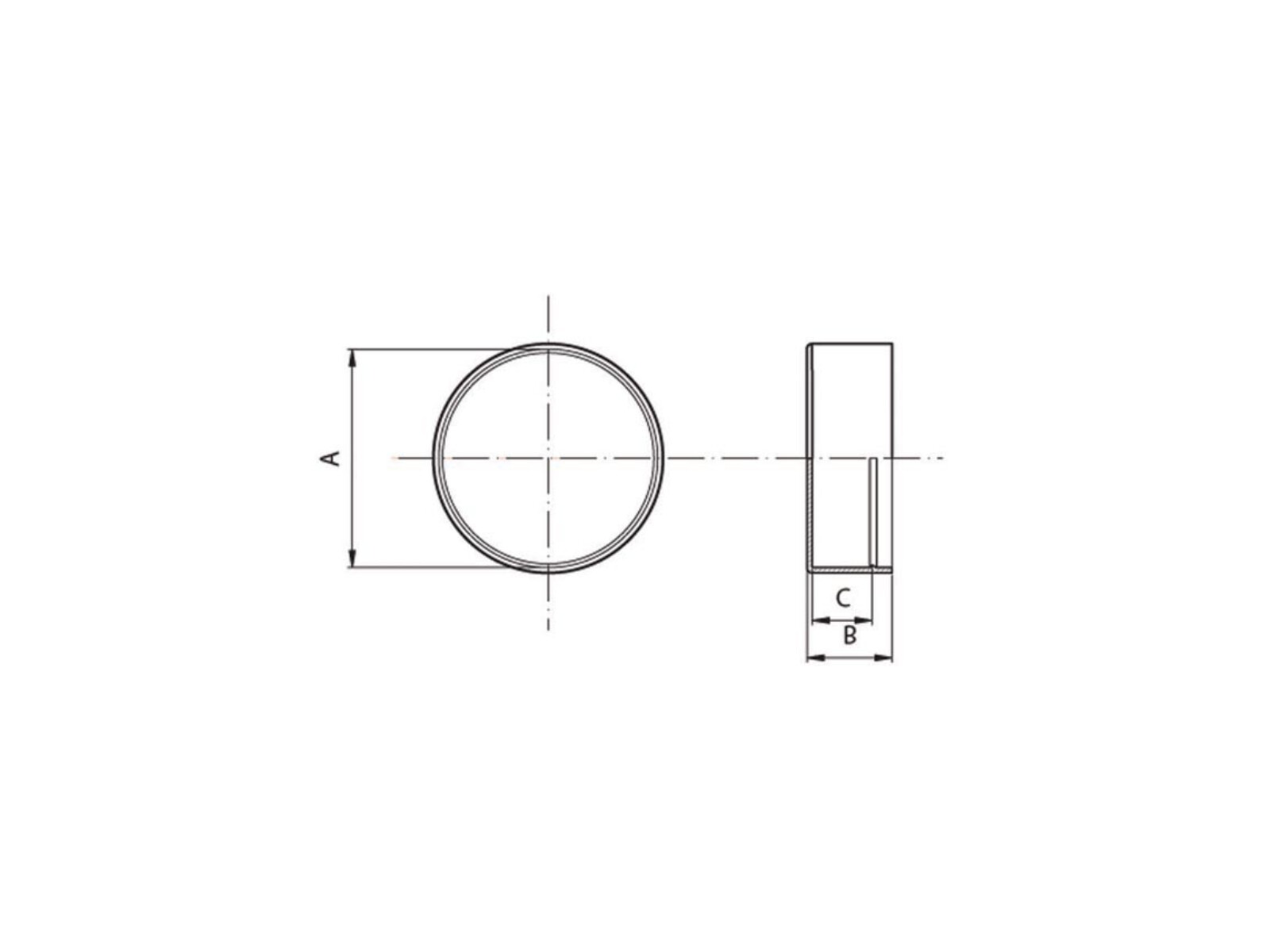

A
38,5 mm
B
12 mm
Brand Name
I.M.M Hydraulics
C
7,5 mm
Flange
3/4 "
Flange SAE/DIN
3000 PSI
Model code
PFS3-12
Standard ISO
ISO 6162-1
Standard SAE
SAE J518 Code 61
Package size
500 pcs
Barcode
183232
Gross weight
0,01 Kg
Net weight
0,01 Kg
Country of origin
ITA
Intrastat code
39235090
SAE flange cover for closing off a 3/4" SAE flange connection in a hydraulic line or component. Used to seal an open flange port during assembly, service work, or when a flange interface is not in use.
The cover is specified for SAE 3000 PSI flange series and matches the flange interface standards ISO 6162-1 and SAE J518 Code 61. Selection is primarily based on flange size and pressure series to ensure correct fit to the mating flange connection.
Typical Applications
- Closing unused SAE flange ports on hydraulic components
- Temporary sealing of flange connections during maintenance or assembly
