Screw coupling male RH - DN20 - M22x1.5 (15L)
Tube quick-coupling of screw-type.
Good for large oil-flows.
Partnumber:
RH12-2-L1522
Package size:
1 pcs
Min. order quantity is:
1 pcs
A
M22x1,5
Brand Name
Stauff
Connection
Screw
Diameter pipe
15 mm
Disconnection
Screw
Field of application
Construction Machinery
Flow rate nominal LMin
106 lpm

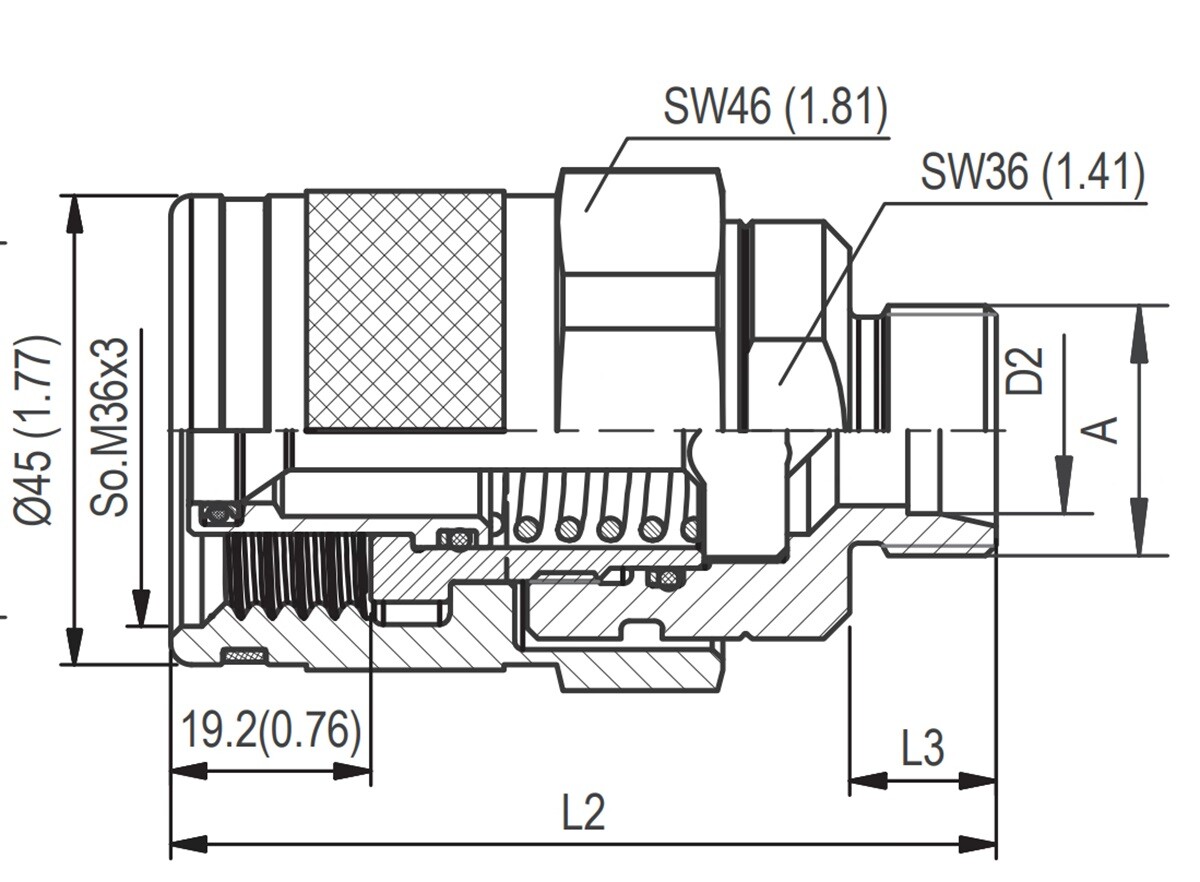

L2
78 mm
L3
12 mm
Material
Steel
Model code
QRC-RH12-2-L1522
Pressure burst min.
1260 bar
Pressure max. connected
420 bar
Pressurized connection
Allowed, max. 20 bar
Sealing material
NBR
Series
L
Size
1/2 "
Spillage
0,16 ml
Standard DIN
DIN 3861
Surface treatment
Zinc-Nickel plated
Temperature max.
+100 °C
Temperature min.
-20 °C
Thread outer metric
M22x1,5
ØD2
15 mm
Package size
1 pcs
Barcode
357189
Gross weight
0,54 Kg
Net weight
0,54 Kg
Country of origin
DEU
Intrastat code
84812010
Tube quick-coupling of screw-type.
Good for large oil-flows.
