Screw coupling male HS - DN12.5 - 3/8" BSP female
Standard DIN screw connection is often used for construction machinery.
Can be connected at system pressures up to approx. 50 bar.
Can be connected up to 33% of the working pressure with tools.
Partnumber:
HS10-2-IGF06
Package size:
1 pcs
Min. order quantity is:
1 pcs
A
G 3/8 BSP
Brand Name
Stauff
Connection
Screw
Disconnection
Screw
Field of application
Construction Machinery

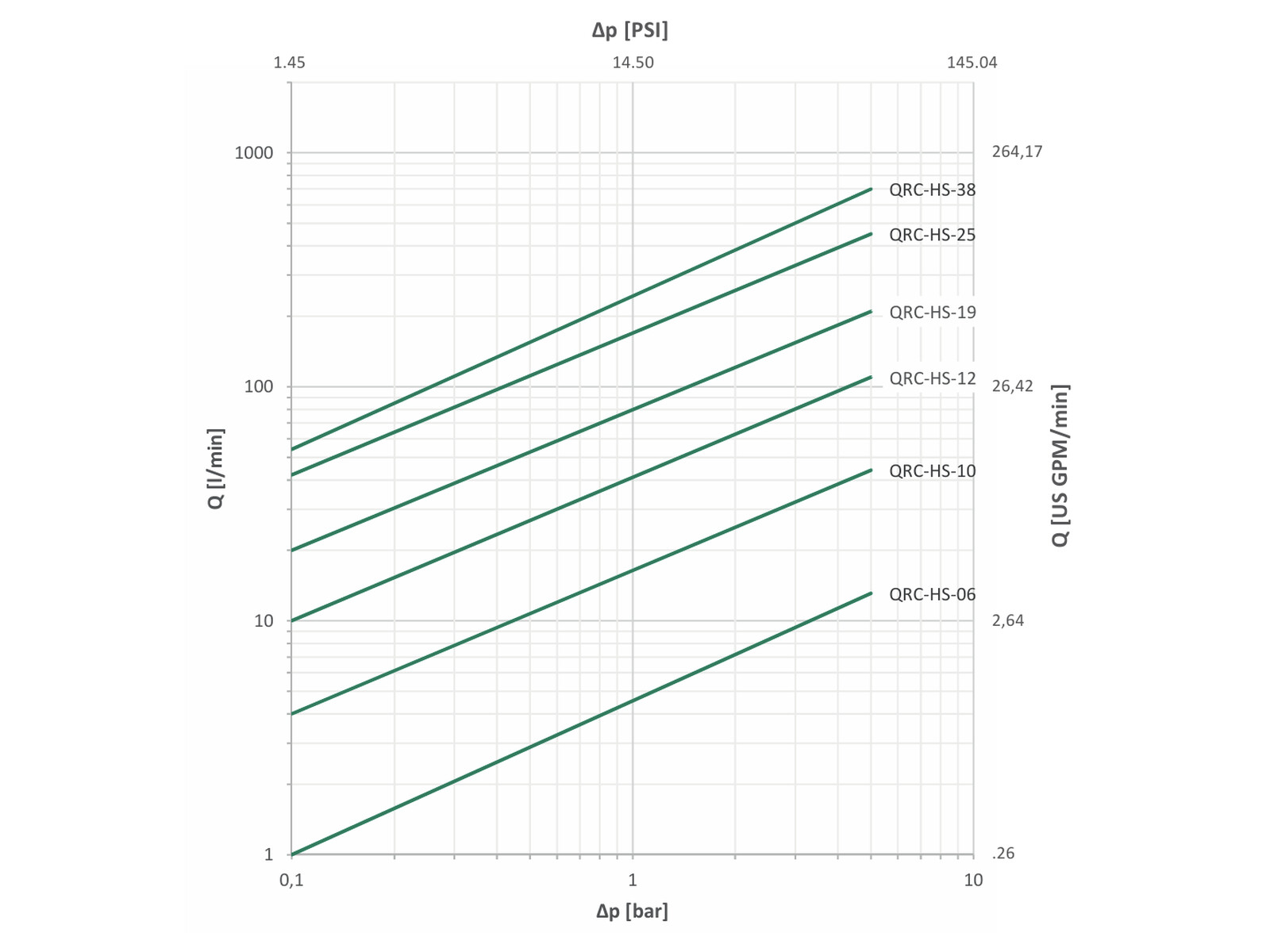

Flow rate nominal LMin
80 lpm
L2
64 mm
Material
Steel
Model code
QRC-HS-12-M-G06-B-W66
Pressure burst min.
1200 bar
Pressure max.
400 bar
Pressurized connection
Male Tip/Female Body up to 33% of the Working Pressure with Tools
SW
30, 36 mm
Sealing material
NBR
Size
1/2 "
Spillage
3,1 ml
Standard ISO
ISO 14541
Surface treatment
Zinc coating (CR III)
Temperature max.
+100 °C
Temperature min.
-25 °C
Thread DIN standard
DIN 3852-2-A
Thread ISO standard
ISO 11926-1, ISO 6149-1
Thread inner metric
M36x2
Package size
1 pcs
Barcode
434095
Gross weight
0,27 Kg
Net weight
0,27 Kg
Country of origin
DEU
Intrastat code
84812010
Standard DIN screw connection is often used for construction machinery.
Can be connected at system pressures up to approx. 50 bar.
Can be connected up to 33% of the working pressure with tools.
