Smörjslang 8,6 L:1,0m Press
Operating temperature:
for mediums to be pumped with "grease with corrosion protection additives": max. 70°C
Cracking pressure:
20°C >840bar (84 MPa, 12184 psi), 60°C >460 bar
Partnumber:
8151-86-23
Package size:
50 m
Min. order quantity is:
1 m
Area of use
Grease, Oil
Bend radius
20 mm
Brand Name
Groeneveld-BEKA
Color
Black

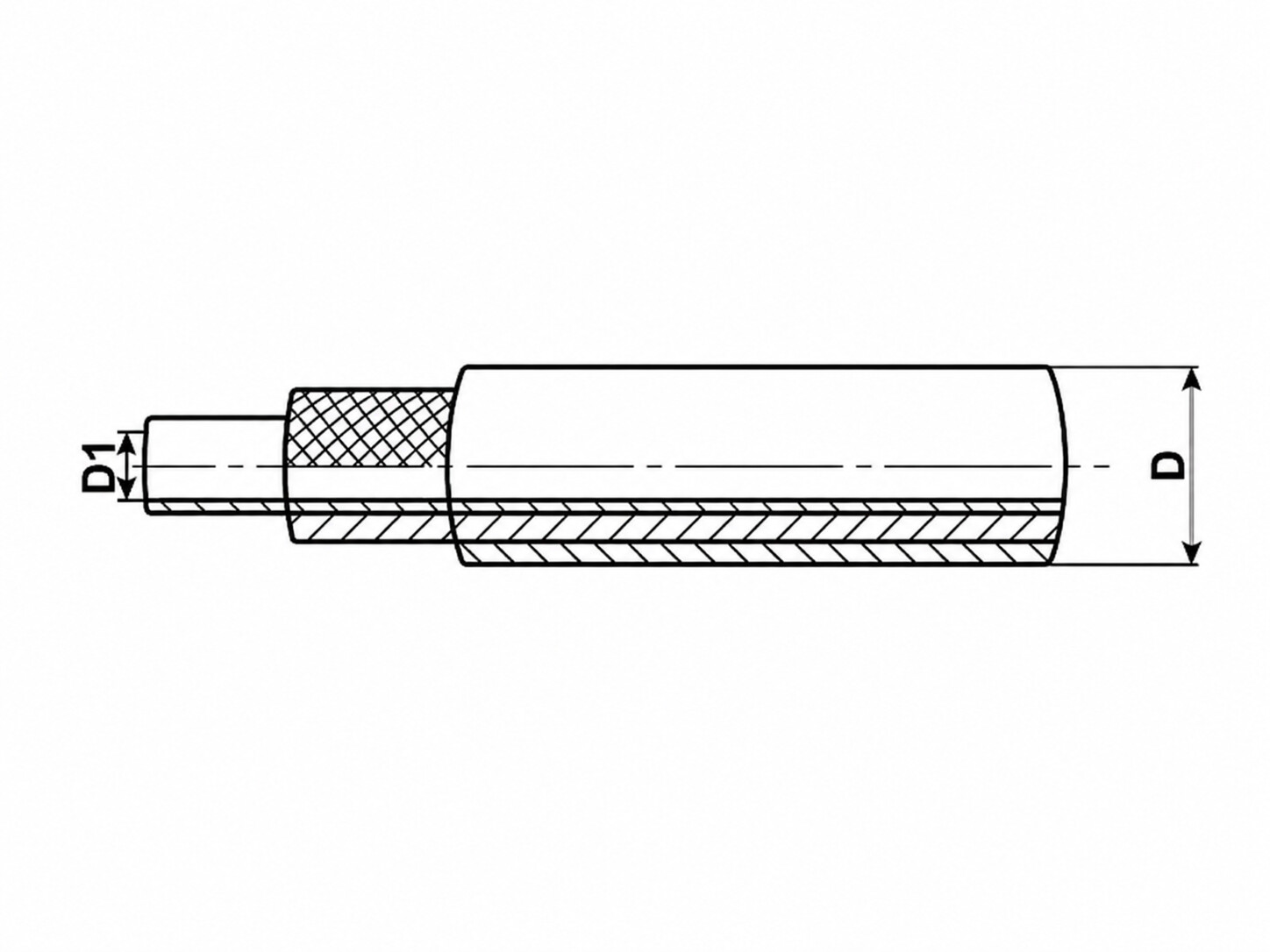

D
8,6 mm
D1
4 mm
Diameter inner
4 mm
Diameter outer
8.6 mm
Elongation at Break Casing
>380%
Elongation at Break Inner Tube
>50%
Elongation at Break Standard
DIN EN ISO 527
Grease
Empty
Hardness Shore Casing
>A 88 +/- 3
Hardness Shore Inner Tube
>D 60 +/- 3
Hardness Shore Standard
DIN EN ISO 868
Material
Polyamide PA6, Polyurethane
Material thickness
2.3 mm
Pressure burst min.
840 bar
Standard Cracking Pressure
DIN EN ISO 1402 pressurisation: 60s bar
Tear Strength Casing
>18N/mm2
Tear Strength Inner Tube
>30N/mm2
Tear Strength Standard
DIN EN ISO 527
Temperature max.
+80 °C
Temperature min.
-40 °C
Package size
50 m
Barcode
239829
Gross weight
2,41 Kg
Net weight
2,41 Kg
Country of origin
deu
Operating temperature:
for mediums to be pumped with "grease with corrosion protection additives": max. 70°C
Cracking pressure:
20°C >840bar (84 MPa, 12184 psi), 60°C >460 bar
