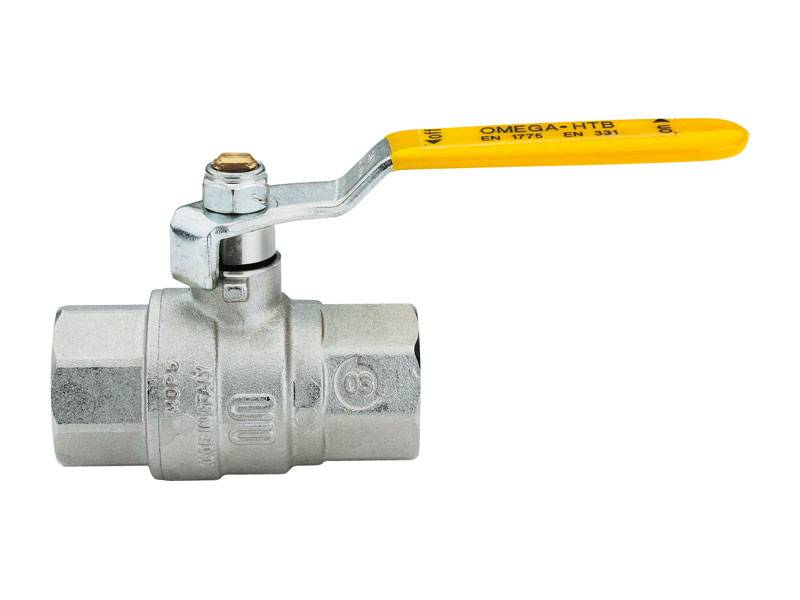

Ball valve 2 way, low pressure, long thread

SELECT VARIANT

Partnumber	Description	Thread	Pressure max.	Material
K60-04N/N-OMEGA	Matalap. 2-tie pallov. pitkäkierre	G 1/4 BSP	80 bar	Brass
K60-06N/N-OMEGA	Matalap. 2-tie pallov. pitkäkierre	G 3/8 BSP	80 bar	Brass
K60-08N/N-OMEGA	Matalap. 2-tie pallov. pitkäkierre	G 1/2 BSP	80 bar	Brass
K60-12N/N-OMEGA	Matalap. 2-tie pallov. pitkäkierre	G 3/4 BSP	80 bar	Brass
K60-16N/N-OMEGA	Matalap. 2-tie pallov. pitkäkierre	G 1 BSP	80 bar	Brass
K60-20N/N-OMEGA	Matalap. 2-tie pallov. pitkäkierre	G 1.1/4 BSP	60 bar	Brass
K60-24N/N-OMEGA	Matalap. 2-tie pallov. pitkäkierre	G 1.1/2 BSP	60 bar	Brass
K60-32N/N-OMEGA	Matalap. 2-tie pallov. pitkäkierre	G 2 BSP	60 bar	Brass
K60-40N/N-OMEGA	Matalap. 2-tie pallov. pitkäkierre	G 2.1/2 BSP	40 bar	Brass
K60-48N/N-OMEGA	Matalap. 2-tie pallov. pitkäkierre	G 3 BSP	25 bar	Brass

Activation

Manual

Brand Name

Enolgas

Lever

Inclusive

Manualoperated

Yes

Material

Brass

Material ball valve body

Brass

Material ball valve housing

Brass

Material quality

CW614N/CW617N

Number of ways/positions

2/2

Sealing material

Elastomer, PTFE (Teflon®)

Surface treatment

Nickel-plated

Temperature max.

+130

Temperature min.

-20

Thread form

Female x female
