Kaksoislukkoventtiili R3/8"
350bar, 35l/min, 1:7.1 "läpimenevä"
Partnumber:
VRDL380
Package size:
1 kpl
Min. order quantity is:
1 kpl

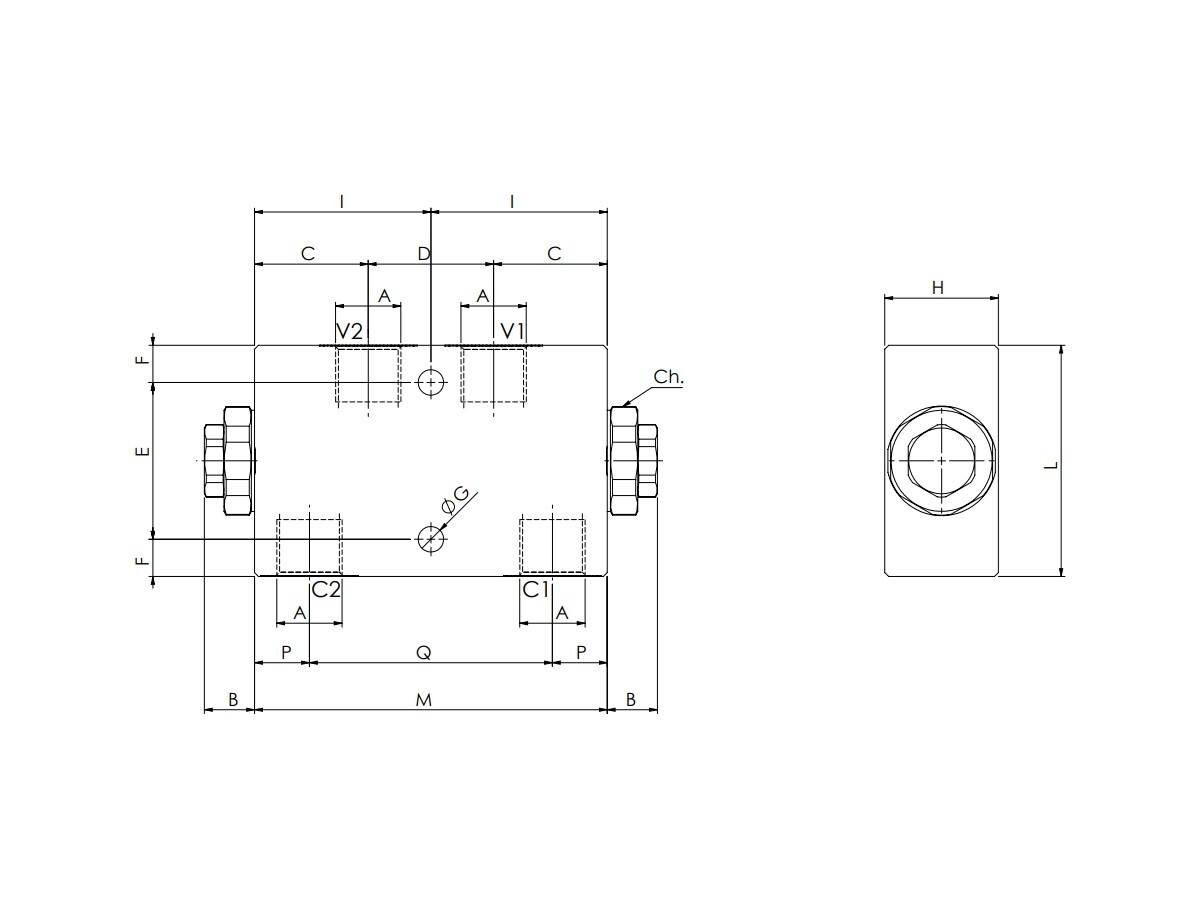

A
G 3/8 BSP
B
13 mm
Brand Name
Hydraspecma
C
29 mm
Contamination level max.
19/17/14 - ISO 4406
D
32 mm
Dimension F
9.5 mm
E
40 mm
Flow rate nominal LMin
35 lpm
G
6,5 mm
H
29 mm
I
45 mm
L
59 mm
Oil viscocity recommended
15 - 250 cSt
P
14 mm
Pilot ratio
1:7
Pressure max.
350 bar
Q
62 mm
Temperature ambient max.
+50 °C
Temperature ambient min.
-20 °C
Temperature max.
+80 °C
Temperature min.
-20 °C
Temperature working fluid max.
+80 °C
Thread
G 3/8 BSP
Type
Double
Package size
1 kpl
Barcode
411162
Gross weight
1,072 Kg
Net weight
1,072 Kg
Country of origin
IT
350bar, 35l/min, 1:7.1 "läpimenevä"
