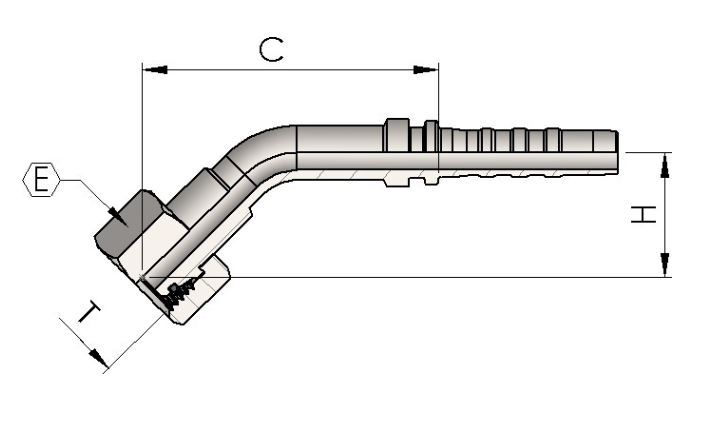

Insert MM 45°

SELECT VARIANT
Partnumber Description Hose size Angle Hose coupling type
NS0612RO18A45 3/8" Insert (No-Skive) - (12L) M18x1.5 nut - 45°-0285N06-18 3/8 " For separate ferrule
NS0612RO20A45 3/8" Insert (No-Skive) - (12S) M20x1.5 nut - 45°-0284N06-20 3/8 " For separate ferrule
NS0815RO22A45 1/2" Insert (No-Skive) - (15L) M22x1.5 nut - 45°-0285N08-22 1/2 " For separate ferrule
NS0816RO24A45 1/2" Insert (No-Skive) - (16S) M24x1.5 nut - 45°-0284N08-24 1/2 " For separate ferrule
NS1018RO26A45 5/8" Insert (No-Skive) - (18L) M22x1.5 nut - 45°-0285N10-26 5/8 " For separate ferrule
NS1020RO30B45 5/8" Insert (No-Skive) - (20S) M30x2 nut - 45° - 0284N10-30 5/8 " For separate ferrule
NS1220RO30B45 3/4" Insert (No-Skive) - (20S) M30x2 nut - 45° - 0284N12-30 3/4 " 45 ° For separate ferrule
NS1225RO36B45 3/4" Insert (No-Skive) - (25S) M36x2 nut - 45° - 0284N12-36 3/4 " 45 ° For separate ferrule
NS1625RO36B45 1" Insert (No-Skive) - (25S) M36x2 nut - 45° - 0284N126-36 1 " 45 ° For separate ferrule
NS1628RO36B45 1" Insert (No-Skive) - (28L) M36x2 nut - 45° - 0285N16-36 1 " 45 ° For separate ferrule
NS1630RO42B45 1" Insert (No-Skive) - (30S) M42x2 nut - 45° - 0284N16-42 1 " 45 ° For separate ferrule
NS2035RO45B45 1.1/4" Insert (No-Skive) - (35L) M45x2 nut - 45°-0285N20-45 1.1/4 " 45 ° For separate ferrule
NS2038RO52B45 1.1/4" Insert (No-Skive) - (38S) M52x2 nut - 45° 0284N20-52 1.1/4 " 45 ° For separate ferrule
NS2438RO52B45 1.1/2" Insert (No-Skive) - (38S) M52x2 nut - 45° 0284N24-52 1.1/2 " 45 ° For separate ferrule
NS2442RO52B45 1.1/2" Insert (No-Skive) - (42L) M52x2 nut - 45°-0285N20-45 1.1/2 " 45 ° For separate ferrule
Brand Name
I.M.M Hydraulics

Hose coupling type
For separate ferrule
