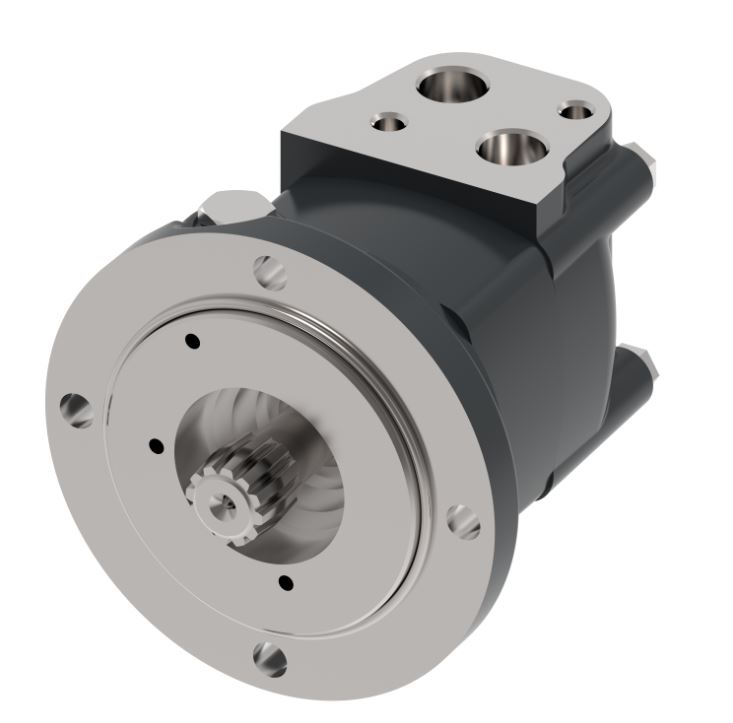

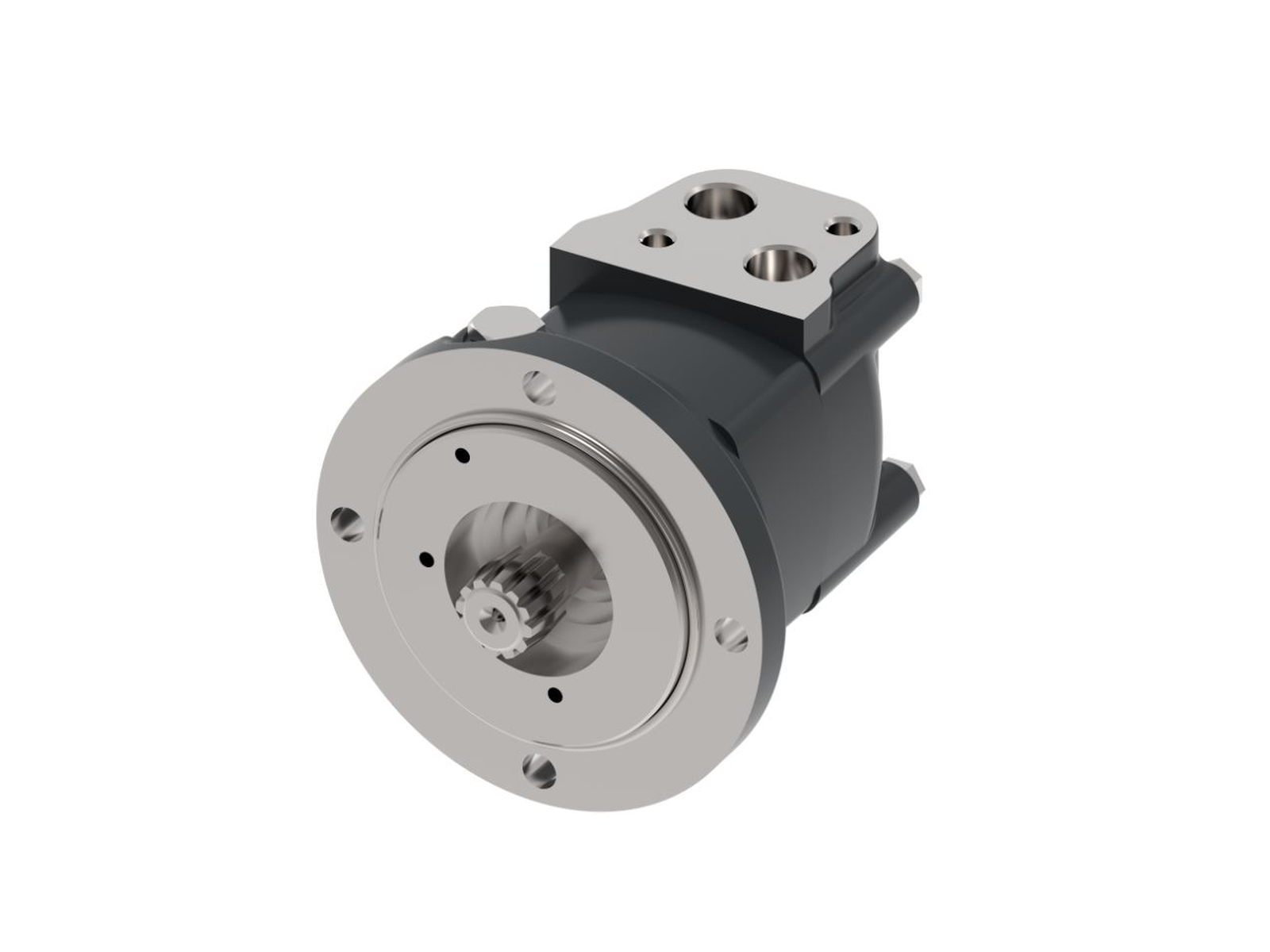

XL2 Short

SELECT VARIANT

Partnumber	Description	Shaft type	Displacement	Continuous rotation max.	Torque continuous max.
631AG00025A	XL2 100 No output Shaft 4-hole 106.4	Spline	100 cm3	739 rpm	385 Nm
631AG00026A	XL2 130 No output Shaft 4-hole 106.4	Spline	130 cm3	575 rpm	385 Nm
631AG00033A	XL2 160 No output Shaft 4-hole 106.4	Spline	160 cm3	477 rpm	455 Nm
631AG00056A	XL2 80 No output Shaft 4-hole 106.4	Spline	80 cm3	908 rpm	235 Nm
631AG00057A	XL2 195 No output Shaft 4-hole 106.4	Spline	195 cm3	385 rpm	540 Nm
631AG00058A	XL2 245 No output Shaft 4-hole 106.4	Spline	245 cm3	308 rpm	660 Nm
631AG00059A	XL2 305 No output Shaft 4-hole 106.4	Spline	305 cm3	246 rpm	765 Nm
631AG00060A	XL2 395 No output Shaft 4-hole 106.4	Spline	395 cm3	191 rpm	775 Nm

Brand Name

Danfoss

Contamination level max.

20/18/13 - ISO 4406

Continuous Flow Max.

Drainport

G 1/4

Flange style diameter

199

Holes circle

125

Inlet Pressure Max.

310

Integrated check valve

Max. operating temperature

Model code

XL2

Number of mounting holes

Shaft Seal Type

None

Shaft type

Spline

Temperature max.

+180

Temperature min.

-30

Working ports

G 1/2
