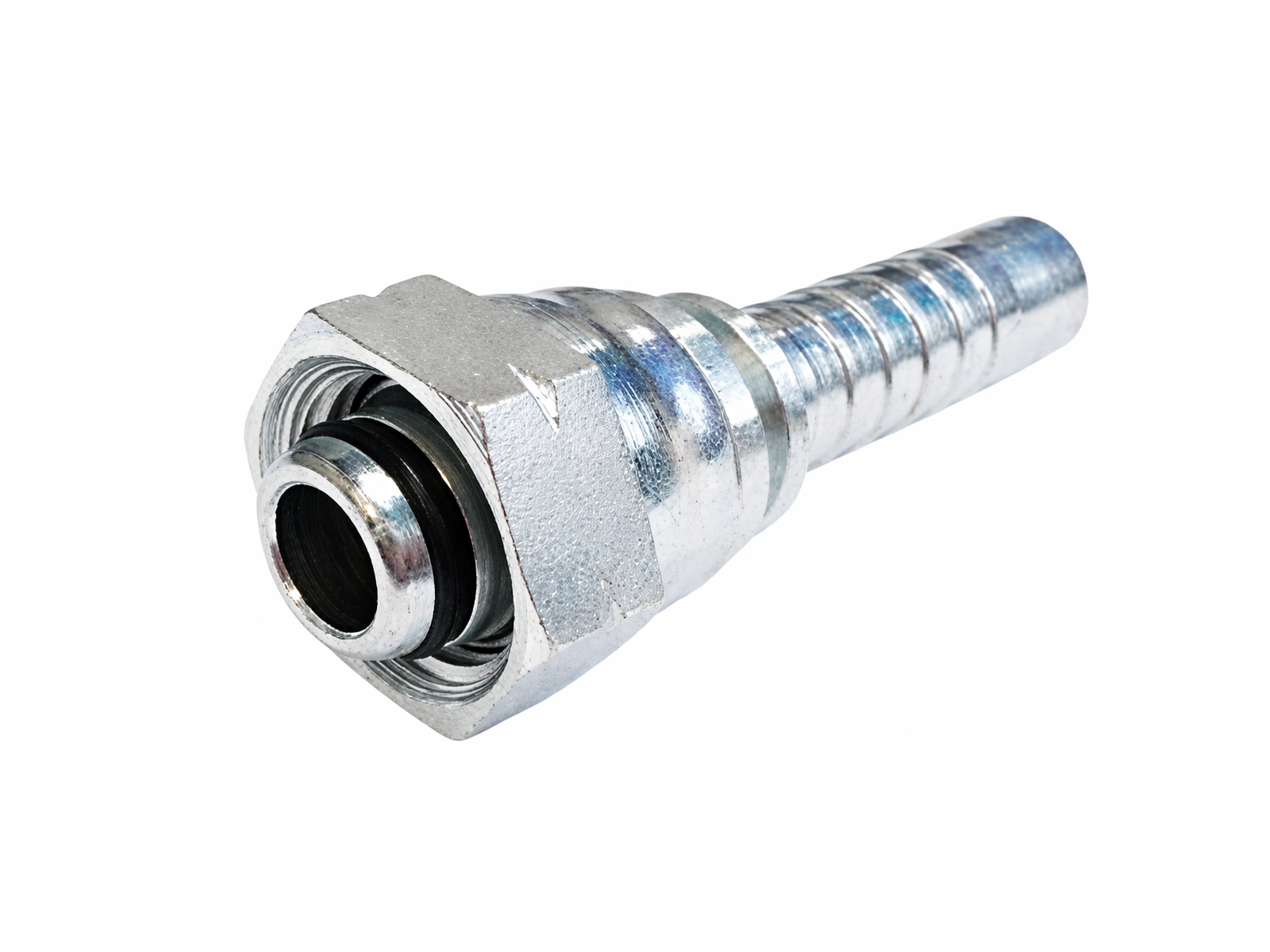

Metric union nut, 24° cone face, LIGHT series, "RO"

VÄLJ VARIANT

Artikelnummer	Beskrivning	Hose size	Hose coupling type	Material
P0306RO12A	Insert 3/16" - M12x1.5 nut 06L	3/16 "	For separate ferrule	Steel
P0308RO14A	Insert 3/16" - M14x1.5 nut 08L	3/16 "	For separate ferrule	Steel
P0406RO12A	Insert 1/4" - M12x1.5 nut 06L	1/4 "	For separate ferrule	Steel
P0408RO14A	Insert 1/4" - M14x1.5 nut 08L	1/4 "	For separate ferrule	Steel
P0410RO16A	Insert 1/4" - M16x1.5 nut 10L	1/4 "	For separate ferrule	Steel
P0412RO18A	Insert 1/4" - M18x1.5 nut 12L	1/4 "	For separate ferrule	Steel
P0508RO14A	Insert 5/16" - M14x1.5 nut 08L	5/16 "	For separate ferrule	Steel
P0510RO16A	Insert 5/16" - M16x1.5 nut 10L	5/16 "	For separate ferrule	Steel
P0512RO18A	Insert 5/16" - M18x1.5 nut 12L	5/16 "	For separate ferrule	Steel
P0610RO16A	Insert 3/8" - M16x1.5 nut 10L	3/8 "	For separate ferrule	Steel
P0612RO18A	Insert 3/8" - M18x1.5 nut 12L	3/8 "	For separate ferrule	Steel
P0615RO22A	Insert 3/8" - M22x1.5 nut 15L	3/8 "	For separate ferrule	Steel
P0812RO18A	Insert 1/2" - M18x1.5 nut 12L	1/2 "	For separate ferrule	Steel
P0815RO22A	Insert 1/2" - M22x1.5 nut 15L	1/2 "	For separate ferrule	Steel
P0818RO26A	Insert 1/2" - M26x1.5 nut 18L	1/2 "	For separate ferrule	Steel
P1015RO22A	Insert 5/8" - M22x1.5 nut 15L	5/8 "	For separate ferrule	Steel
P1018RO26A	Insert 5/8" - M26x1.5 nut 18L	5/8 "	For separate ferrule	Steel
P1022RO30B	Insert 5/8" - M30x2 nut 22L	5/8 "	For separate ferrule	Steel
P1218RO26A	Insert 3/4" - M26x1.5 nut 18L	3/4 "	For separate ferrule	Steel
P1222RO30B	Insert 3/4" - M30x2 nut 22L	3/4 "	For separate ferrule	Steel
P1228RO36B	Insert 3/4" - M36x2 nut 28L	3/4 "	For separate ferrule	Steel
P1628RO36B	Insert 1" - M36x2 nut 28L	1 "	For separate ferrule	Steel
P2035RO45B	Insert 1.1/4" - M45x2 nut 35L	1.1/4 "	For separate ferrule	Steel
P2442RO52B	Insert 1.1/2" - M52x2 nut 42L	1.1/2 "	For separate ferrule	Steel

Specifikationer
Dimensioner och frakt (välj variant)

Angle

Brand Name

I.M.M Hydraulics

Corrosion resistance

720 hours salt spray DIN EN ISO 9227

Hose coupling type

For separate ferrule

Material

Steel

Sealing material

NBR

Series

Surface treatment

Electro-galvanized / White chromatized

Temperature max.

+100

Temperature min.

-30

Produktinformation
Måttskiss (välj variant)

Metric union nut, 24° cone face, LIGHT series, "RO"
