    • JIC union nut, 37° cone face, 90° elbow, "NJ90" stainless

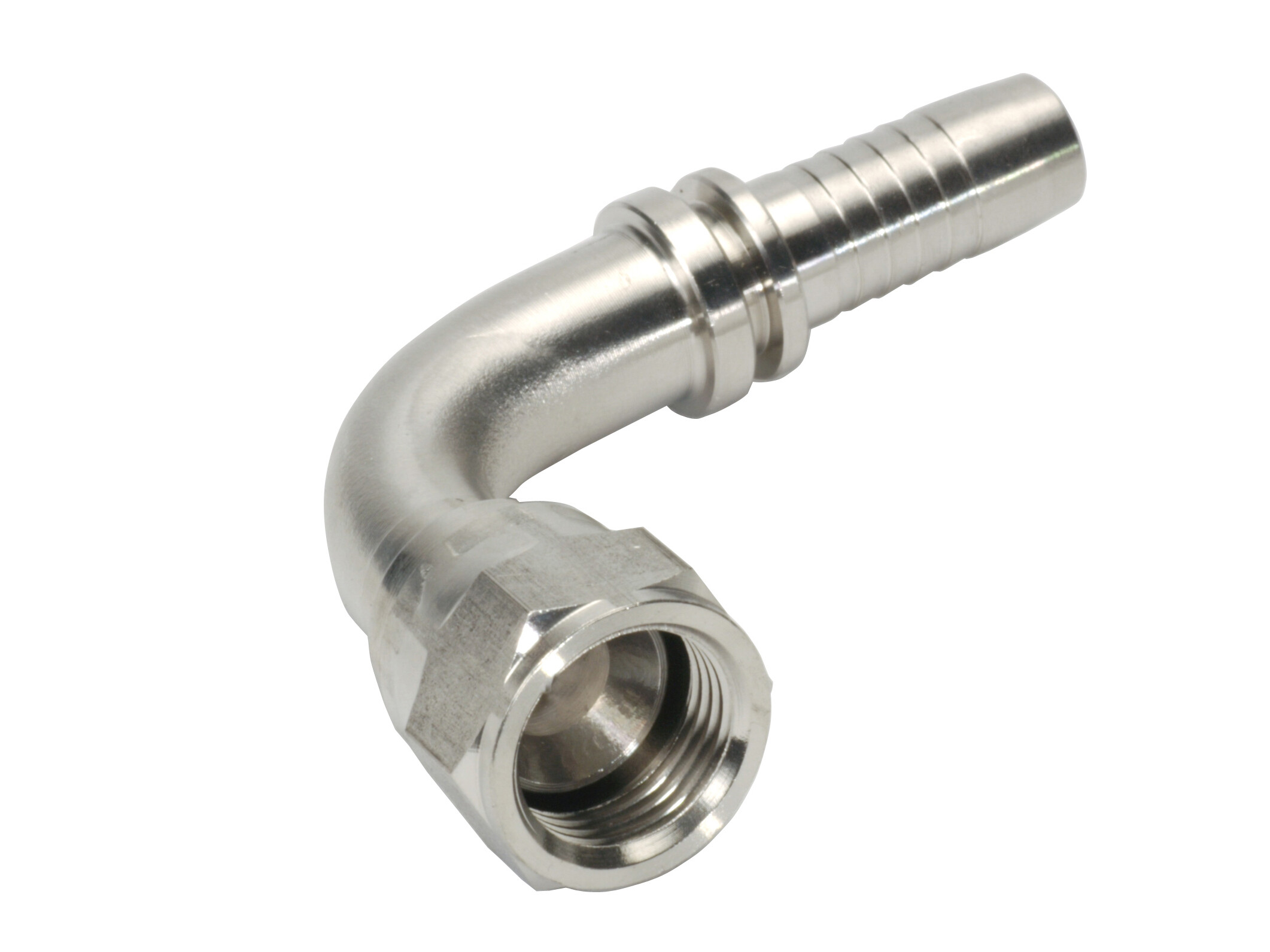

    JIC union nut, 37° cone face, 90° elbow, "NJ90" stainless

    Välj variant
    VÄLJ VARIANT
    VÄLJ VARIANT
    Artikelnummer Beskrivning Gänga Slangdimension Vinkel Slangkopplingstyp
    R0304NJ90 3/16" Insert - 7/16"-20 JIC female - 90° - AISI316 7/16-20 JIC 3/16 " 90 ° For separate ferrule
    R0404NJ90 1/4" Insert - 7/16"-20 JIC female - 90° - AISI316 7/16-20 JIC 1/4 " 90 ° For separate ferrule
    R0405NJ90 1/4" Insert - 1/2"-20 JIC female - 90° - AISI316 1/2-20 JIC 1/4 " 90 ° For separate ferrule
    R0406NJ90 1/4" Insert - 9/16"-18 JIC female - 90° - AISI316 9/16-18 JIC 1/4 " 90 ° For separate ferrule
    R0505NJ90 5/16" Insert - 1/2"-20 JIC female - 90° - AISI316 1/2-20 JIC 5/16 " 90 ° For separate ferrule
    R0506NJ90 5/16" Insert - 9/16"-18 JIC female - 90° - AISI316 9/16-18 JIC 5/16 " 90 ° For separate ferrule
    R0606NJ90 3/8" Insert - 9/16"-18 JIC female - 90° - AISI316 9/16-18 JIC 3/8 " 90 ° For separate ferrule
    R0608NJ90 3/8" Insert - 3/4"-16" JIC female - 90° - AISI316 3/4-16 JIC 3/8 " 90 ° For separate ferrule
    R0610NJ90 3/8" Insert - 7/8"-14 JIC female - 90° - AISI316 7/8-14 JIC 3/8 " 90 ° For separate ferrule
    R0808NJ90 1/2" Insert - 3/4"-16" JIC female - 90° - AISI316 3/4-16 JIC 1/2 " 90 ° For separate ferrule
    R0810NJ90 1/2" Insert - 7/8"-14 JIC female - 90° - AISI316 7/8-14 JIC 1/2 " 90 ° For separate ferrule
    R1010NJ90 5/8" Insert - 7/8"-14 JIC female - 90° - AISI316 7/8-14 JIC 5/8 " 90 ° For separate ferrule
    R1012NJ90 5/8" Insert - 1.1/16"-12 JIC female - 90° - AISI316 1.1/16-12 JIC 5/8 " 90 ° For separate ferrule
    R1212NJ90 3/4" Insert - 1.1/16"-12 JIC female - 90° - AISI316 1.1/16-12 JIC 3/4 " 90 ° For separate ferrule
    R1616NJ90 1" Insert - 1.5/16"-12 JIC female - 90° - AISI316 1.5/16-12 JIC 1 " 90 ° For separate ferrule
    R2020NJ90 1.1/4" Insert - 1.5/8"-12 JIC female - 90° - AISI316 1.5/8-12 JIC 1.1/4 " 90 ° For separate ferrule
    R2424NJ90 1.1/2" Insert - 1.7/8"-12 JIC female - 90° - AISI316 1.7/8-12 JIC 1.1/2 " 90 ° For separate ferrule
    Materialkvalitet
    1.4571 / AISI316Ti
    Slangkopplingstyp
    For separate ferrule
    Tillverkningsmaterial
    Stainless steel
    Vinkel
    90
