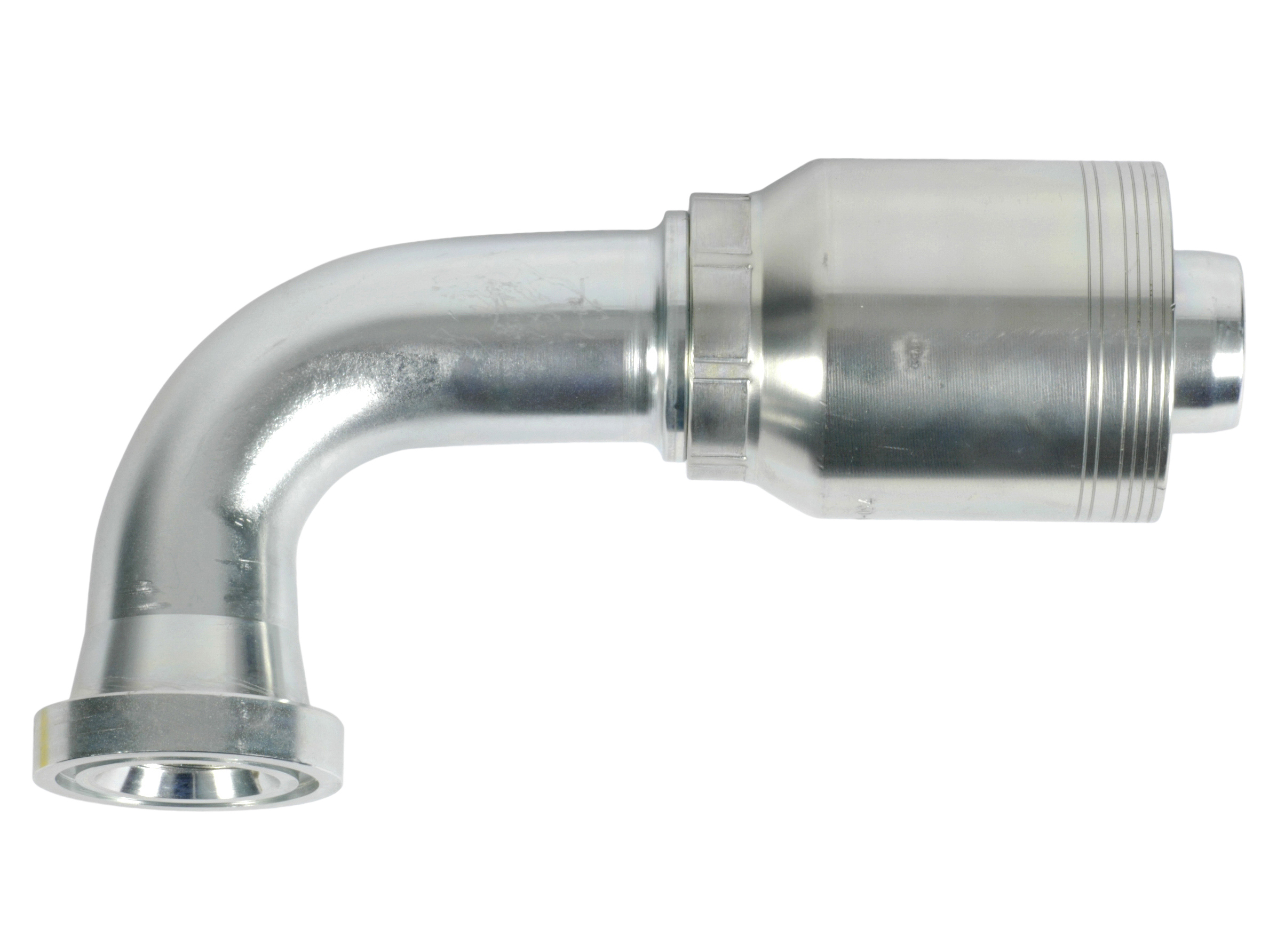

Flange coupling SAE 6000 PSI - 90° - (FLH90 - PH90)

1.1/2" Coupling - 1.1/2" SAE6000 flange - 90°

1.1/2" Coupling - 1.1/2" SAE6000 flange - 90° 150mm drop

1.1/2" Coupling - 2" SAE6000 full flange - 90°

1.1/2" Insert - 2" SA6000 flange - 90°

2" Coupling - 2" SAE6000 flange

2" Coupling - 2" SAE6000 full flange - 90° 32GSM32FLHCFM90S

SELECT VARIANT

Partnumber	Description	Material	Hose size	Angle	Hose coupling type
GSM2424PH90	1.1/2" Coupling - 1.1/2" SAE6000 flange - 90°		1.1/2 "	90 °	With fixed ferrule
GSM2424PH90150	1.1/2" Coupling - 1.1/2" SAE6000 flange - 90° 150mm drop	Steel	1.1/2 "	90 °	With fixed ferrule
GSM2424PHF90	1.1/2" Coupling - 2" SAE6000 full flange - 90°	Steel	1.1/2 "	90 °	With fixed ferrule
GSM2432PH90	1.1/2" Insert - 2" SA6000 flange - 90°		1.1/2 "	90 °	With fixed ferrule
GSM3232PH90	2" Coupling - 2" SAE6000 flange		2 "	90 °	With fixed ferrule
GSM3232PHF90	2" Coupling - 2" SAE6000 full flange - 90° 32GSM32FLHCFM90S	Steel	2 "	90 °	With fixed ferrule

Angle

Brand Name

Gates

Flange SAE/DIN

6000 PSI

Hose coupling type

With fixed ferrule

Pressure max.

420
