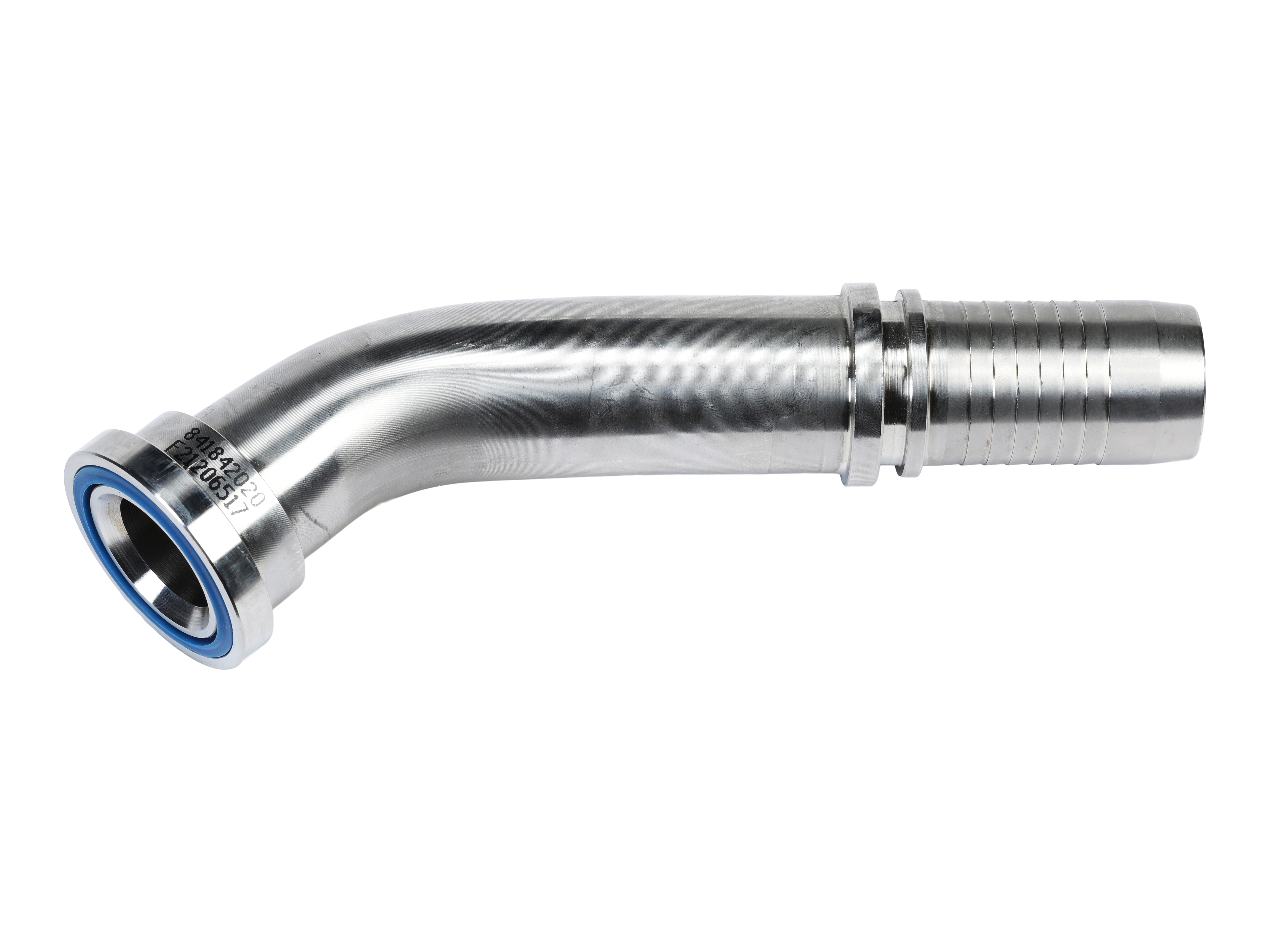

Flange insert SAE 3000 PSI - 45° - stainless

SFP623-08

5/8" Insert - 3/4" SAE3000 flange - 45° - AISI316

3/4" Insert - 3/4" SAE3000 flange - 45° - AISI316

1" Insert - 1" SAE3000 flange - 45° - AISI316

1.1/4" Insert - 1.1/4" SAE3000 flange - 45° - AISI316

1.1/2" Insert - 1.1/2" SAE3000 flange - 45° - AISI316

2" Insert - 2" SAE3000 flange - 45° - AISI316

SELECT VARIANT

Partnumber	Description	Flange	Hose size	Angle	Hose coupling type
R0808PA45	SFP623-08			45 °	For separate ferrule
R1012PA45	5/8" Insert - 3/4" SAE3000 flange - 45° - AISI316	3/4 "	5/8 "	45 °	For separate ferrule
R1212PA45	3/4" Insert - 3/4" SAE3000 flange - 45° - AISI316	3/4 "	3/4 "	45 °	For separate ferrule
R1616PA45	1" Insert - 1" SAE3000 flange - 45° - AISI316	1 "	1 "	45 °	For separate ferrule
R2020PA45	1.1/4" Insert - 1.1/4" SAE3000 flange - 45° - AISI316	1.1/4 "	1.1/4 "	45 °	For separate ferrule
R2424PA45	1.1/2" Insert - 1.1/2" SAE3000 flange - 45° - AISI316	1.1/2 "	1.1/2 "	45 °	For separate ferrule
R3232PA45	2" Insert - 2" SAE3000 flange - 45° - AISI316	2 "	2 "	45 °	For separate ferrule

Angle

Flange SAE/DIN

3000 PSI

Hose coupling type

For separate ferrule

Material

Stainless steel

Material quality

1.4571 / AISI316Ti
