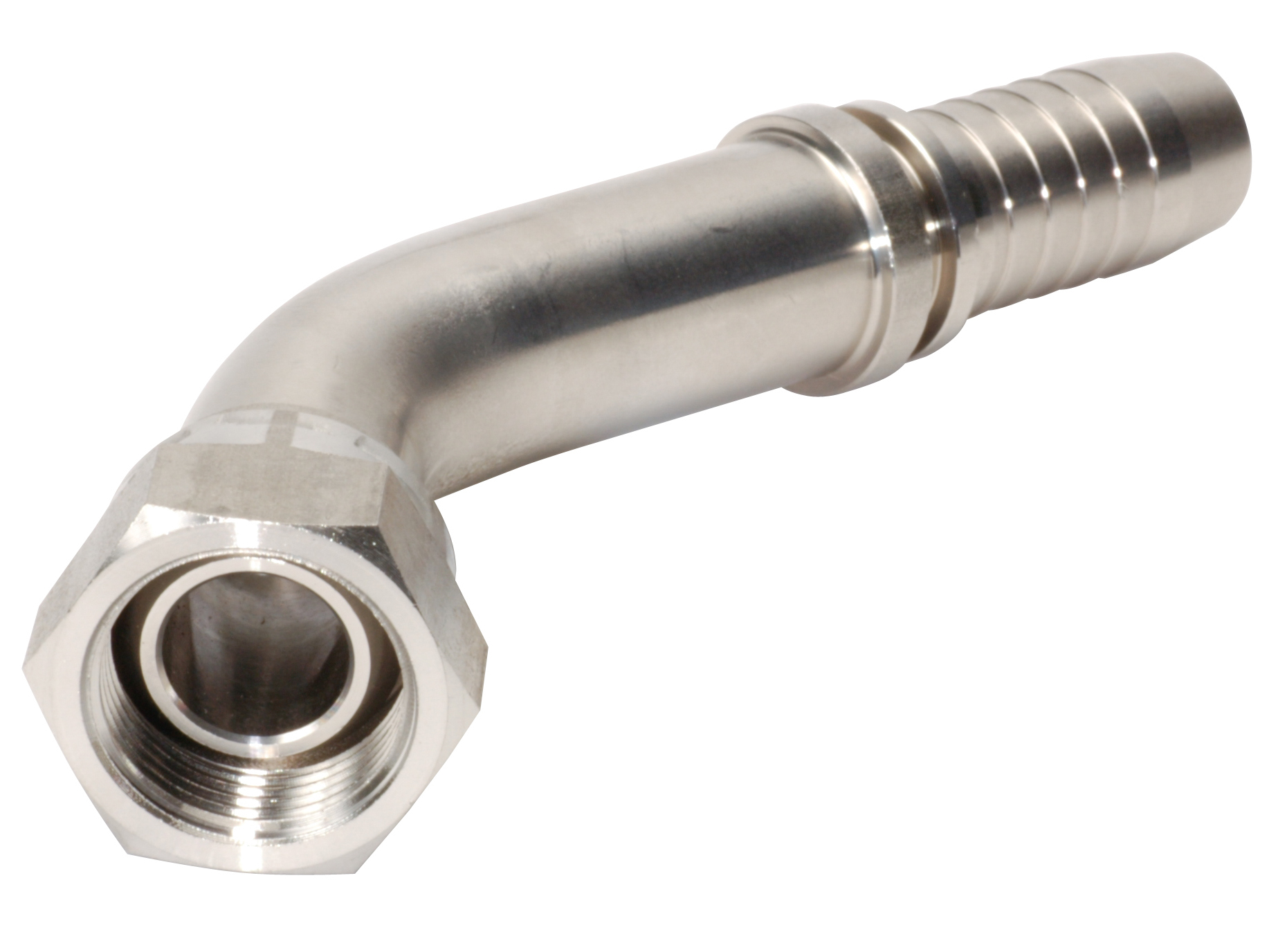

BSP union nut, 60° cone face, 45° elbow "NU45" stainless

BSP union nut, 60° cone face, 45° elbow "NU45" stainless

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Thread Hose size Angle Hose coupling type
R0404NU45 1/4" Insert - 1/4" BSP female - 45° - AISI316 G 1/4 BSP 1/4 " 45 ° For separate ferrule
R0506NU45 5/16" Insert - 3/8" BSP female - 45° - AISI316 G 3/8 BSP 5/16 " 45 ° For separate ferrule
R0606NU45 3/8" Insert - 3/8" BSP female - 45° - AISI316 G 3/8 BSP 3/8 " 45 ° For separate ferrule
R0608NU45 3/8" Insert - 1/2" BSP female - 45° - AISI316 G 1/2 BSP 3/8 " 45 ° For separate ferrule
R0808NU45 1/2" Insert - 1/2" BSP female - 45° - AISI316 G 1/2 BSP 1/2 " 45 ° For separate ferrule
R1212NU45 3/4" Insert - 3/4" BSP female - 45° - AISI316 G 3/4 BSP 3/4 " 45 ° For separate ferrule
R1616NU45 1" Insert - 1" BSP female - 45° - AISI316 G 1 BSP 1 " 45 ° For separate ferrule
R2020NU45 1.1/4" Insert - 1.1/4" BSP female - 45° - AISI316 G 1.1/4 BSP 1.1/4 " 45 ° For separate ferrule
R2424NU45 1.1/2" Insert - 1.1/2" BSP female - 45° - AISI316 G 1.1/2 BSP 1.1/2 " 45 ° For separate ferrule
R3232NU45 2" Insert - 2" BSP female - 45° - AISI316 G 2 BSP 2 " 45 ° For separate ferrule
Angle
45
Brand Name
Hydraspecma
Hose coupling type
For separate ferrule
Material
Stainless steel
Material quality
1.4571 / AISI316Ti
