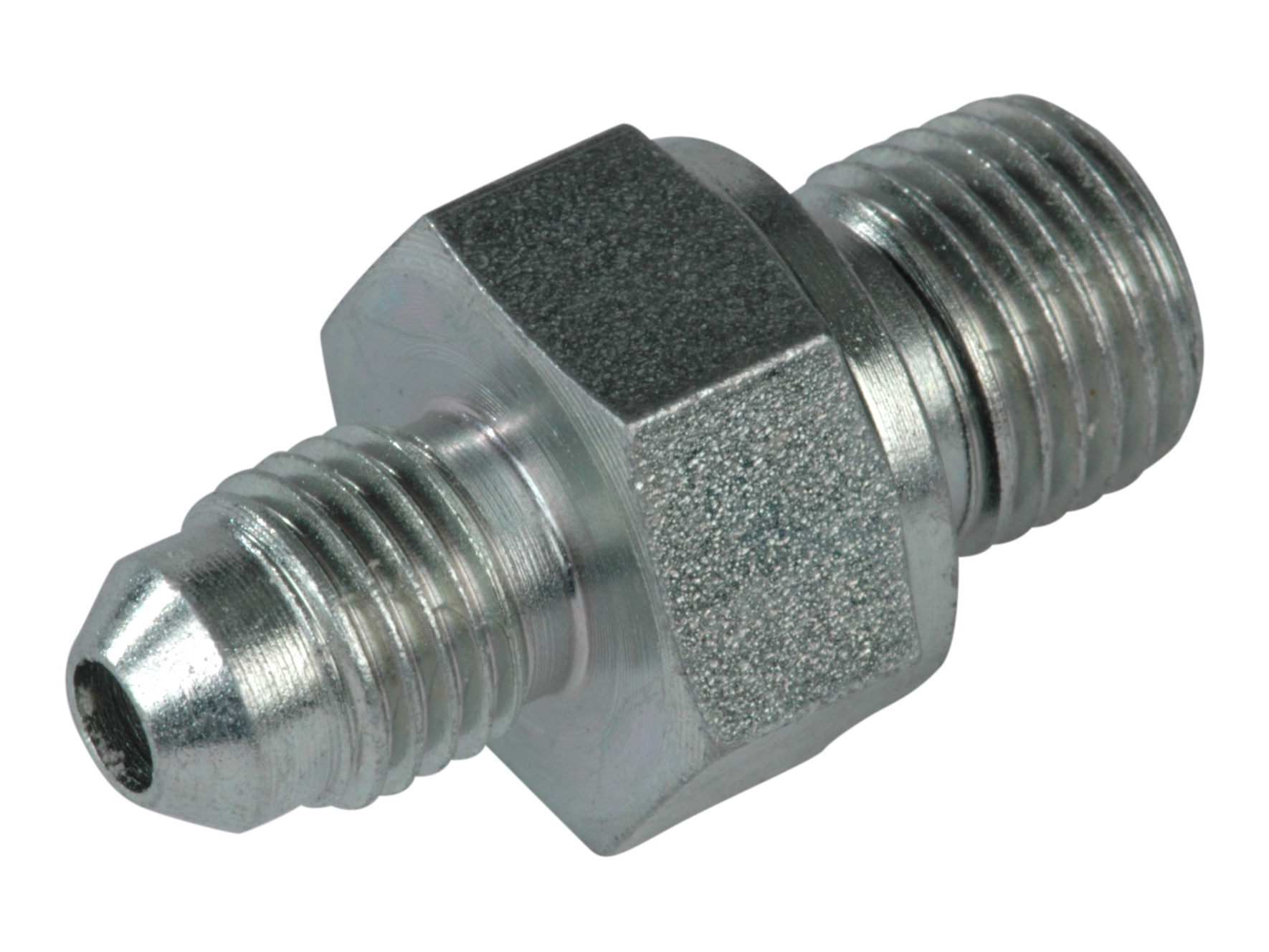

M-06-1/4WD
|
S230-06-13G adaptor BSP |
6 mm |
G 1/4 BSP |
7/16-20 JIC |
350 bar |
|
M-08-1/4WD
|
Adapter Rak, Utv-JIC, Utv-G-ED |
8 mm |
|
1/2-20 JIC |
350 bar |
|
M-10-1/2WD
|
S230-10-21G adaptor BSP |
10 mm |
G 1/2 BSP |
9/16-18 JIC |
350 bar |
|
|
M-10-1/4WD
|
S230-10-13G adaptor BSP |
10 mm |
G 1/4 BSP |
9/16-18 JIC |
350 bar |
|
|
M-10-3/8WD
|
S230-10-17G adaptor BSP |
10 mm |
G 3/8 BSP |
9/16-18 JIC |
350 bar |
|
M-12-1/2WD
|
S230-12-21G adaptor BSP |
12 mm |
G 1/2 BSP |
3/4-16 JIC |
350 bar |
|
|
M-12-3/4WD
|
S230-12-26G adaptor BSP |
12 mm |
G 3/4 BSP |
3/4-16 JIC |
280 bar |
|
M-12-3/8WD
|
Adaptor 3/4-16 JIC male x 3/8 BSP male with WD seal |
12 mm |
G 3/8 BSP |
3/4-16 JIC |
350 bar |
|
M-16-1/2WD
|
S230-16-21G adaptor BSP |
14-15-16 mm |
G 1/2 BSP |
7/8-14 JIC |
350 bar |
|
M-16-3/8WD
|
Adapter 7/8-14 JIC male x 3/8 BSP female with WD seal |
14-15-16 mm |
G 3/8 BSP |
7/8-14 JIC |
350 bar |
|
M-20-1/2WD
|
1.1/16-12 JIC male x 1/2 BSP male with WD pakning |
20 mm |
G 1/2 BSP |
1.1/16-12 JIC |
300 bar |
|
M-20-3/4WD
|
S230-20-26G adaptor BSP |
20 mm |
G 3/4 BSP |
1.1/16-12 JIC |
280 bar |
|
M-25-1.1/4WD
|
Adaptor BSP With WD seal |
25 mm |
G 1.1/4 BSP |
1.5/16-12 JIC |
290 bar |
|
M-25-1WD
|
S230-25-33G adaptor BSP |
25 mm |
G 1 BSP |
1.5/16-12 JIC |
290 bar |
|
M-25-3/4WD
|
S230-25-26G adaptor BSP |
25 mm |
G 3/4 BSP |
1.5/16-12 JIC |
290 bar |
|
M-32-1.1/2WD
|
S230-30-48G adaptor BSP |
32 mm |
G 1.1/2 BSP |
1.5/8-12 JIC |
240 bar |
|
M-32-1.1/4WD
|
S230-30-42G adaptor BSP |
32 mm |
G 1.1/4 BSP |
1.5/8-12 JIC |
240 bar |
|
M-32-1WD
|
S230-30-33G adaptor BSP |
32 mm |
G 1 BSP |
1.5/8-12 JIC |
240 bar |
|
M-38-1.1/2WD
|
S230-38-48G adaptor BSP |
38 mm |
G 1.1/2 BSP |
1.7/8-12 JIC |
250 bar |
