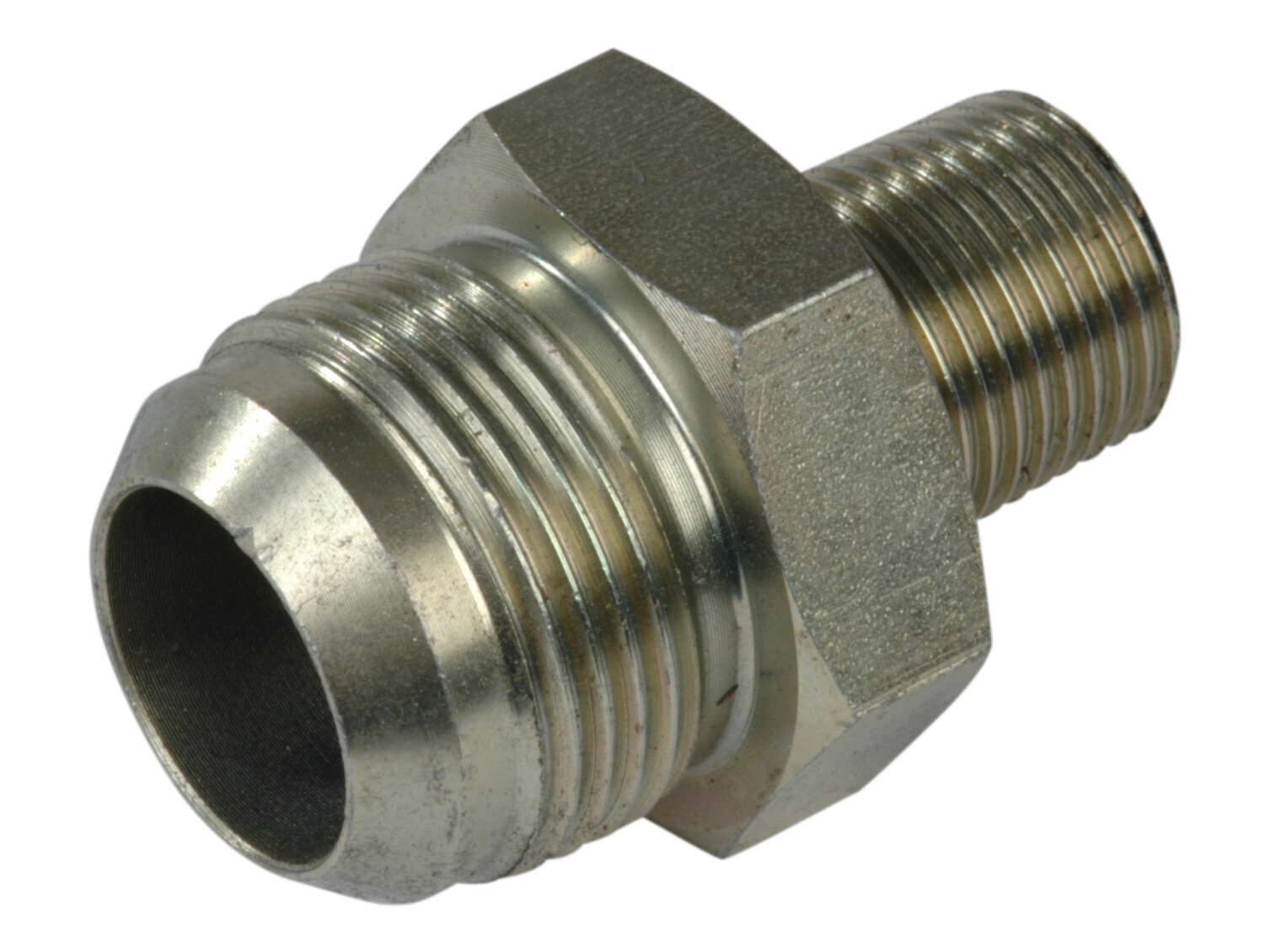

Adapter JIC male x BSPT male - M3

Adapter JIC male x BSPT male - M3

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Diameter pipe Thread outer Thread outer Pressure max.
M3-12-3/4 Stud fitting 3/4" JIC x 3/4" BSPT 12 mm 3/4-16 JIC R 3/4 BSPT 350 bar
M3-20-3/4 Stud fitting 1.1/16" JIC x 3/4" BSPT 20 mm 1.1/16-12 JIC R 3/4 BSPT 300 bar
M3-25-1/2 Stud fitting 1.5/16" JIC x 1/2" BSPT 25 mm 1.5/16-12 JIC R 1/2 BSPT 290 bar
Angle
0
Material
Steel
Surface treatment
Electro-galvanized / White chromatized
