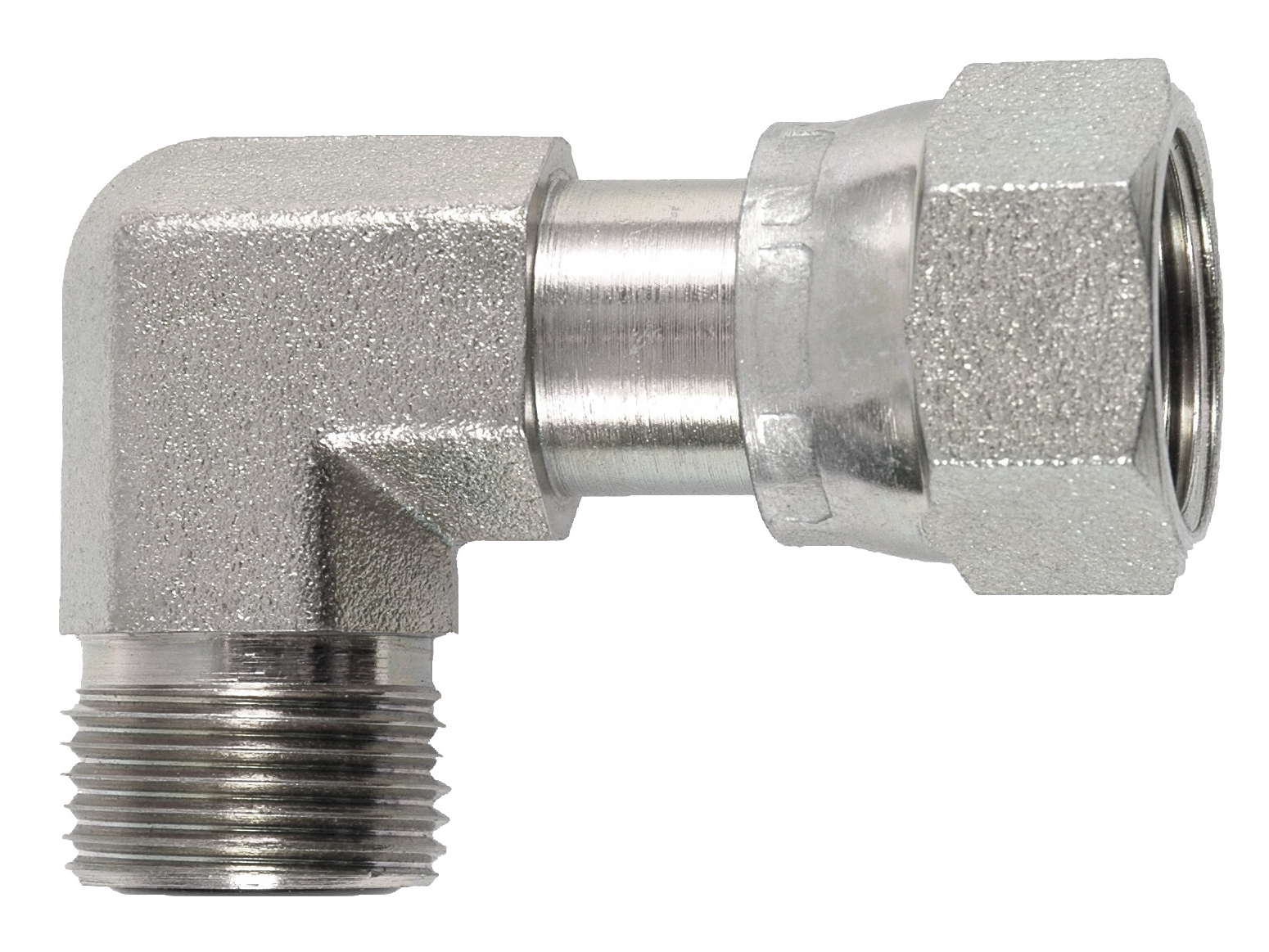

Elbow adapter 90° ORFS male x ORFS union nut - 116FS / OFEVW

Elbow adapter 90° ORFS male x ORFS union nut - 116FS / OFEVW

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Thread outer Pressure max. Thread inner Brand Name
116FS04 Elbow 9/16 ORFS nut 9/16-18 ORFS 630 bar 9/16-18 ORFS FOR
116FS06 Elbow 11/16 ORFS nut 11/16-16 ORFS 630 bar 11/16-16 ORFS FOR
116FS08 Elbow 13/16 ORFS nut 13/16-16 ORFS 630 bar 13/16-16 ORFS FOR
116FS10 Elbow 1 ORFS nut 1-14 ORFS 420 bar 1-14 ORFS FOR
116FS12 Elbow 1.3/16 ORFS nut 1.3/16-12 ORFS 420 bar 1.3/16-12 ORFS FOR
116FS16 Elbow 1.7/16 ORFS nut 1.7/16-12 ORFS 350 bar 1.7/16-12 ORFS FOR
116FS20 Elbow 1.11/16 ORFS nut 1.11/16-12 ORFS 350 bar 1.11/16-12 ORFS FOR
116FS24 Elbow 2 ORFS nut 2-12 ORFS 350 bar 2-12 ORFS FOR
Angle
90
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Material
Steel
Sealing material
NBR
Surface treatment
Electro-galvanized / White chromatized
Temperature max.
+100
Temperature min.
-35
