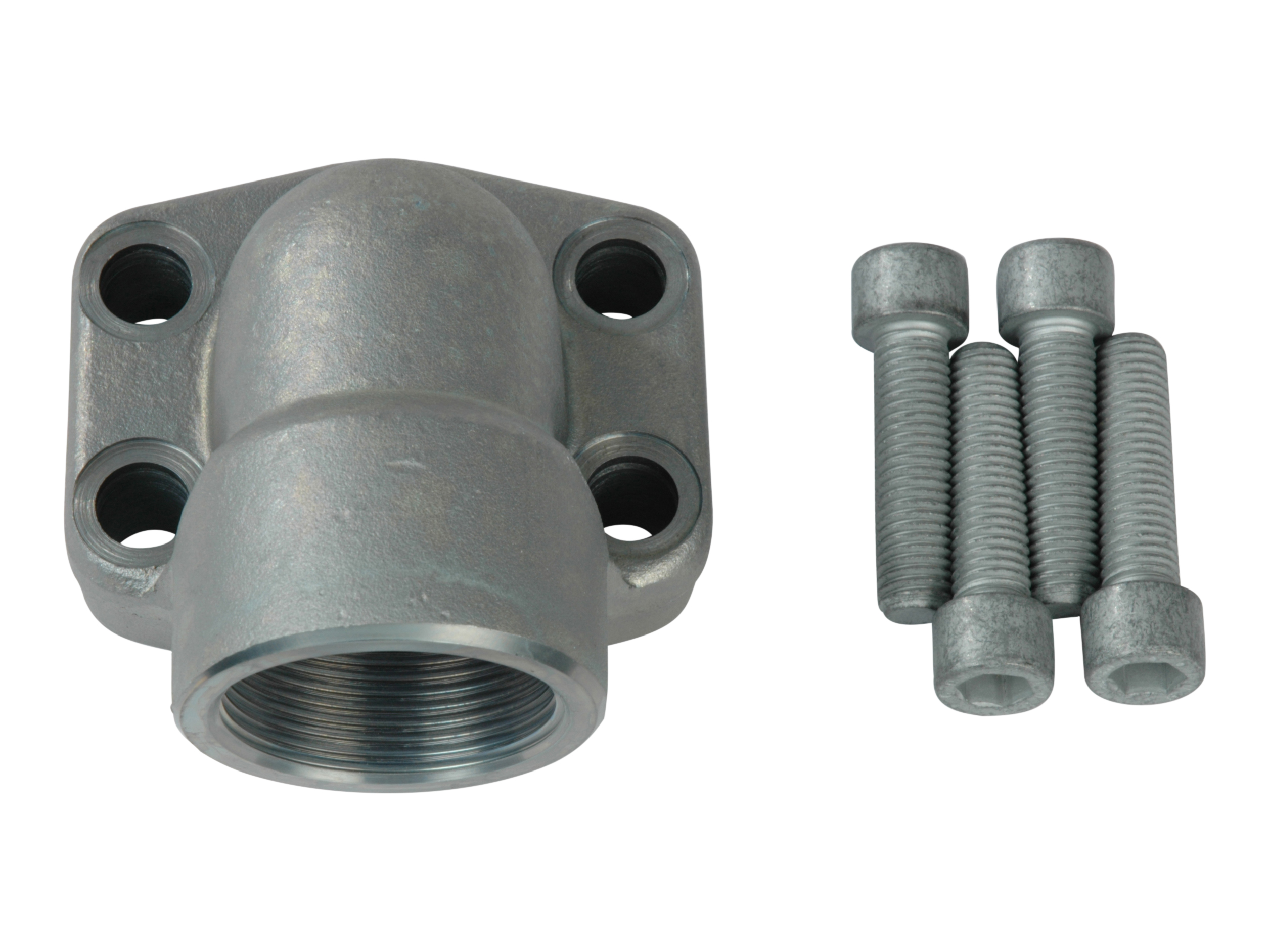

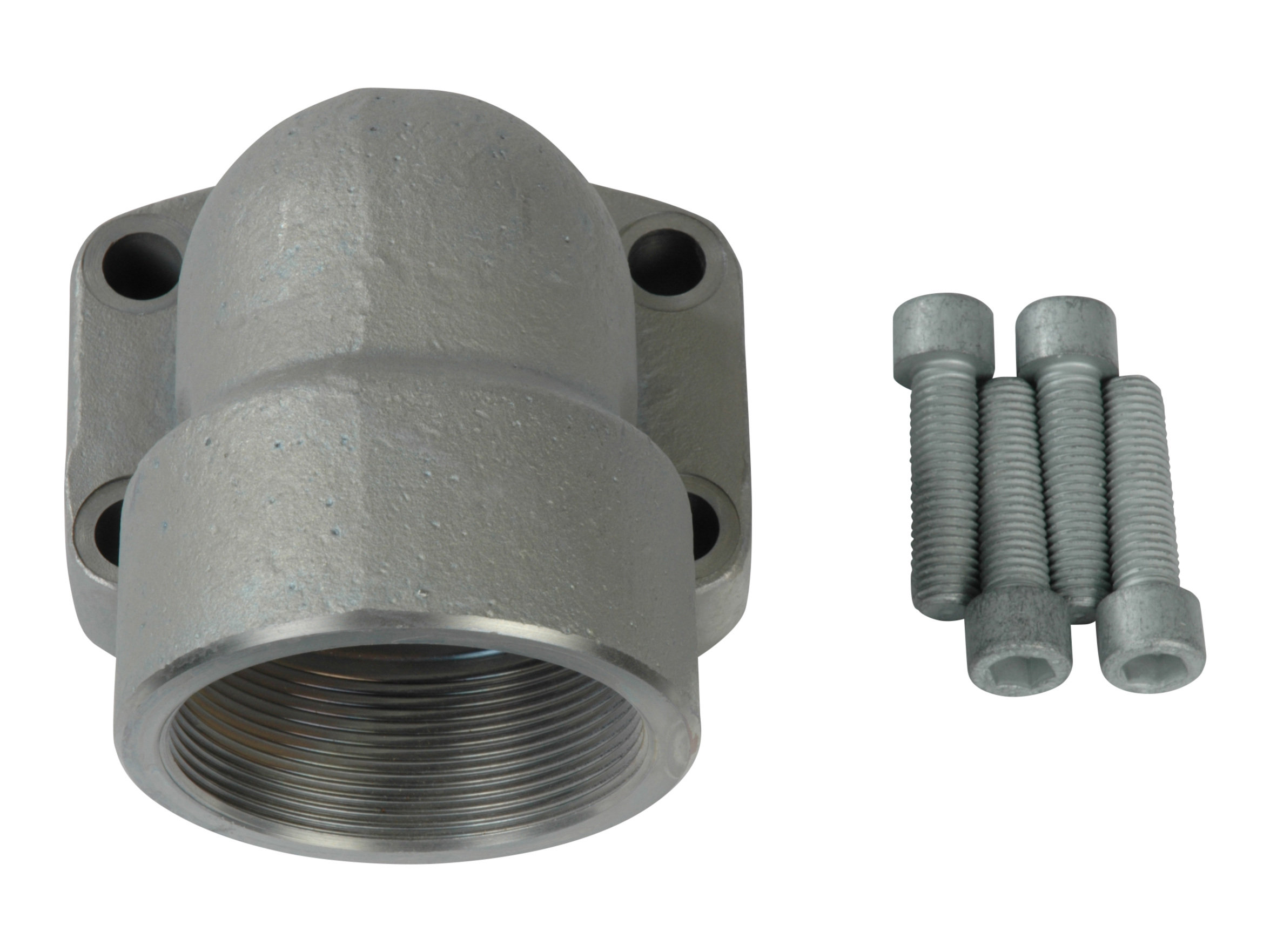

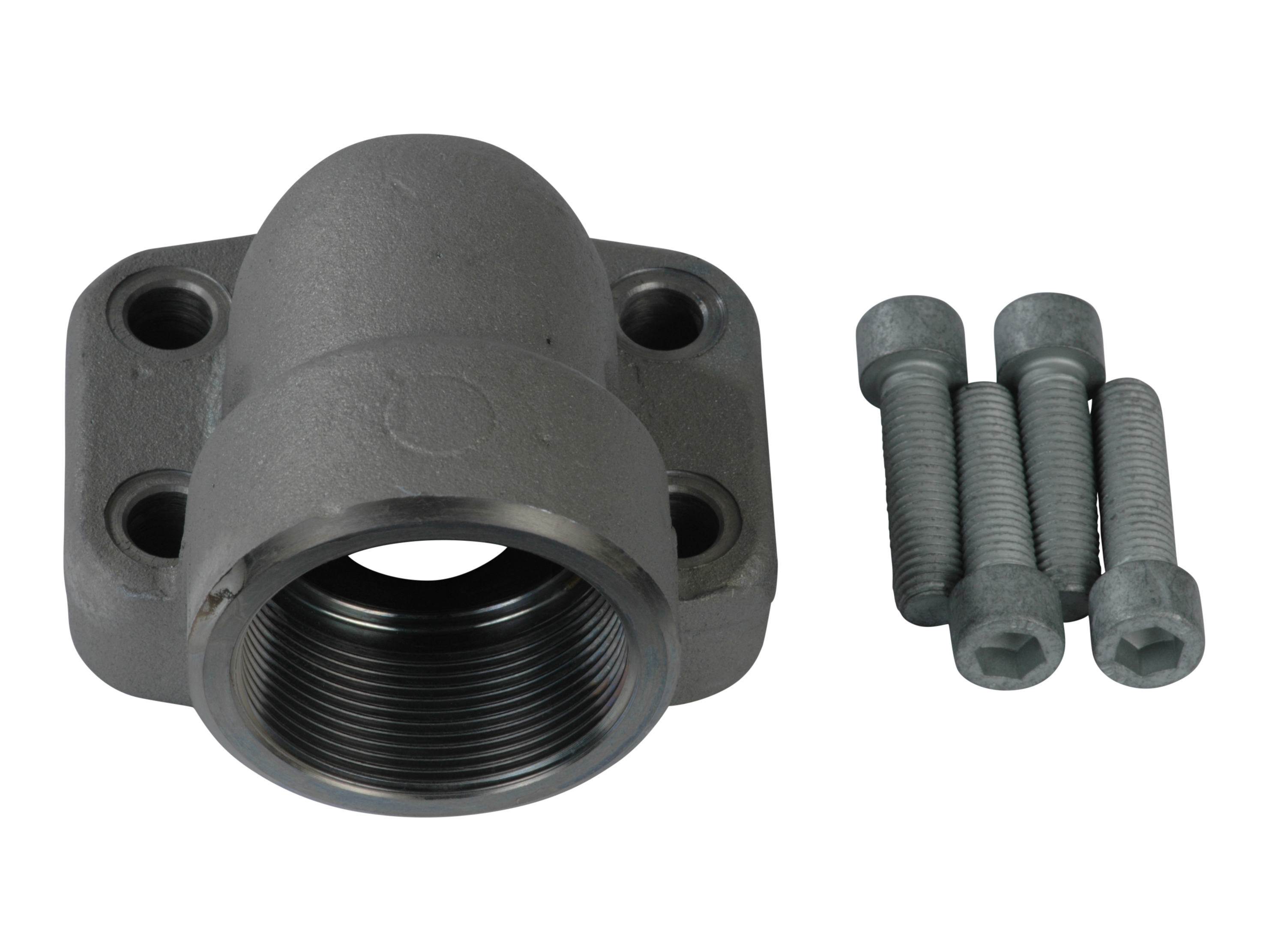

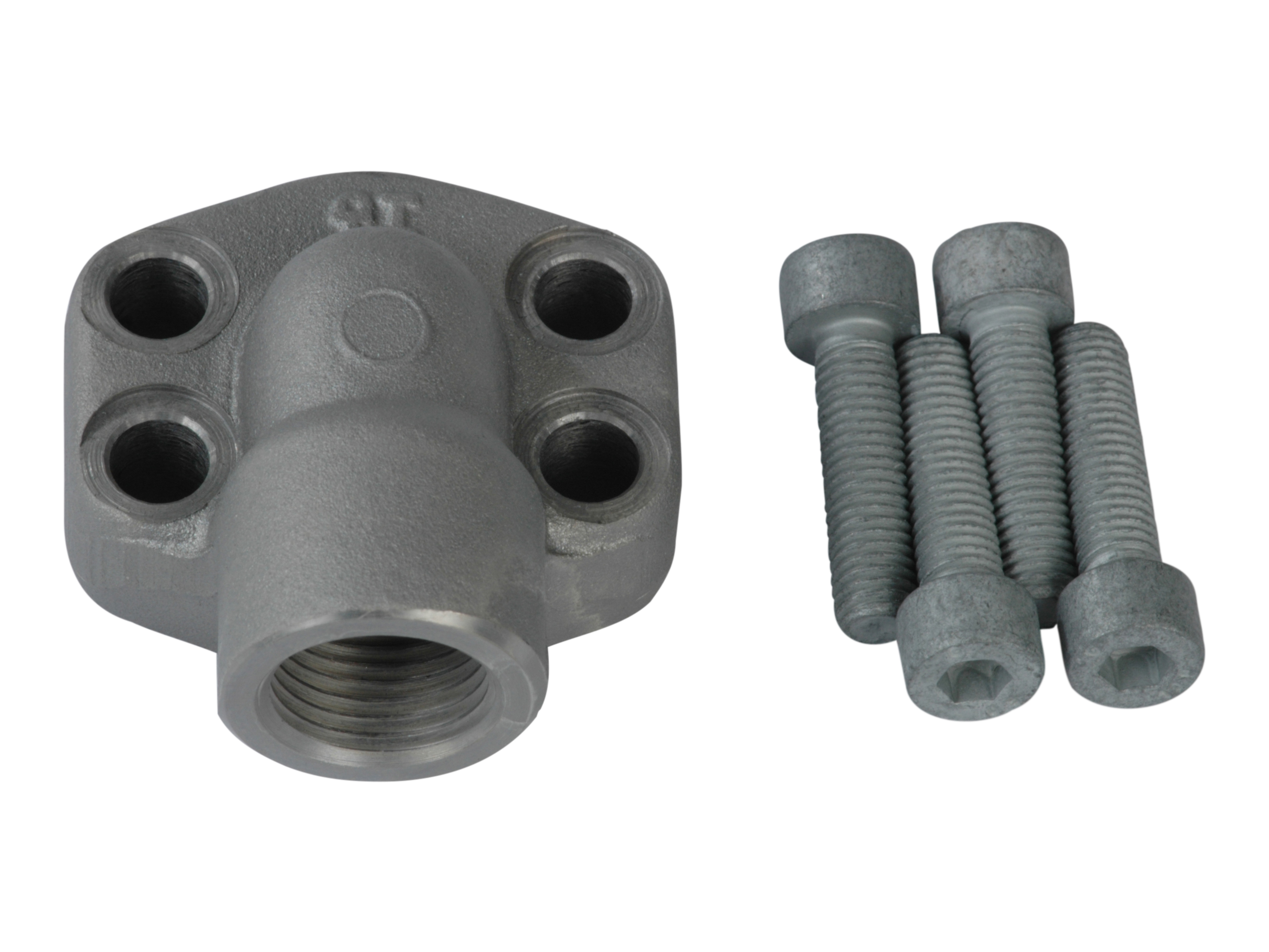

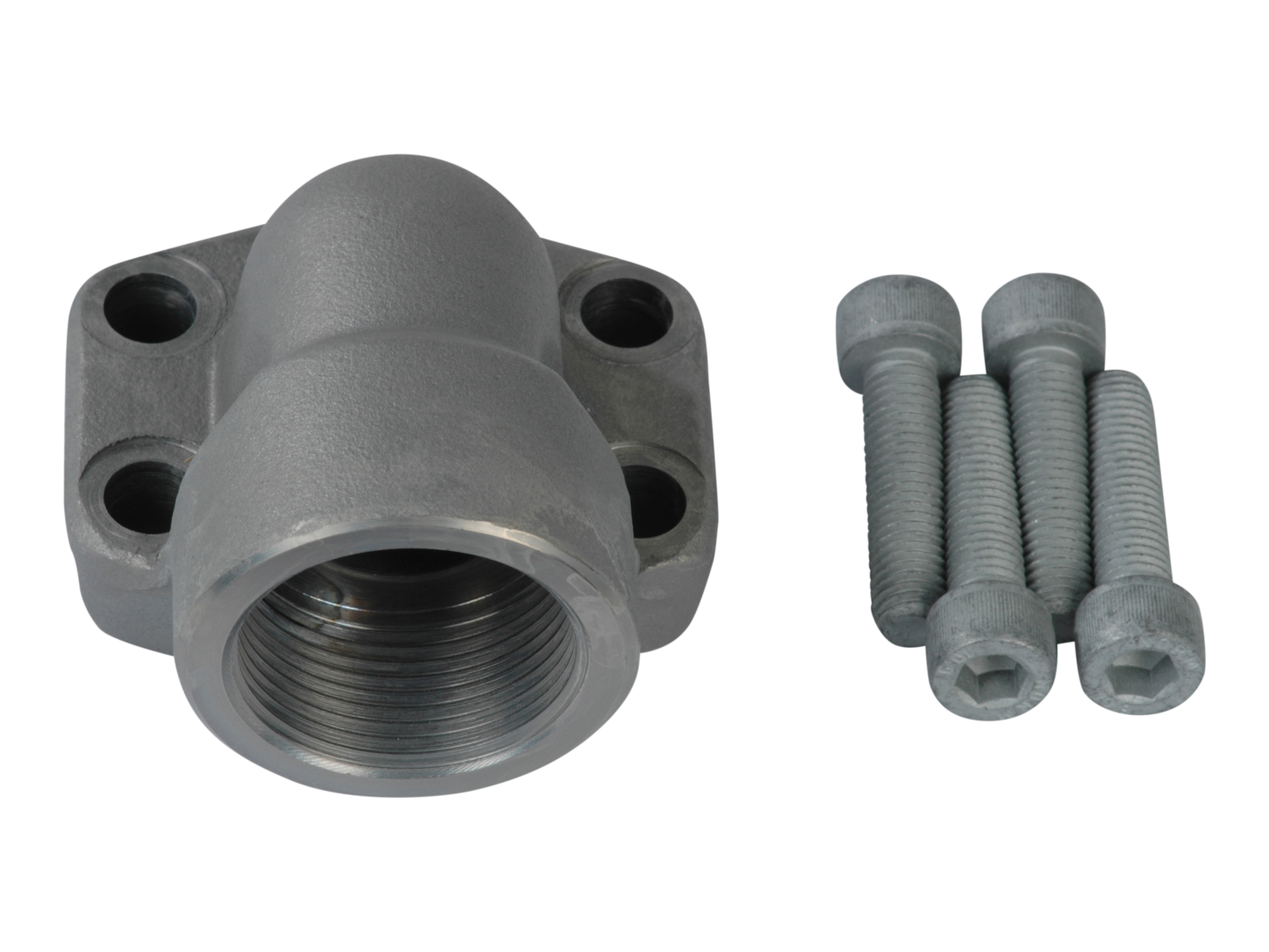

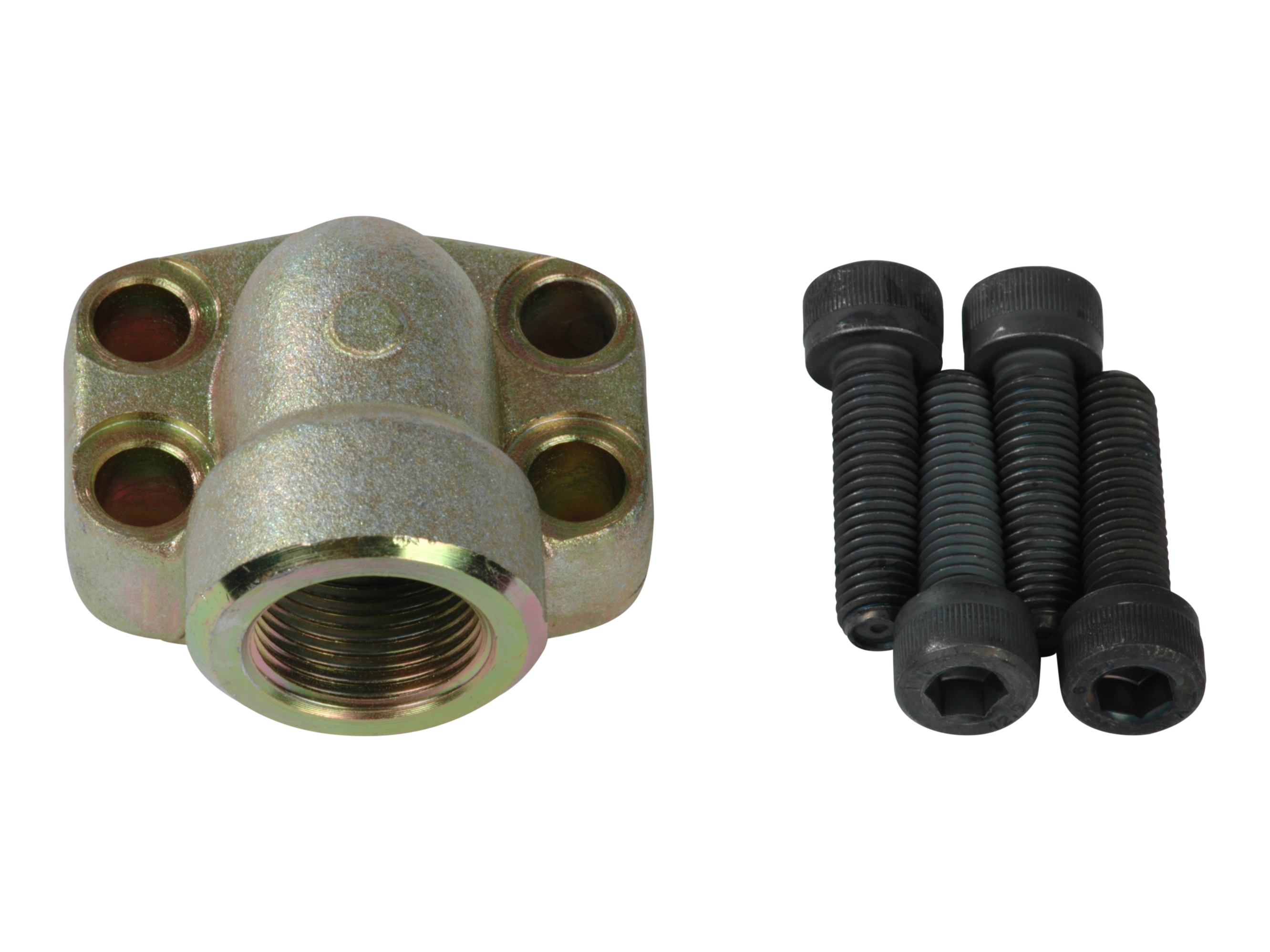

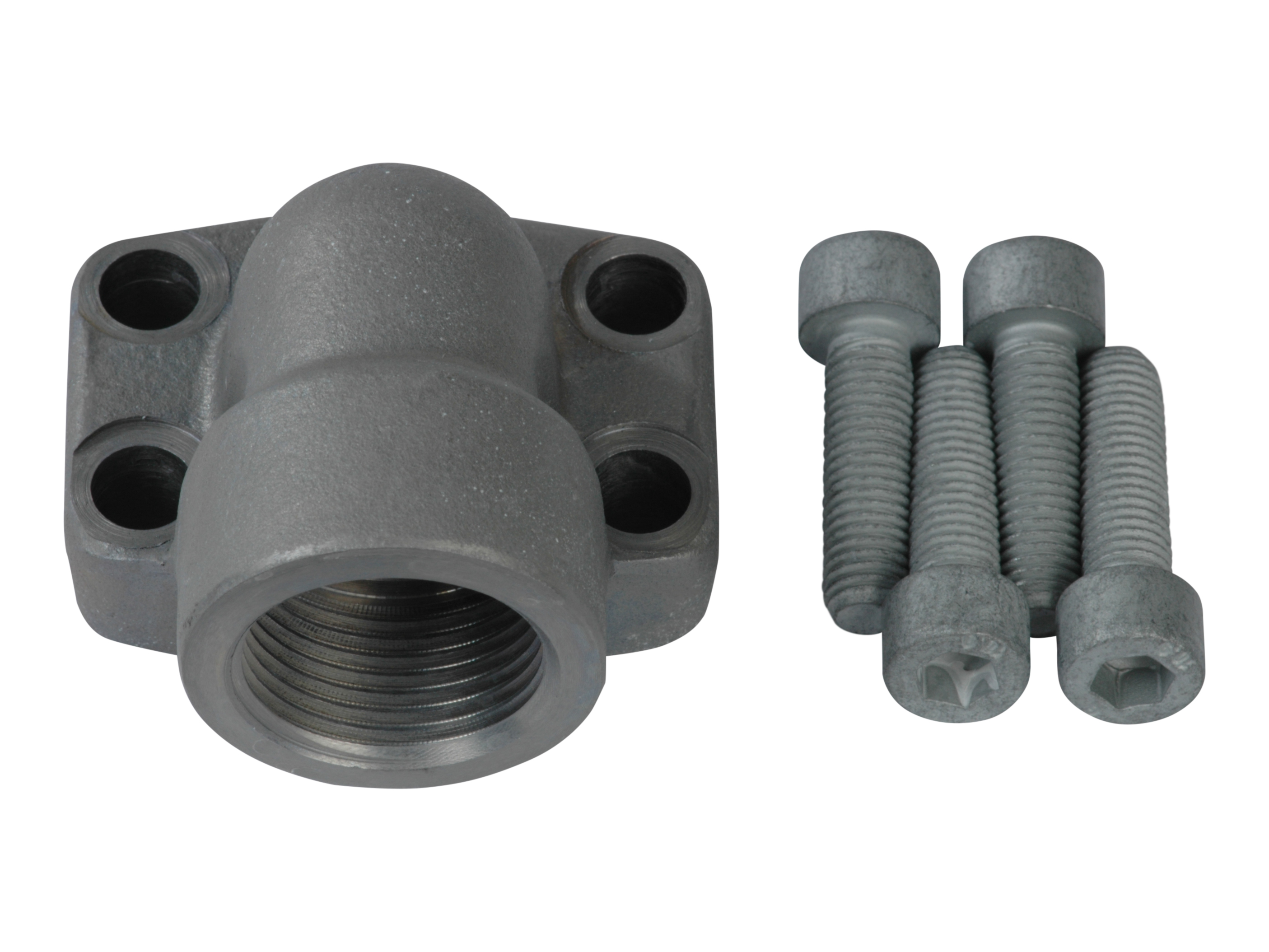

Threaded flange 90° SAE 3000 PSI x BSP female with O-ring and MM bolts - AFS-/90GM

Threaded flange 90° SAE 3000 PSI x BSP female with O-ring and MM bolts - AFS-/90GM

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Thread inner Flange Bolt dimension Diameter flange
AFS080/90GM Flange 90° 1/2" SAE3000 x 1/2" BSP - complete G 1/2 BSP 1/2 " M8x30 mm 30.2 mm
AFS08090G06M Flange 90° 1/2" SAE3000 x 3/8" BSP - complete G 3/8 BSP 1/2 " M8x30 mm 30.2 mm
AFS100/90GM Flange 90° 3/4" SAE3000 x 3/4" BSP - complete G 3/4 BSP 3/4 " M10x35 mm 38.1 mm
AFS102/90GM Flange 90° 1" SAE3000 x 1" BSP - complete G 1 BSP 1 " M10x35 mm 44.5 mm
AFS104/90GM Flange 90° 1.1/4" SAE3000 x 1.1/4" BSP - complete G 1.1/4 BSP 1.1/4 " M10x40 mm 50.8 mm
AFS106/90GM Flange 90° 1.1/2" SAE3000 x 1.1/2" BSP - complete G 1.1/2 BSP 1.1/2 " M12x45 mm 60.3 mm
AFS108/90GM Flange 90° 2" SAE3000 x 2" BSP - complete G 2 BSP 2 " M12x45 mm 71.4 mm
AFS110/90GM Flange 90° 2.1/2" SAE3000 x 2.1/2" BSP - complete G 2.1/2 BSP 2.1/2 " M12x45 mm 84.1 mm
Angle
90
Brand Name
Havit
Corrosion resistance
480 hours salt spray DIN EN 9227
Flange SAE/DIN
3000 PSI
Material
Steel
Number of bolts
4
Sealing material
NBR
Shore
90
Standard ISO
ISO 6162-1
Standard SAE
SAE J518 Code 61
Surface treatment
Zinc-Nickel plated
Temperature max.
+90
Temperature min.
-40
