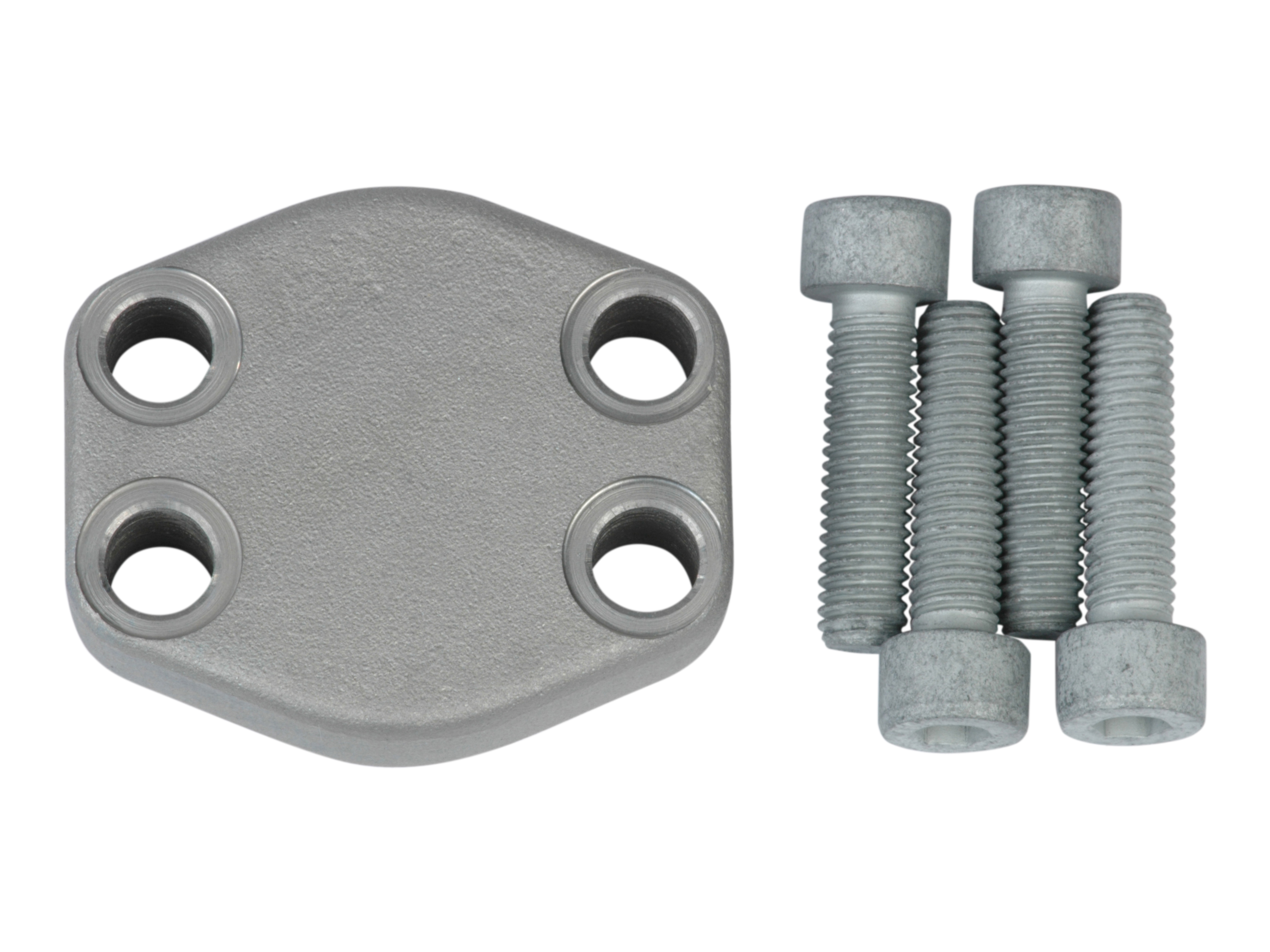

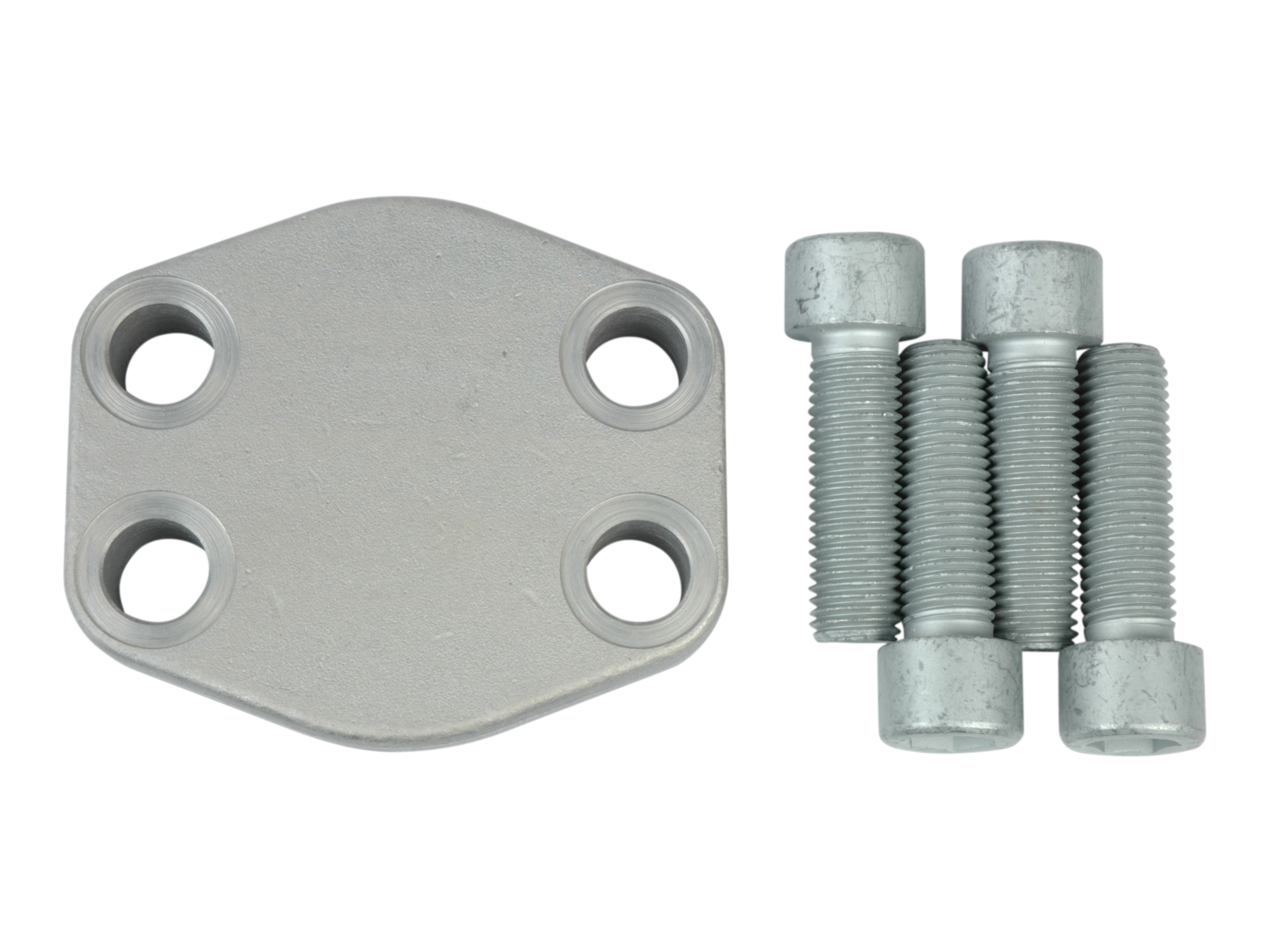

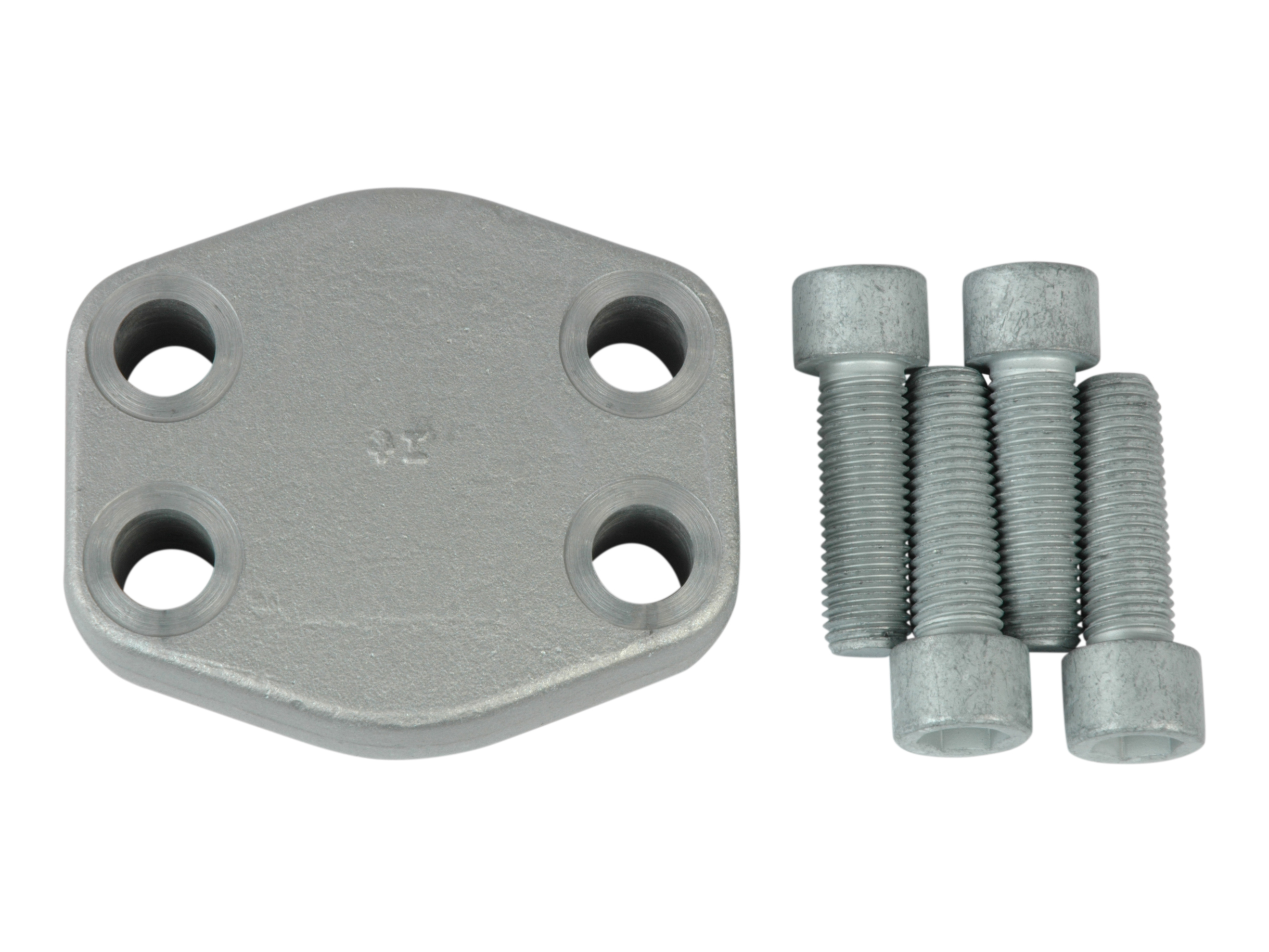

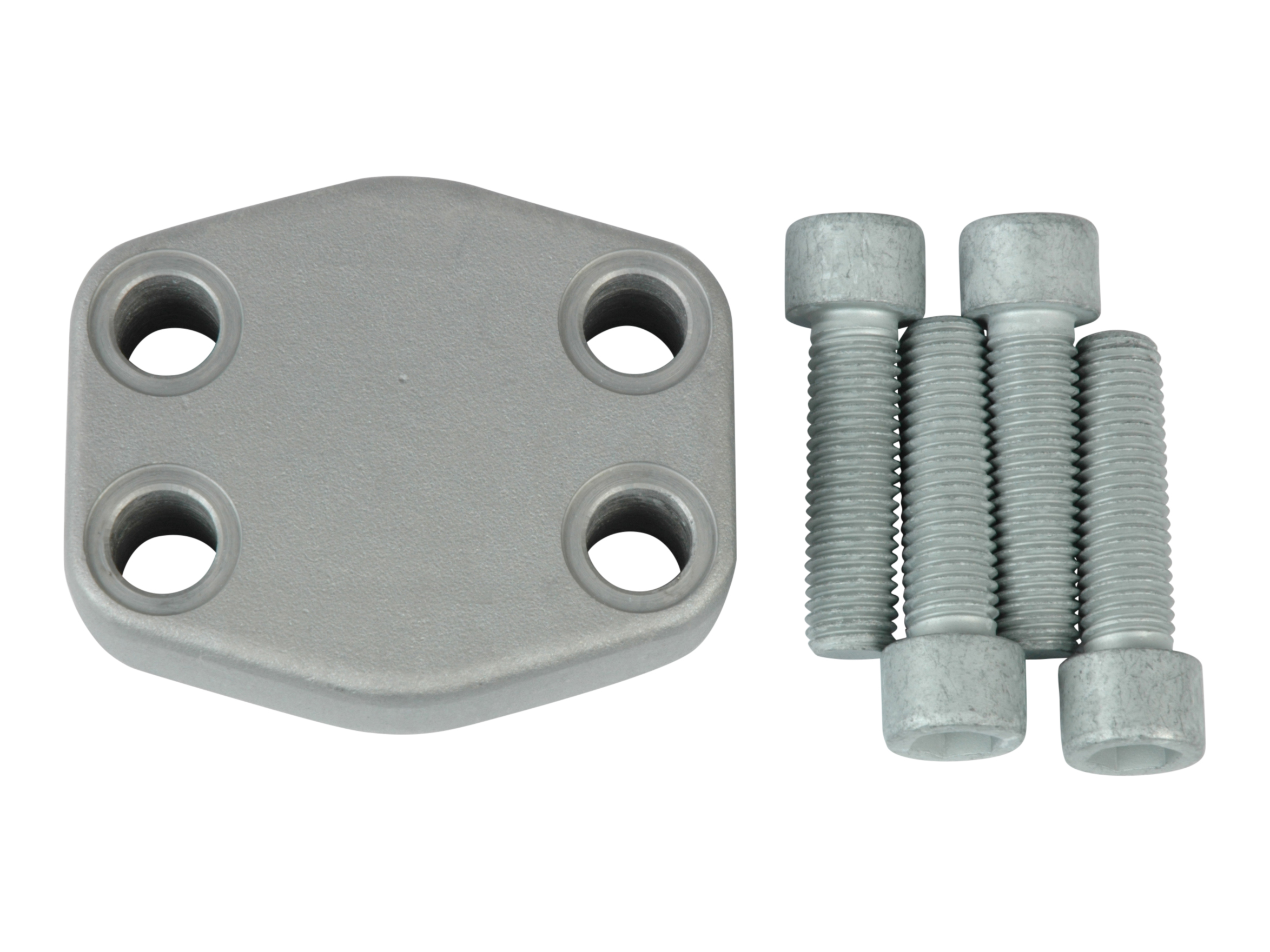

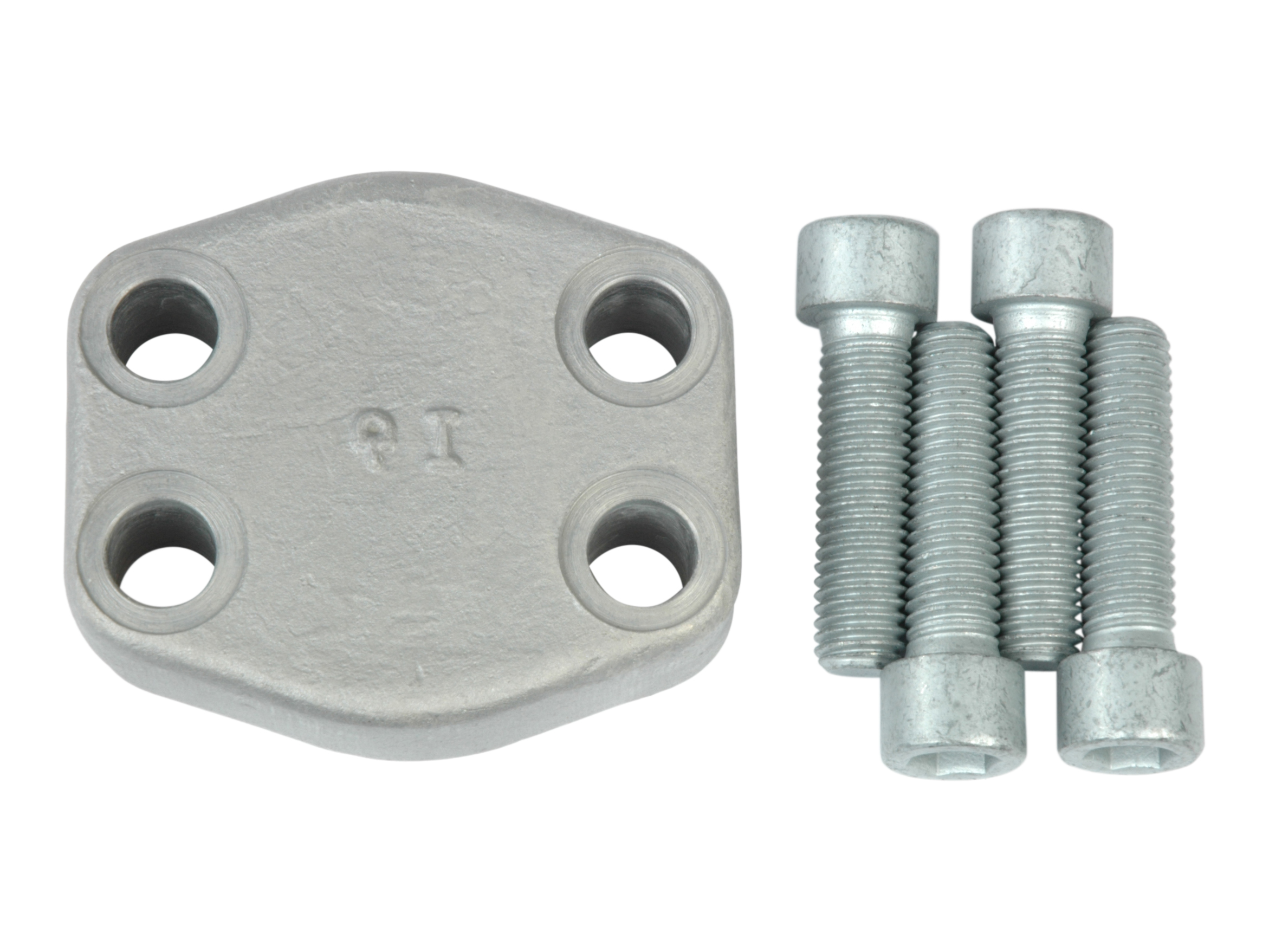

Blind flanges with bolts and O-ring - SAE 6000 PSI - AFC4-M

Blind flanges with bolts and O-ring - SAE 6000 PSI - AFC4-M

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Flange O-ring Bolt dimension Pressure max.
AFC401M Closed flange 1/2" SAE6000 - complete 1/2 " 18.64X3.53 mm M8x30 mm 420 bar
AFC402M Closed flange 3/4" SAE6000 - complete 3/4 " 24.99X3.53 mm M10x35 mm 420 bar
AFC403M Closed flange 1" SAE6000 - complete 1 " 32.93X3.53 mm M12x45 mm 420 bar
AFC404M Closed flange 1.1/4" SAE6000 - complete 1.1/4 " 37.69X3.53 mm M14x50 mm 420 bar
AFC405M Closed flange 1.1/2" SAE6000 - complete 1.1/2 " 47.22X3.53 mm M16x50 mm 420 bar
AFC406M Closed flange 2" SAE6000 - complete 2 " 56.75X3.53 mm M20x65 mm 420 bar
Brand Name
Havit
Corrosion resistance
480 hours salt spray DIN EN 9227
Flange SAE/DIN
6000 PSI
Material
Steel
Number of bolts
4
Pressure max.
420
Sealing material
NBR
Shore
90
Standard ISO
ISO 6162-2
Standard SAE
SAE J518 Code 62
Surface treatment
Zinc-Nickel plated
Temperature max.
+90
Temperature min.
-40
