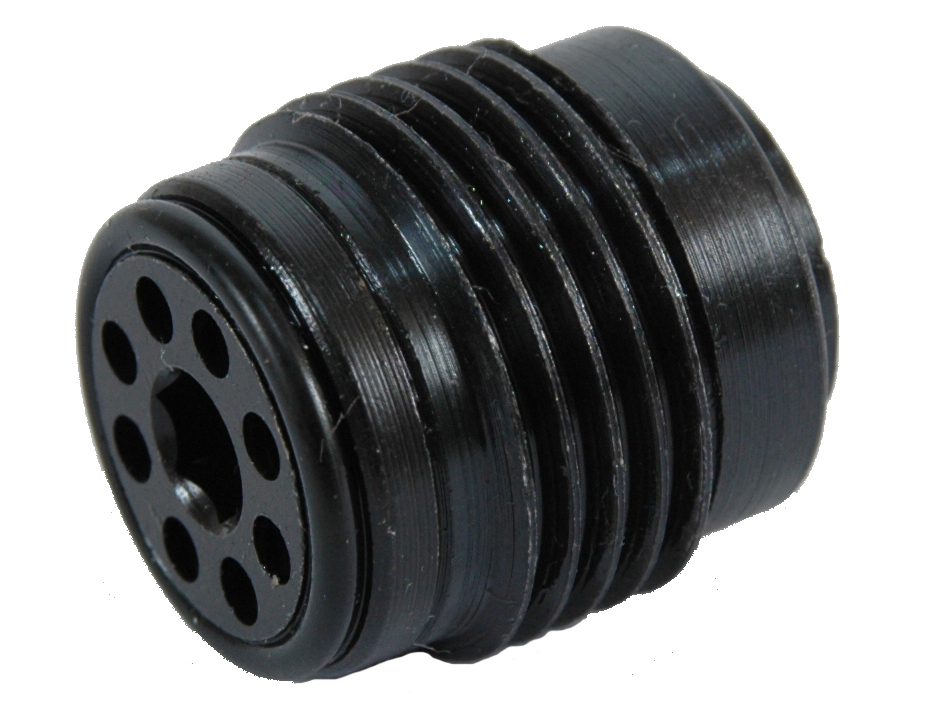

Check valve inserts - Reversible - Fimma VRC

Check valve inserts - Reversible - Fimma VRC

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Pressure max. Thread Flow rate nominal LMin
VRC3 1/4 reversible check valve O-ring : 09.00x1.00 210 bar G 1/4 BSP 15 lpm
VRC4 3/8 reversible check valve 210 bar G 3/8 BSP 25 lpm
VRC6 1/2 reversible check valve 210 bar G 1/2 BSP 50 lpm
Brand Name
Hydraspecma
Contamination level max.
19/17/14 - ISO 4406
Material
Steel
Oil viscocity recommended
5 - 800
Pressure max.
210
Sealing material
NBR
Temperature max.
+100
Temperature min.
-30
