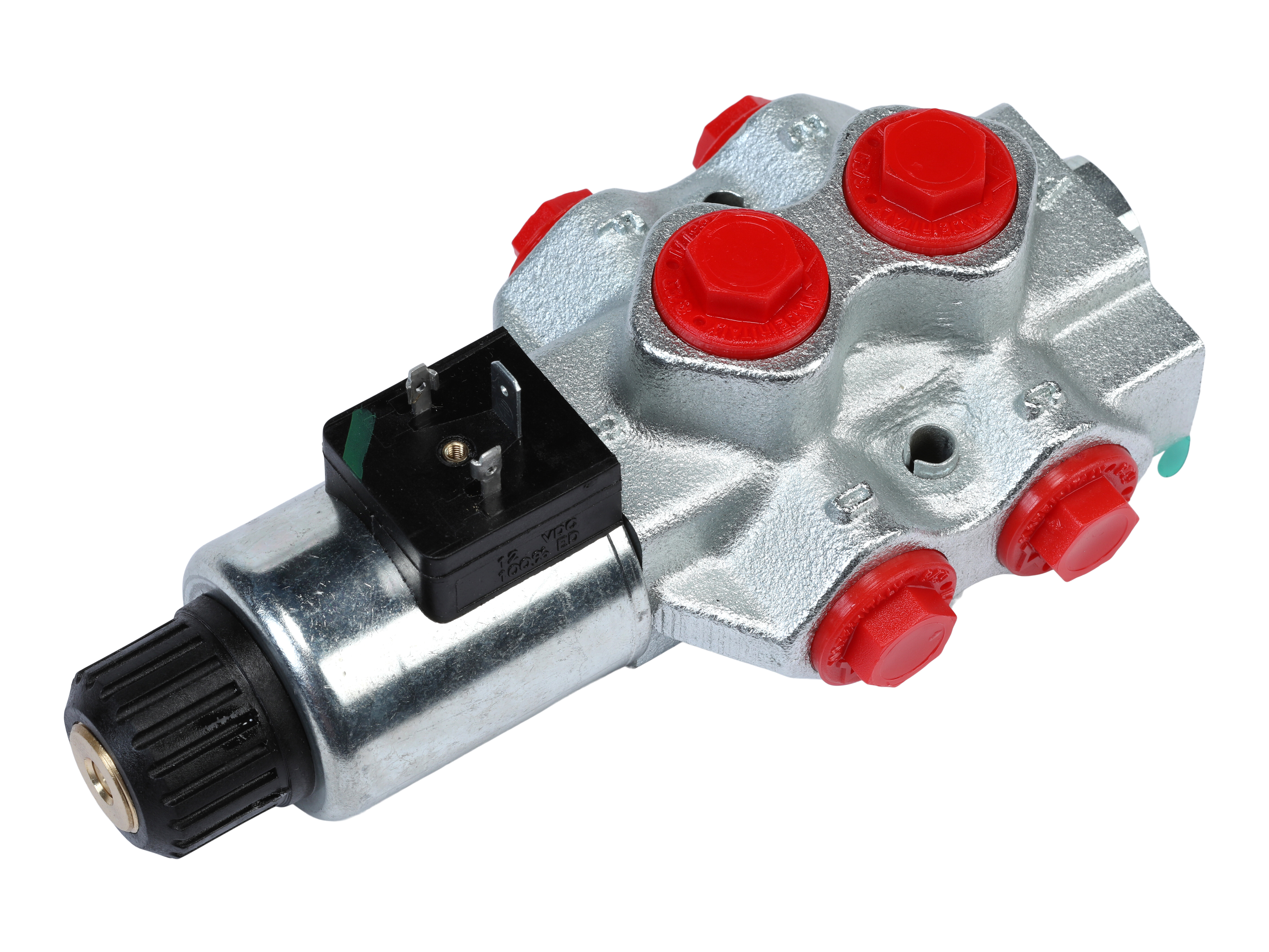

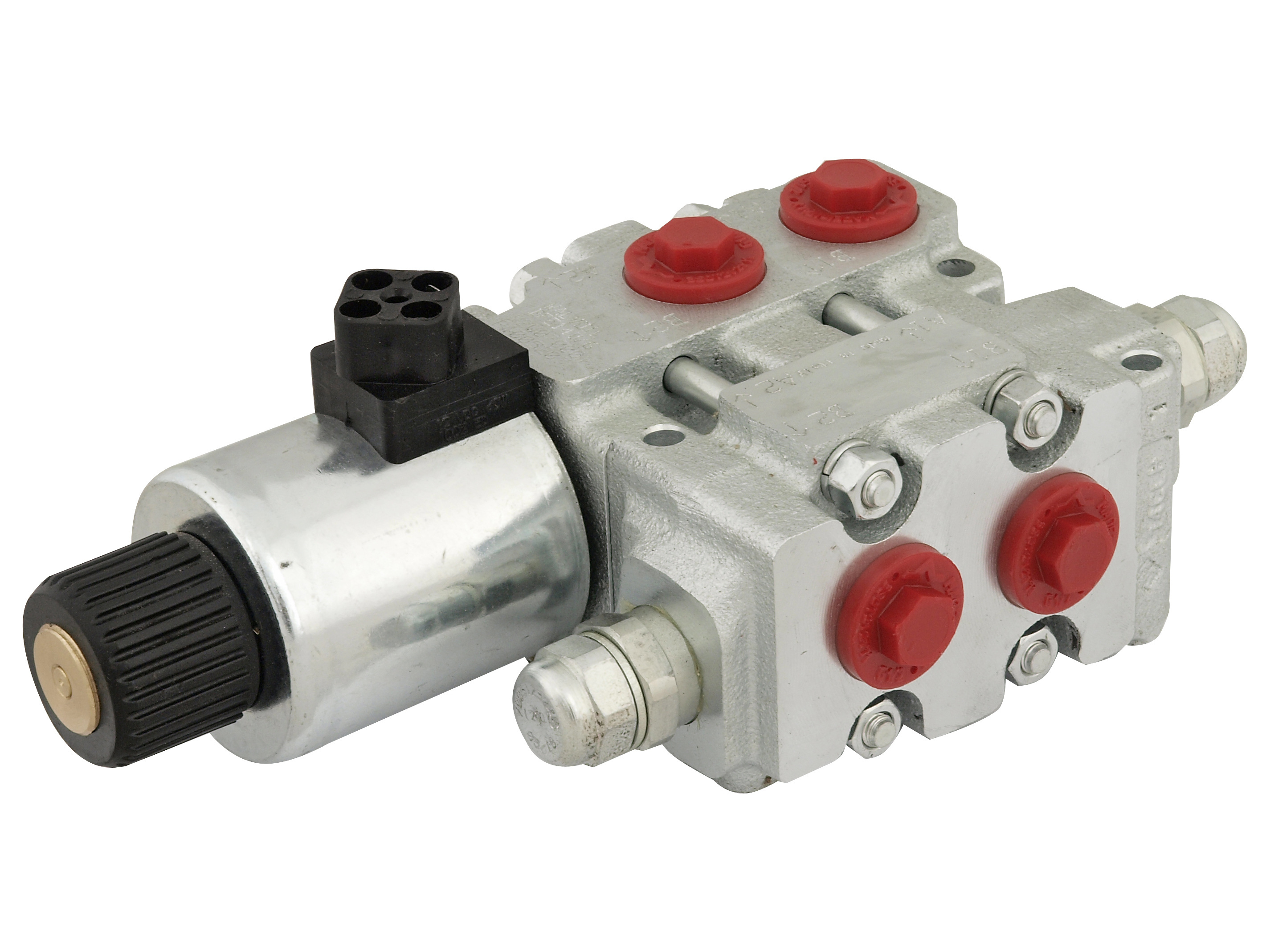

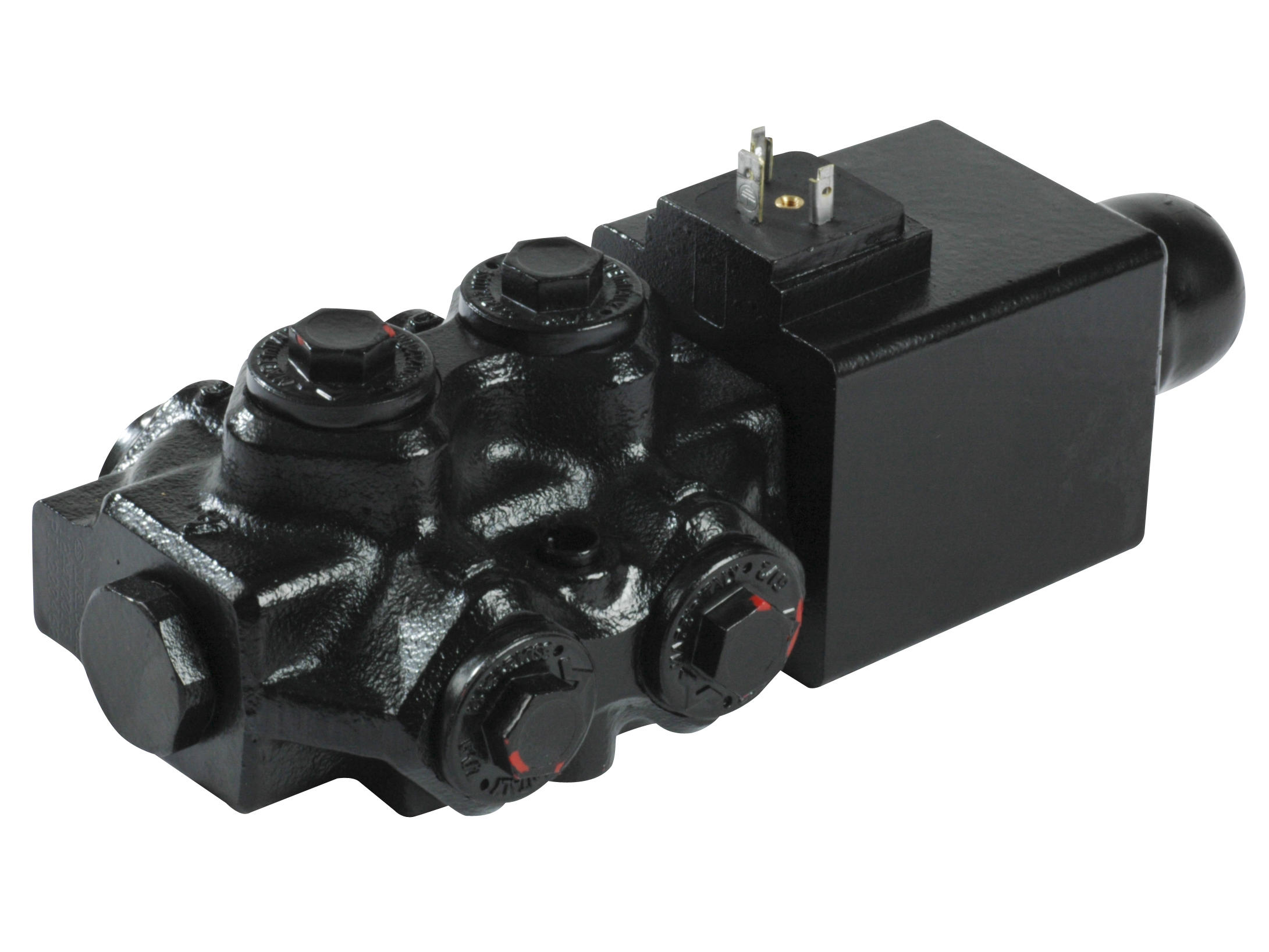

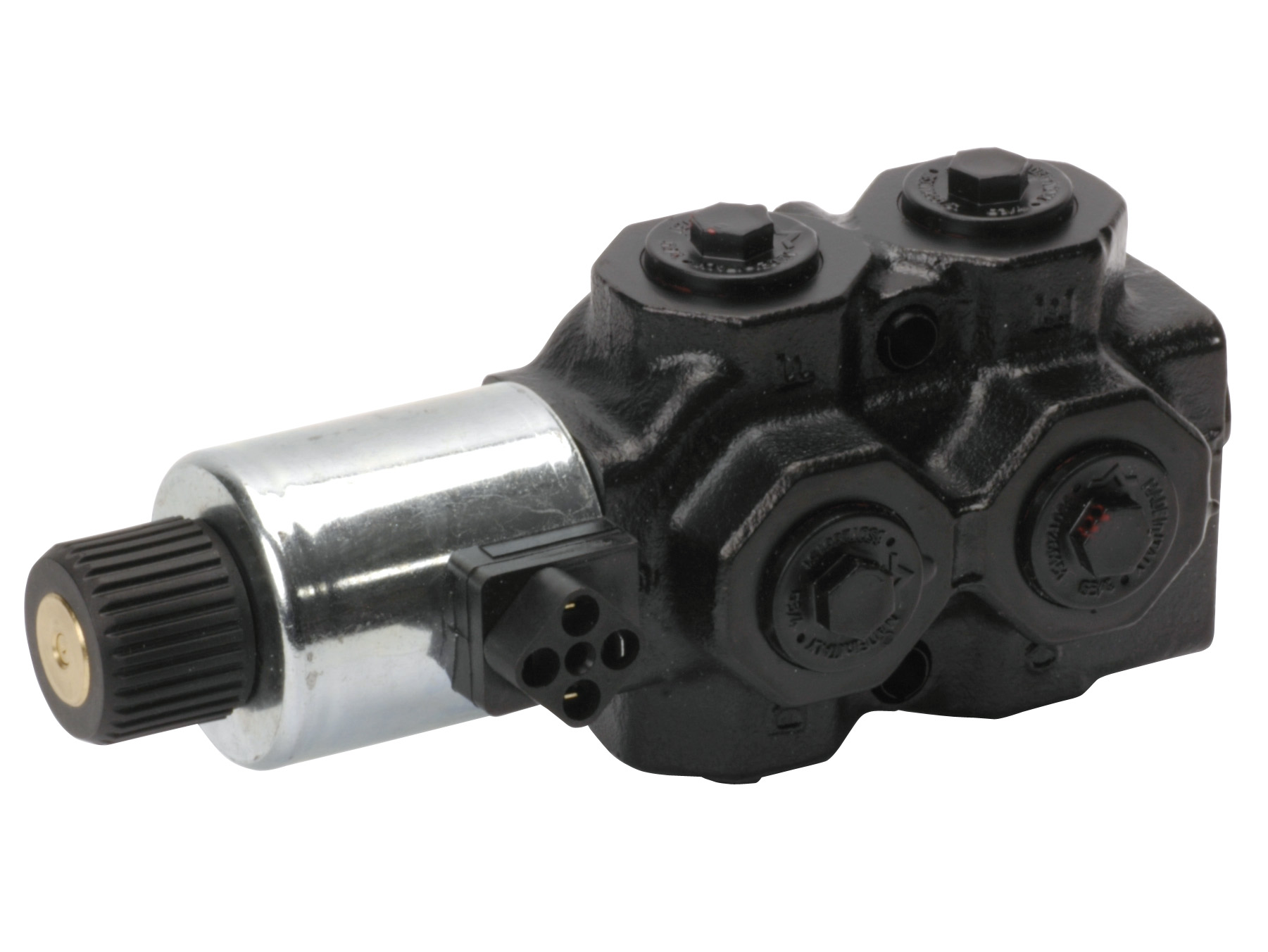

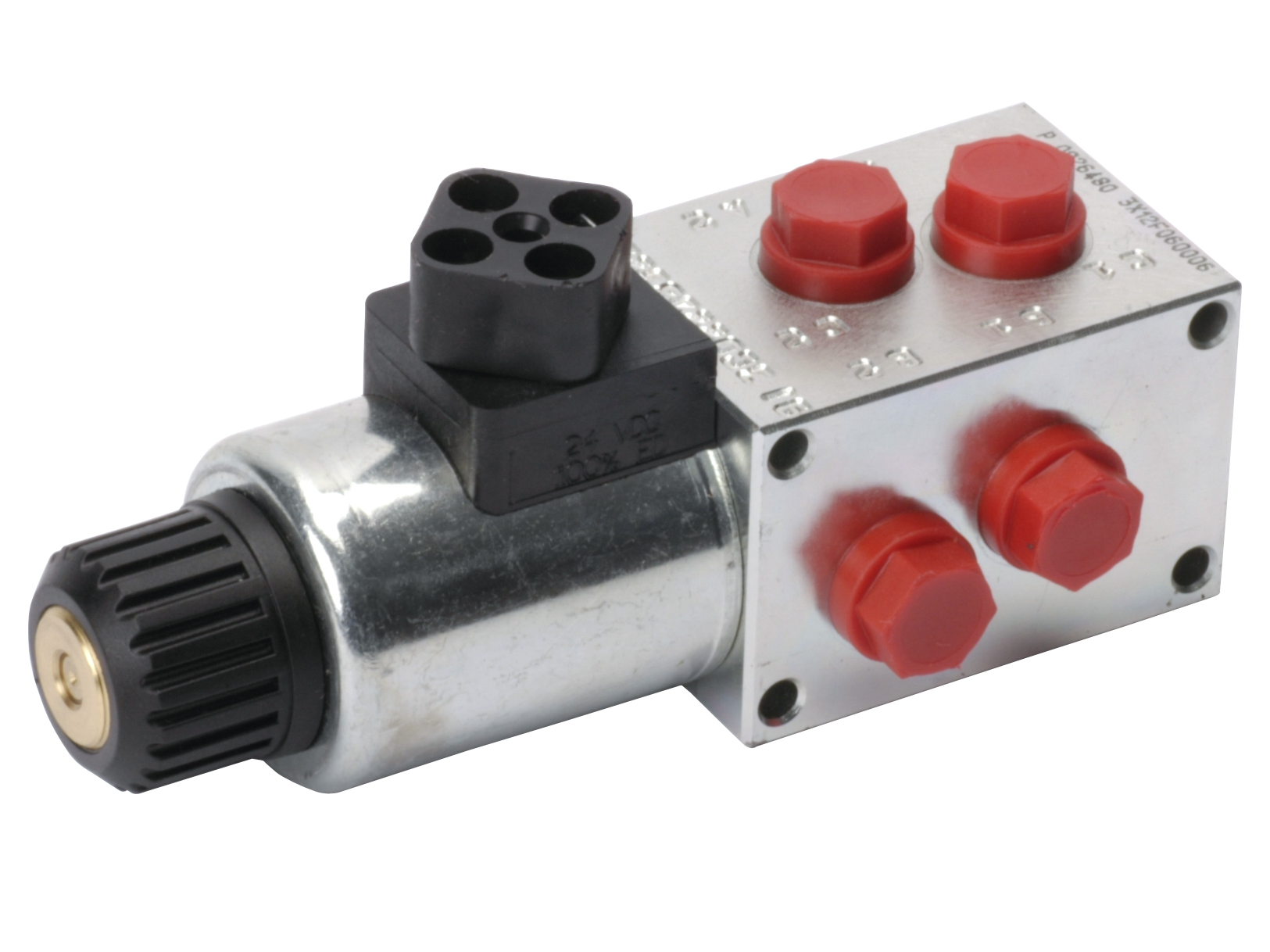

6 way diverter valves electrical DFE 6/2

6 way diverter valves electrical DFE 6/2

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Flow rate nominal LMin Voltage Pressure max.
12A670014 DFE20/6A18ESC-W201-12VDC-CRZ Walvoil 6/2 way valve 3/4 140 lpm 12 V
12A670026 DFE20/6A18ESC-W201-24VDC-CRZ Walvoil 6/2 way valve 3/4 140 lpm 24 V
12C070001 DFE140/6B18ES.P3(D4-210)-W201-12VDC-CRZ 80 lpm 12 V
12F060001 DFE080/6A18ES-W-201-12VDC Walvoil 6/2-way valve 1/4 25 lpm 12 V 200 bar
12F060006 DFE080/6A18ES-W-201-24VDC Walvoil 6/2-way valve 1/4 25 lpm 24 V
12Z270023 DFE052/6A18ESC-W-201-24Vdc <CRZ> 6/2 valve 3/8" 60 lpm 24 V
12Z270033 DFE052/6A18ES-W201-12VDC<CRZ> Walvoil 6/2 way valve 3/8 60 lpm 12 V
12Z270036 DFE052/6B18ES-Y200-24VDC<CRZ> Walvoil 6/2 way valve 3/8" 60 lpm 24 V
12Z270134 DFE052/6B18ESC-W201-12VDC <CRZ> 60 lpm 12 V
12Z470013 DFE102/6A18ES-W202-12VDC-CRZ Walvoil 6/2-way valve 1/2" open 90 lpm 12 V
12Z470025 DFE102/6A18ES-W202-24VDC-CRZ Walvoil 6/2-way valve 1/2" open 90 lpm 24 V
12Z480013 DFE102/6B18ES-W202-12VDC-CRZ Walvoil 6/2-way valve 1/2" 90 lpm 12 V
12Z480025 DFE102/6B18ES-W202-24VDC-CRZ Walvoil 6/2-way valve 1/2" 90 lpm 24 V
Brand Name
Walvoil
Current type
DC
Number of ways/positions
6/2
Temperature min.
-20
