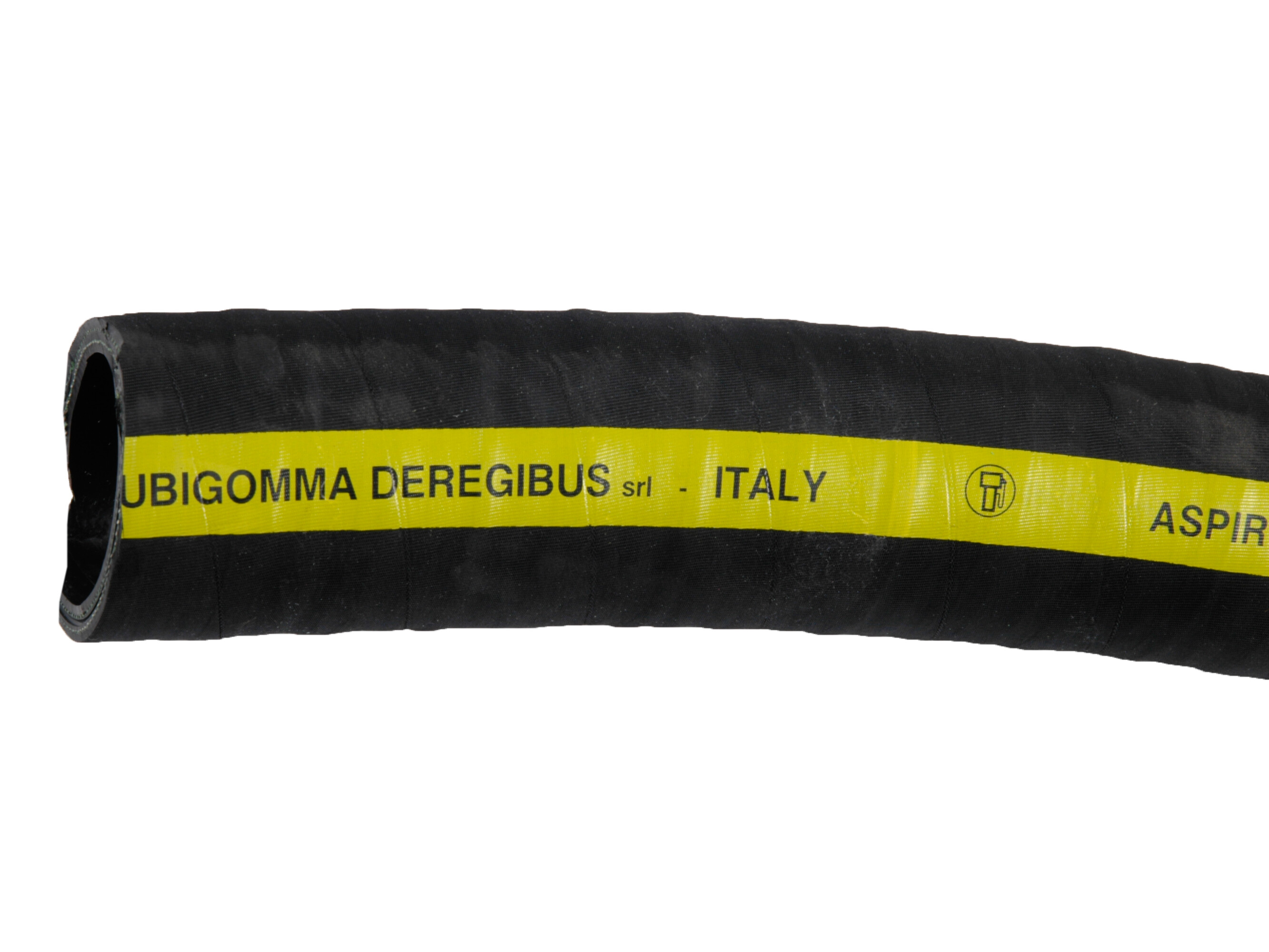

0112097 - ASPIROIL/10 oil suction- and pressure hose

0112097 - ASPIROIL/10 oil suction- and pressure hose

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Hose size Pressure max. Pressure burst min. Bend radius
0112097019 3/4" ASPIROIL suction hose - 10 bar - 19x30.5 mm 3/4 " 10 bar 30 bar 75 mm
0112097025 1" ASPIROIL suction hose - 10 bar - 25x36,5 mm 1 " 10 bar 30 bar 100 mm
0112097032 1.1/4" ASPIROIL suction hose - 10 bar - 32x43,5 mm 1.1/4 " 10 bar 30 bar 140 mm
0112097038 1.1/2" ASPIROIL suction hose - 10 bar - 38x50 mm 1.1/2 " 10 bar 30 bar 170 mm
0112097045 1.3/4" ASPIROIL suction hose - 10 bar - 45x57 mm 10 bar 30 bar 180 mm
0112097050 2" ASPIROIL suction hose - 10 bar - 51x64 mm 2 " 10 bar 30 bar 235 mm
0112097063 2.1/2" ASPIROIL suction hose - 10 bar - 63,5x77,5mm 2.1/2 " 10 bar 30 bar 300 mm
0112097075 3" ASPIROIL suction hose - 10 bar - 76x91.5 mm 3 " 10 bar 30 bar 370 mm
0112097090 3.1/2" ASPIROIL suction hose - 10 bar - 90x108 mm 3.1/2 " 10 bar 30 bar 350 mm
0112097100 4" ASPIROIL suction hose - 10 bar - 102x118 mm 4 " 10 bar 30 bar 510 mm
0112097115 4.1/2" ASPIROIL suction hose - 10 bar - 115x136 mm 4.1/2 " 10 bar 30 bar 640 mm
0112097125 5" ASPIROIL suction hose - 10 bar - 127x148 mm 5 " 10 bar 30 bar 720 mm
0112097150 6" ASPIROIL suction hose - 10 bar - 152x174 mm 6 " 10 bar 30 bar 980 mm
Length
40
Pressure burst min.
30
Pressure max.
10
Temperature max.
+100
Temperature min.
-30
Vacuum max.
0.9
