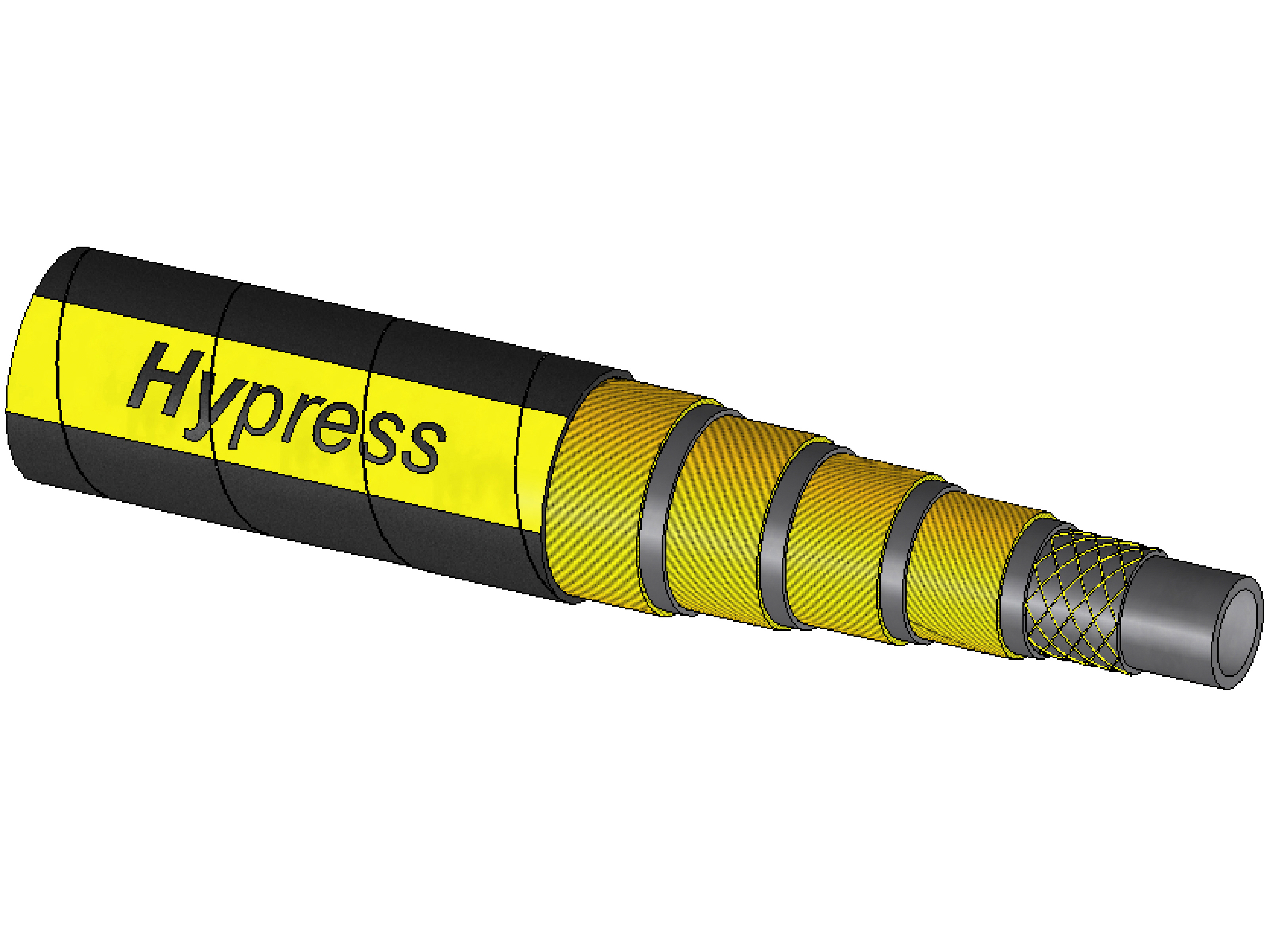

TFD4SP hydraulic hoses

TFD4SP hydraulic hoses

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Hose size Pressure max. Hose type Bend radius
TFD4SP04 1/4" Hydraulic hose TFD - 450 bar - 4SP 1/4 " 450 bar TFD4SP 150 mm
TFD4SP06 3/8" Hydraulic hose TFD - 445 bar - 4SP 3/8 " 445 bar TFD4SP 180 mm
TFD4SP08 1/2" Hydraulic hose TFD - 415 bar - 4SP 1/2 " 415 bar TFD4SP 230 mm
TFD4SP16 1" Hydraulic hose TFD - 280 bar - 4SP 1 " 280 bar TFD4SP 340 mm
TFD4SP20 1.1/4" Hydraulic hose TFD - 210 bar - 4SP 1.1/4 " 210 bar TFD4SP 460 mm
TFD4SP32 2" Hydraulic hose TFD - 165 bar - 4SP 2 " 172 bar TFD4SP 660 mm
Brand Name
I.M.M Hydraulics
Cover
Synthetic rubber
Flameresistant
Yes
Hose type
TFD4SP
Hoseapprovals
BV, CCS, DNV, GL, KR, LLOYD, MED, MSHA, NKK
Reinforcement
4 layer steel wire braid
Standard EN
EN 856 4SP
Standard ISO
ISO 3862 4SP
Temperature intermittent max.
+120
Temperature max.
+100
Temperature min.
-40
Tube
Synthetic rubber
