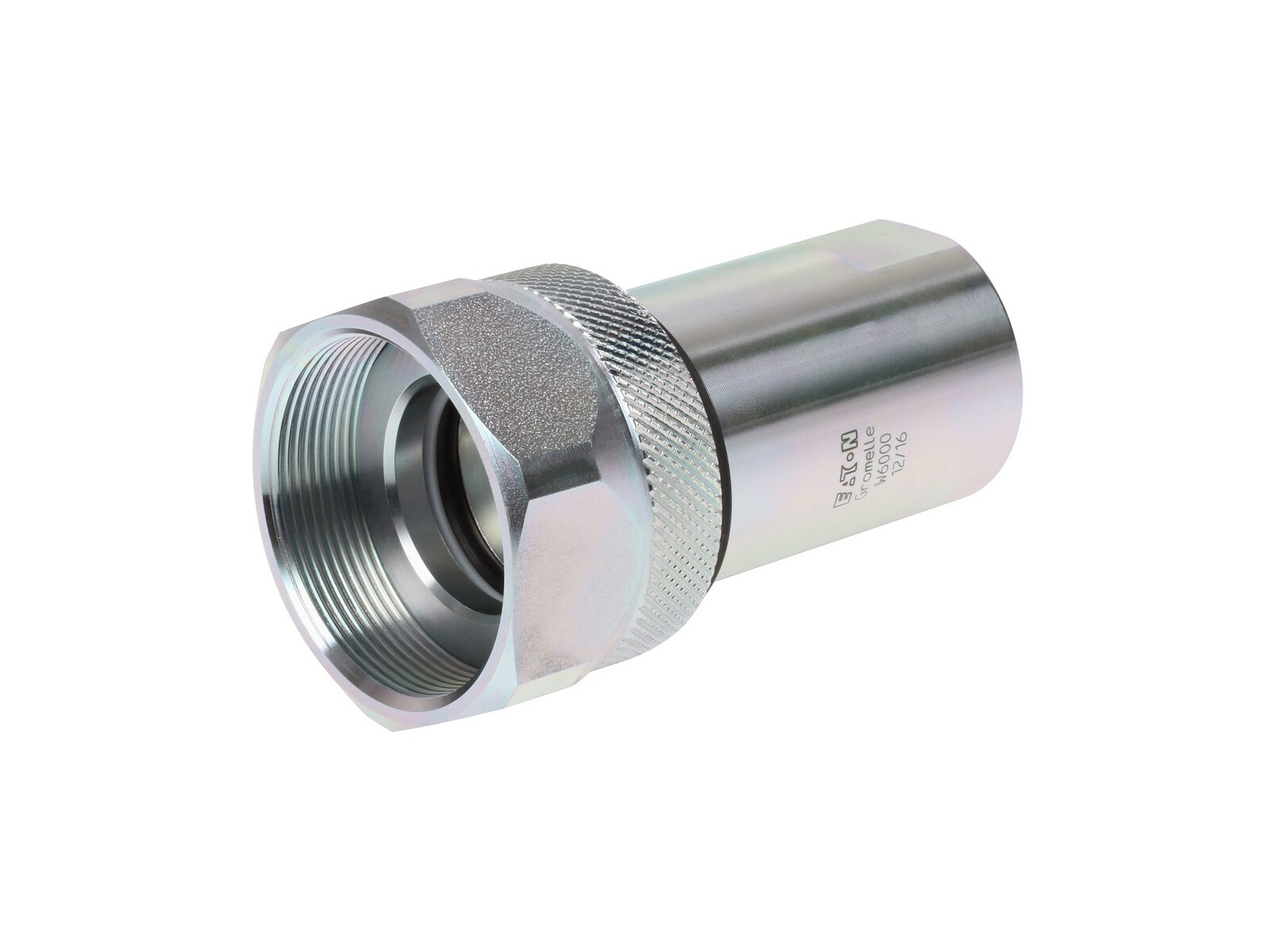

Screw coupling WA - female DN10 - G3/8" - 750 bar

Quick-coupling of screw-type.

Standard DIN-srew-coupling mostly used on mobile cranes and for industrial applications.

Can be hand-assembled at systempressures up to approx. 50 bar.

The WA6000-type is primarily used within the off-shore industri, typical up to 750 bar.
The WA56000-type is often used as a hydralic-tool coupling up to 750 bar.

Artikelnummer:
WA0602700

Förpackningsstorlek:
0 pcs

Minsta beställningskvantitet:
1 pcs
Gromelle dust plug M30x1,5 alu
Varenummer: WD0612700
Brand Name
Danfoss

DN
10 mm

Dimension B
65 mm

Dimension D
38 mm

Dimension X1
23 mm

Dimension X2
35 mm

Flow rate nominal LMin
17 lpm

Material
Steel

Model code
WA0602700

Pressure max.
750 bar

Sealing material
NBR

Size
3/8 "

Surface treatment
Zinc coating (CR III)

Temperature max.
+100 °C

Temperature min.
-20 °C

Thread inner
G 3/8 BSP
Pakke str.
0 pcs

Stregkode
5704295377223

Brutto vægt
0,22 Kg

Netto vægt
0,22 Kg

Oprindelsesland
FRA

Intrastat varekode
84812010

Quick-coupling of screw-type.

Standard DIN-srew-coupling mostly used on mobile cranes and for industrial applications.

Can be hand-assembled at systempressures up to approx. 50 bar.

The WA6000-type is primarily used within the off-shore industri, typical up to 750 bar.
The WA56000-type is often used as a hydralic-tool coupling up to 750 bar.
