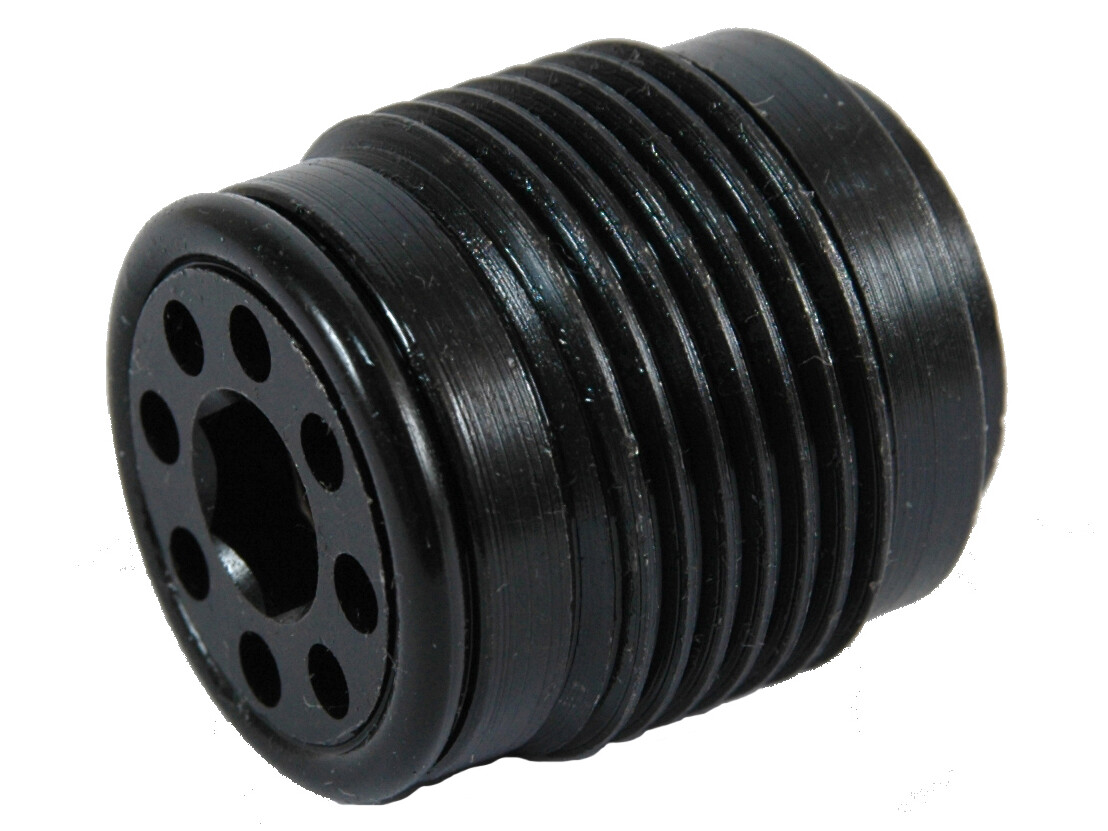

3/4 reversible check valve

The Insert type check valve ensure a one-way flow direction and prevent backflow in hydraulic systems. When pressure at 1 rises above the spring bias pressure, the poppet is lifted, and flow are allowed from 1 to 2. The valve is closed (checked) from 2 to 1.

Precision machining allow virtually leak-free performance in the checked condition. These valves have to be mounted as indicated in the datasheet.

Artikelnummer:
VUL1.G34

Förpackningsstorlek:
0 pcs

Minsta beställningskvantitet:
1 pcs
Seal kit for OMT ser. 1 + 2
Varenummer: 151B0113
Brand Name
Hydraspecma

Contamination level max.
19/17/14 - ISO 4406

Flow rate nominal LMin
80 lpm

Hexagon
8 mm

Material
Steel

Model code
0TU401000400000

Oil viscocity recommended
5 - 800 cSt

Pressure max.
350 bar

Pressure opening
0.3 bar

Sealing material
NBR

Temperature max.
+100 °C

Temperature min.
-30 °C

Thread
G 3/4 BSP
Pakke str.
0 pcs

Stregkode
5704295339955

Brutto vægt
0,07 Kg

Netto vægt
0,07 Kg

Oprindelsesland
ITA

Intrastat varekode
84812010

The Insert type check valve ensure a one-way flow direction and prevent backflow in hydraulic systems. When pressure at 1 rises above the spring bias pressure, the poppet is lifted, and flow are allowed from 1 to 2. The valve is closed (checked) from 2 to 1.

Precision machining allow virtually leak-free performance in the checked condition. These valves have to be mounted as indicated in the datasheet.
