End plug - 24° inner cone - for M20S
End plug - 24° inner cone - for M20S
Partnumber:
VSCHK20S
Package size:
0 pcs
Min. order quantity is:
1 pcs
Brand Name
Stauff
Corrosion resistance
1200 hours salt spray DIN EN ISO 9227
Diameter pipe
20 mm

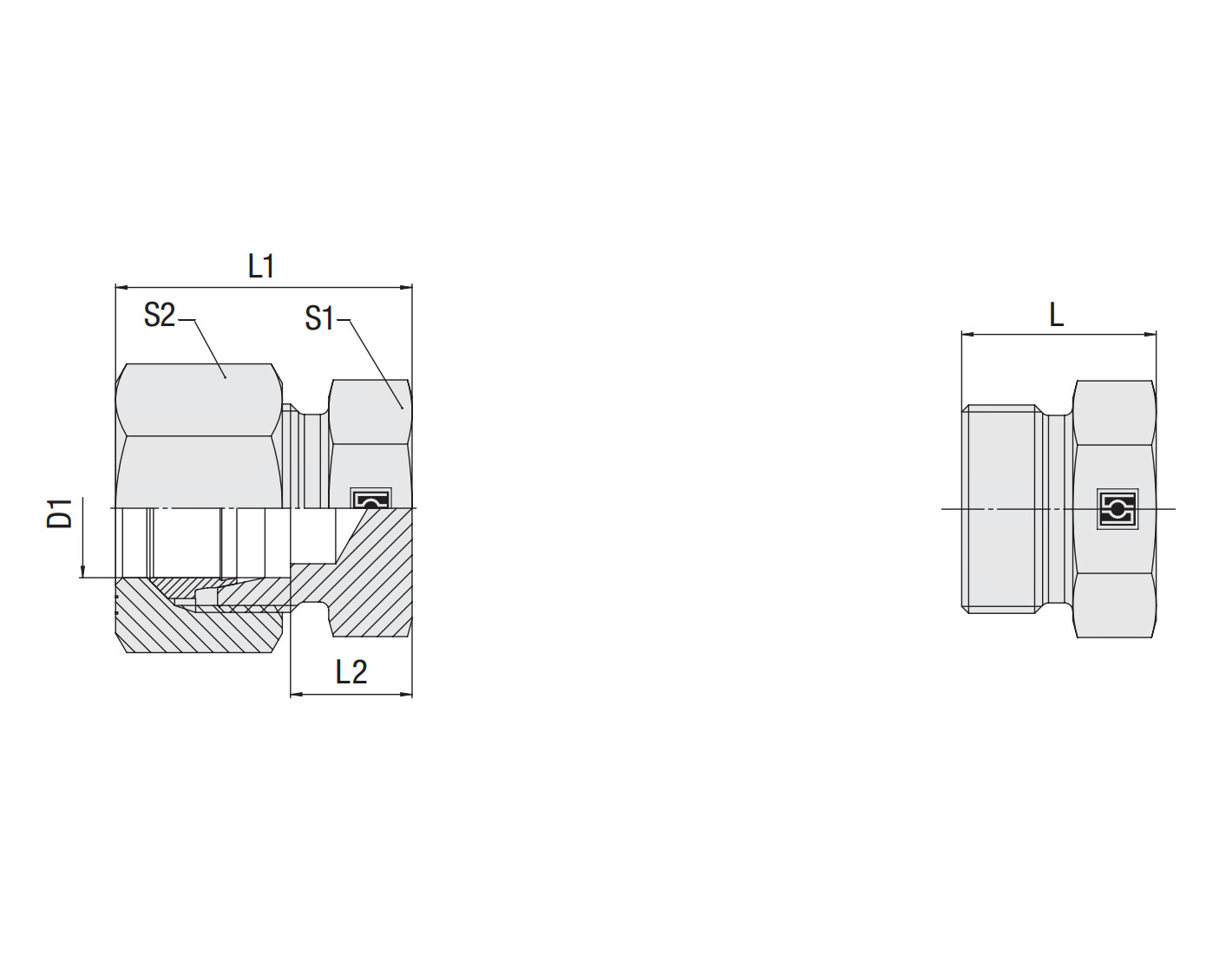

Dimension D1
20 mm
Dimension L
28 mm
Dimension L1
39 mm
Dimension L2
17.5 mm
Dimension S1
32 mm
Dimension S2
36 mm
Material
Steel
Model code
FI-VSK-20S-W3
O-ring
56,75X3,53 mm
Pressure max.
400 bar
REACH compliant
Yes
RoHs compliant
Yes
Safety factor
4
Series
S
Surface treatment
Zinc-Nickel plated
Temperature max.
+120 °C
Temperature min.
-40 °C
Thread outer metric
M30x2
Package size
0 pcs
Barcode
5704295287591
Gross weight
Kg
Net weight
Kg
Country of origin
DEU
Intrastat code
73071110
End plug - 24° inner cone - for M20S
